Current Assembly and Current Component

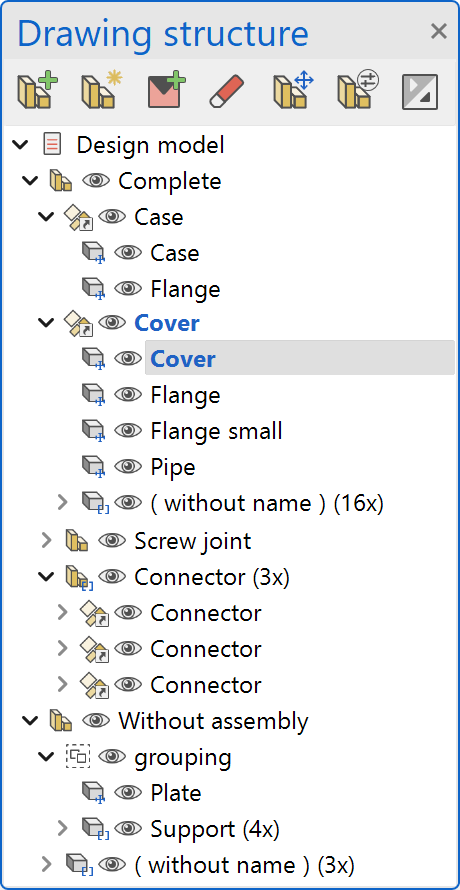

The blue entries show the current component / assembly. The current component denotes the model which is currently being used for the drawing and is always located in the current assembly. If a component of another assembly is activated, the associated assembly is also activated.
drawing-manager

Components that do not belong to any assembly are grouped together in the manager under the “assembly” name, "Without assembly".

Note

Components and assemblies from external references are only shown and cannot be activated.
