Functionality in the Manager

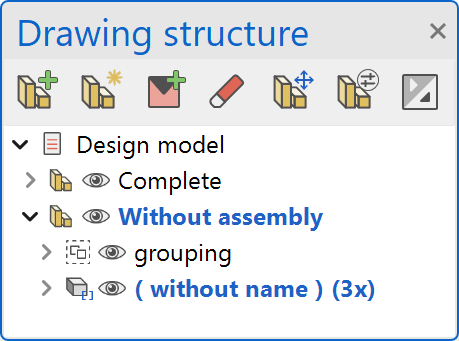

Functions in the menu bar

drawing-manager-header

New assembly

ass_ext_add_
Definition of an empty (sub-) assembly within the current assembly. If no assembly is active, a new main assembly is created in the drawing. New assemblies are always attached under the current assembly. The only exception: If "Without assembly" is active, then new assemblies are inserted in the top level.

Define assembly

ass_ext_define_
The selected objects in the manager are combined to form a new assembly. The selected objects must be from the same assembly.

New model

pat_new_
Inserts a new model into the current assembly. New models are always fall under the current assembly.

Delete

delete_
The delete function refers to the current selection. It does not matter how the delete function was initiated (toolbar, function bar in the manager, context menu or  Del  key).

Load external references

ass_ext_locate_
Inserts a drawing as an external reference.

Manage external references

ass_ext_params_
Opens a dialog in which the external references can be managed.

Expand all/Collapse all

New · 16 R1 · Improvements

tree_arrow_open_close_all_
Using this switch all elements in the assembly manager can be expanded or collapsed at once.

Modify assembly

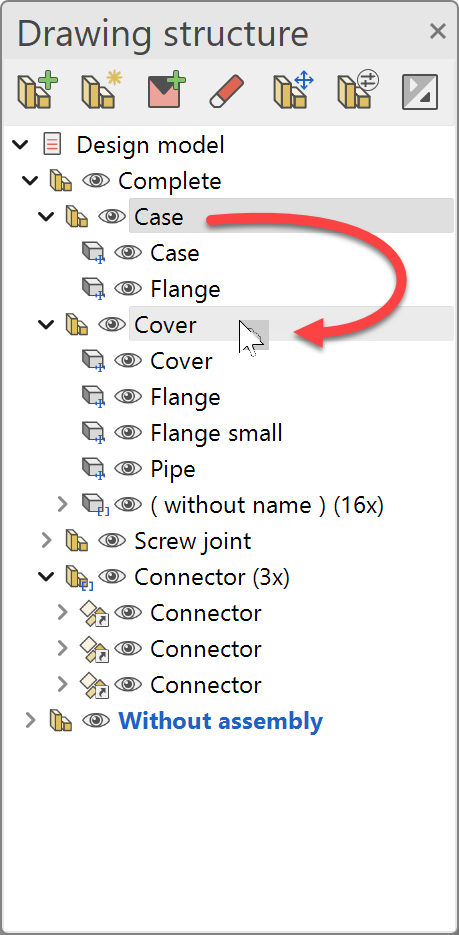

Entries can be moved within the manager using drag & drop.
drawing-manager-move-entry

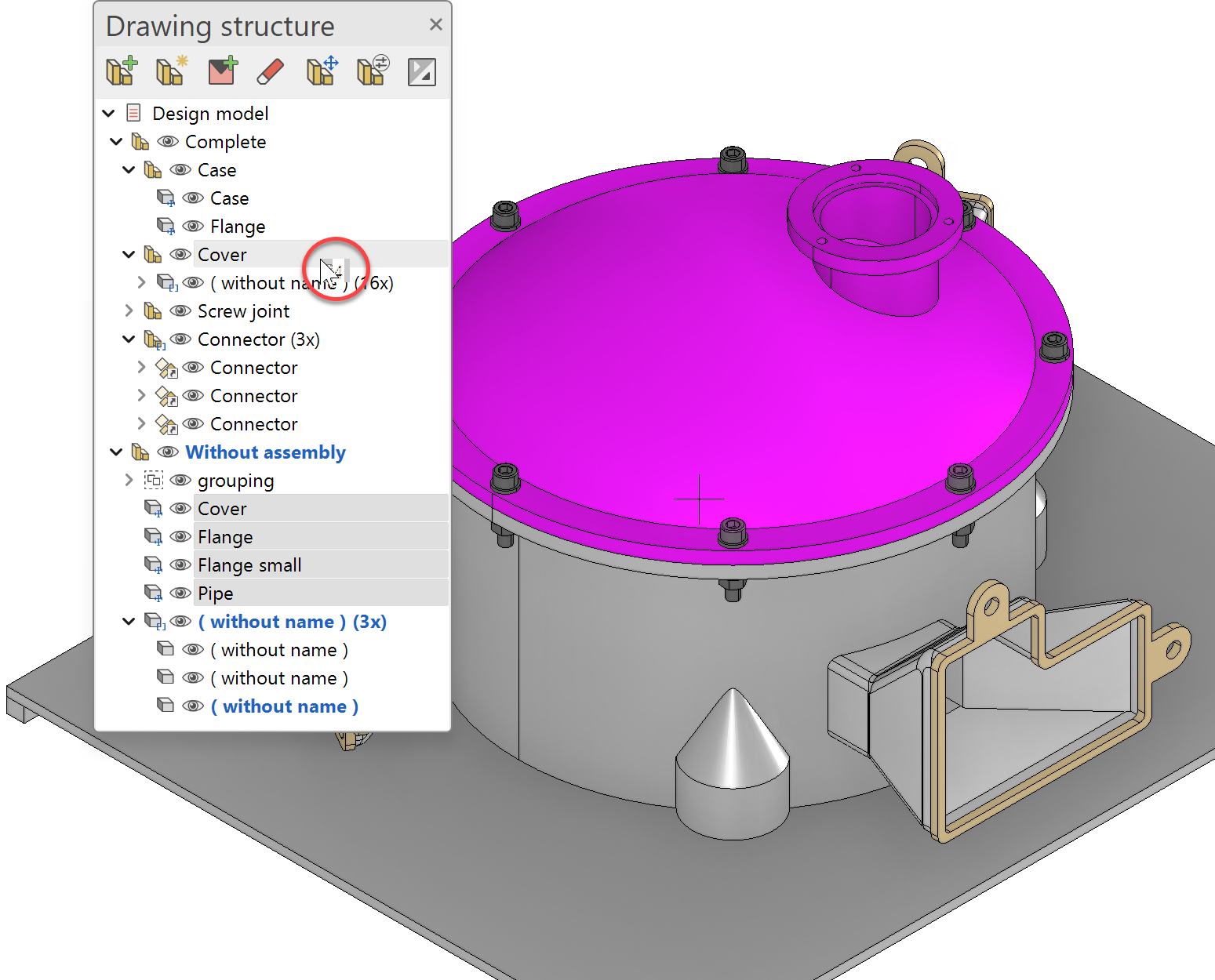

Models can be added to the assembly by selecting them in the drawing and dragging the assembly onto the selected model in the graphics window.
drawing-manager-add-model

Rename

The assembly is renamed using the context menu, double-clicking on the name or with  F2.

Tip

The name of the assembly is saved in the Attribute "name" so that it can be evaluated in the bill of material.

Visibility

The visibility of the assemblies and components can be controlled using the eye symbol.
There are 3 states of visibility:

tree_visible_on_ Component / assembly is visible
tree_visible_gray_ Parts of the assembly are visible
tree_visible_off_ Component / assembly is invisible

An assembly filter is set using the visibility, provided that assemblies are completely assembled.

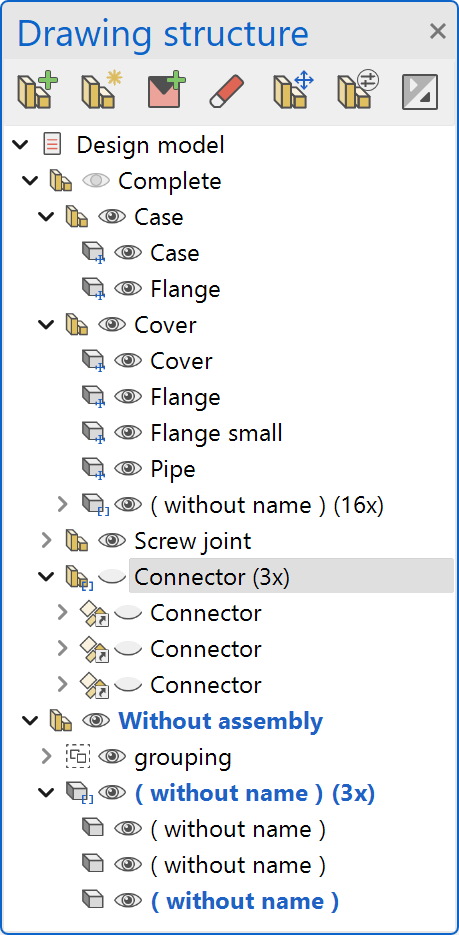

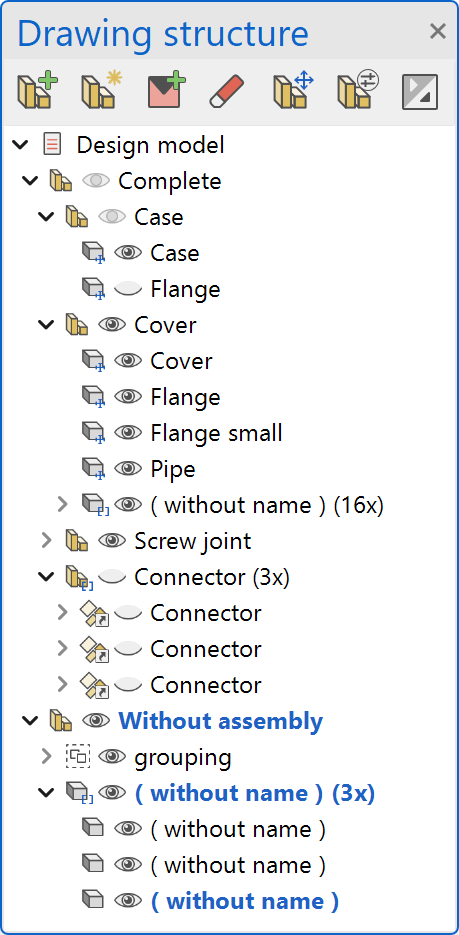

Visibility with assembly filter Visibility without assembly filter
visibility-with-filter visibility-without-filter
Tip

The assembly filter is used in views to determine which components are displayed in the view. If a view was created with an assembly filter, subsequent changes to the assembly are adopted in the view.

Selection

If an entry (assembly / component) is selected in the manager, the corresponding objects are also selected in the drawing. The selection is then available for further actions (delete, manipulate).

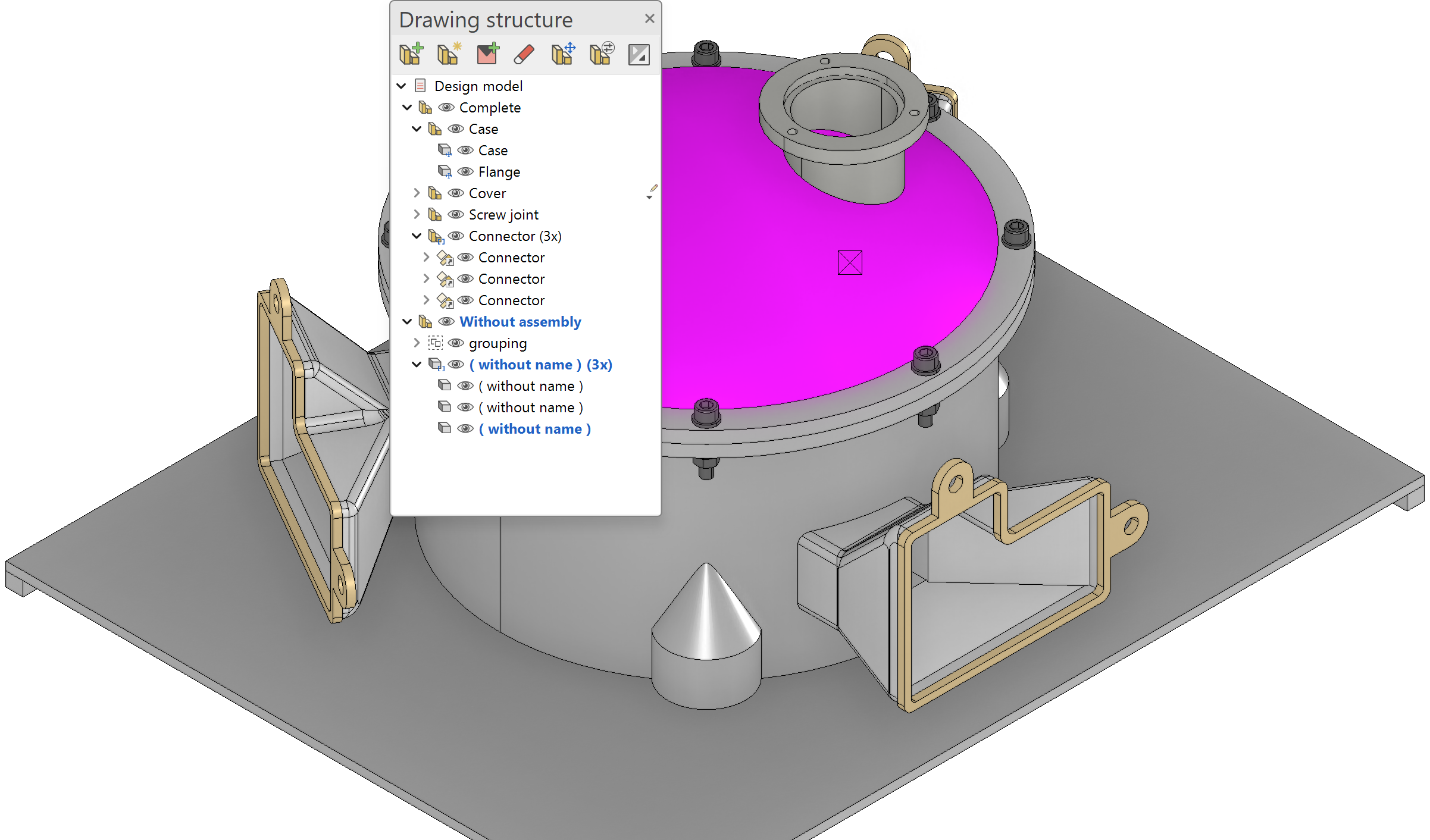

If you select a component in the drawing, the corresponding entry is also selected in the manager. If the selected object is located in the manager under a minimised entry, a hint symbol appears next to the assembly. With a click on the hint symbol tree_goto_entry_, the manager jumps to the selected entry.
part-selection-via-manager

Functionality in the context menus

The entries shown in the context menu depend on the selection in the manager. Here are the most important functions in the context menu (special functions are described in the corresponding chapter):

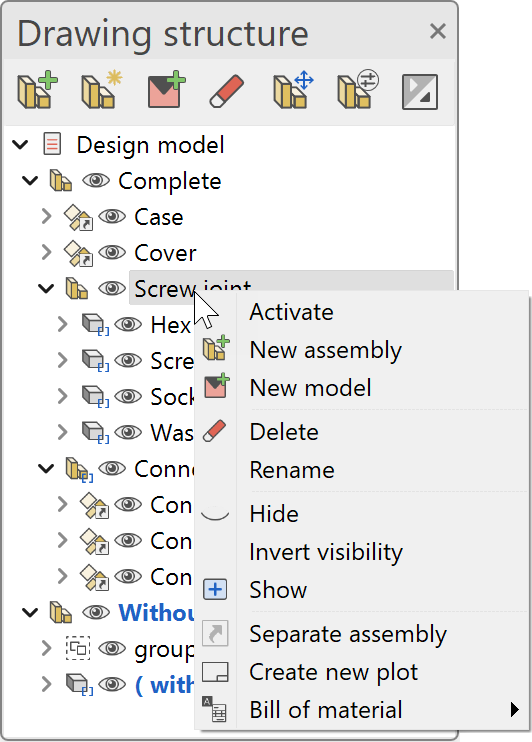

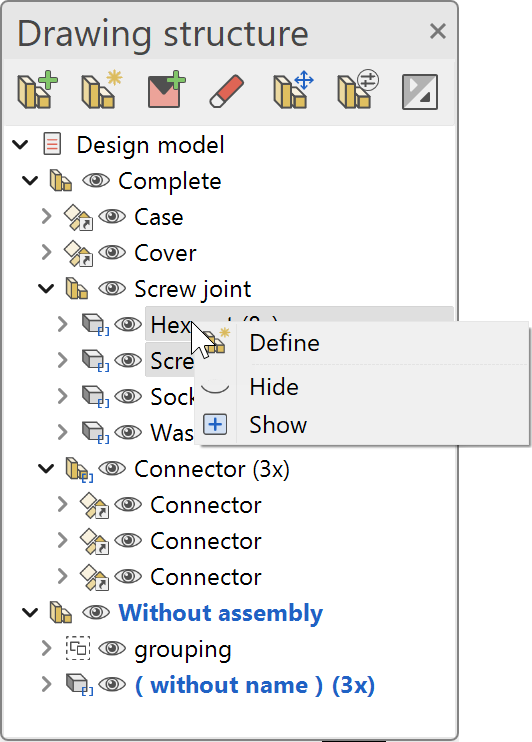

Single selection Multiple selection
context-menu-single-selection context-menu-multiple-selections

Activate

Activates a component / assembly

New assembly

ass_ext_add_
Creates a new assembly under the selected entry

New model

pat_new_
Creates a new model under the selected entry

Delete

delete_
Deletes the selected entry
Multiple selection is possible.

Rename

Renames the selected entry

Hide / Show

tree_visible_off_ / tree_visible_on_ Toggle visibility
Multiple selection is possible.

Show

redraw_plus_
Sets the selected entries visible
Multiple selection is possible.

Separate assembly

tree_storey_ref_
This function only applies to assemblies. It stores an assembly as an external reference.

Create new plot

view_type_plot_
This function can be used to create a new plot view of all the selected entries.

Tip

If only one assembly is selected, the name of the assembly is suggested as the name for the plot view.

Bill of material

bom_
VA bill of material is generated from the selected assemblies. (See Bill of material > Assemblies chapter)

Functionality in the view

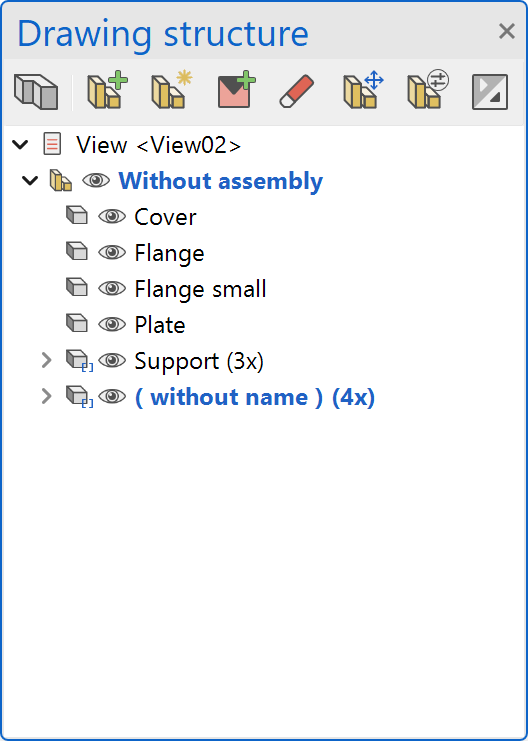

In views where 2D data is displayed (view, section, detail), the functionality of the manager is limited. The toggle switch view_type_model_ in the menu bar shows either the structure of the view data or the model data.
2d-manager-view 3d-manager-view

Change view filter

The creation filter of a view can be changed quickly and easily afterwards using the filter symbol filter_. After pressing the button, the model view is switched and the filter in the view can be adjusted using the visibility icons in the manager. The process is completed by pressing the confirm filter icon filter_upd_ in the manager, which updates and displays the view. The process can be cancelled with the cancel icon filter_abort_ and the view filter remains unchanged.

Assembly copies

If complete assemblies are copied or the same external reference is loaded several times, copies of assemblies are created.

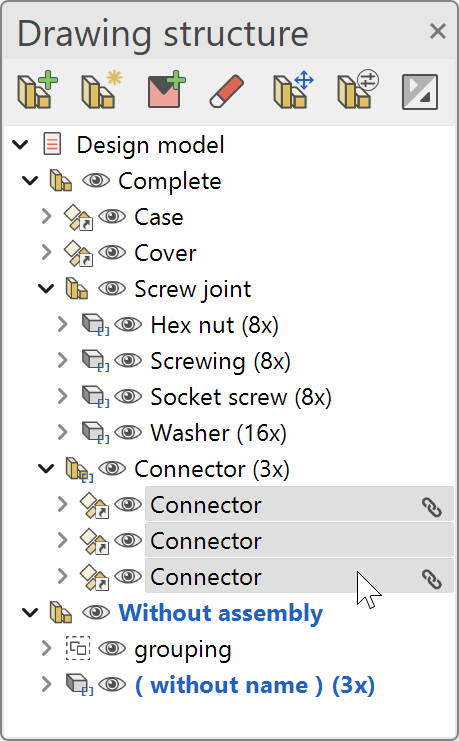

If the cursor is moved over an assembly, a link symbol appears. This can be used to determine which assemblies are linked as a copy. The tooltip indicates whether it is the original or the copy.
assembly-copies
If there are copies of an assembly, various actions are carried out for both the original and the copies. The following actions are affected:

  • Rename
  • Separate / integrate
  • Loading / unloading

If attributes are changed in an assembly or a component, these changes are also passed on to the copies. It does not matter whether the attribute is changed in the copy or in the original.

Dissolve copies from the group

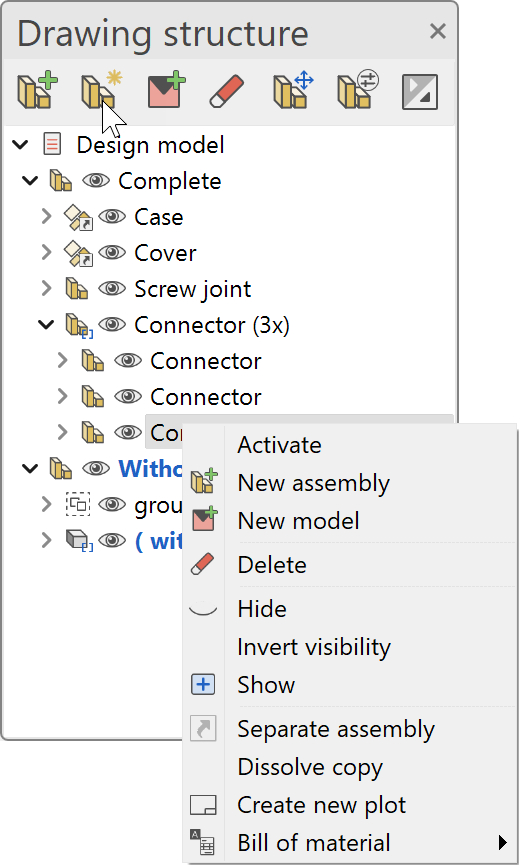

To remove an assembly copy from a group of copies, there is the function Dissolve copy in the context menu.
remove-assembly-copy
This function, removes an assembly from the copy group and a new, unique name (e.g. "Connection 1") is generated. If there are several copies, these remain in the copy group.
A copy is also dissolved if it is activated and a new assembly or part is inserted into it.
