Rectangular Base Plates¶

Rectangular plates with 4 mounting holes¶

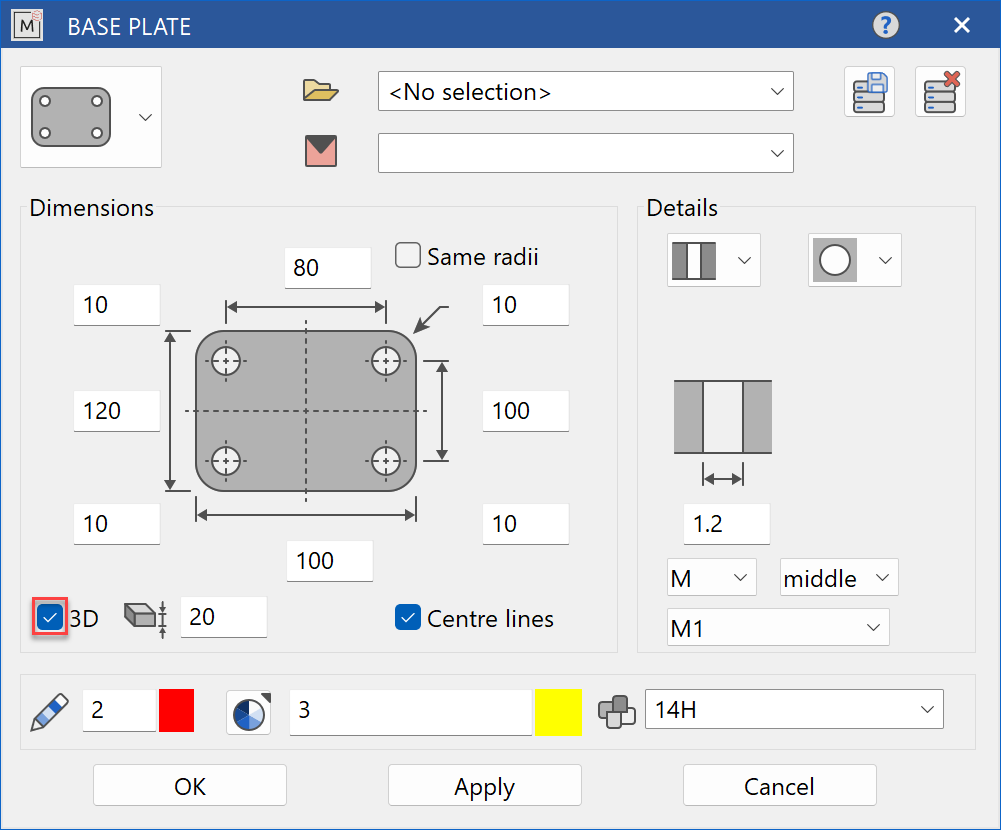

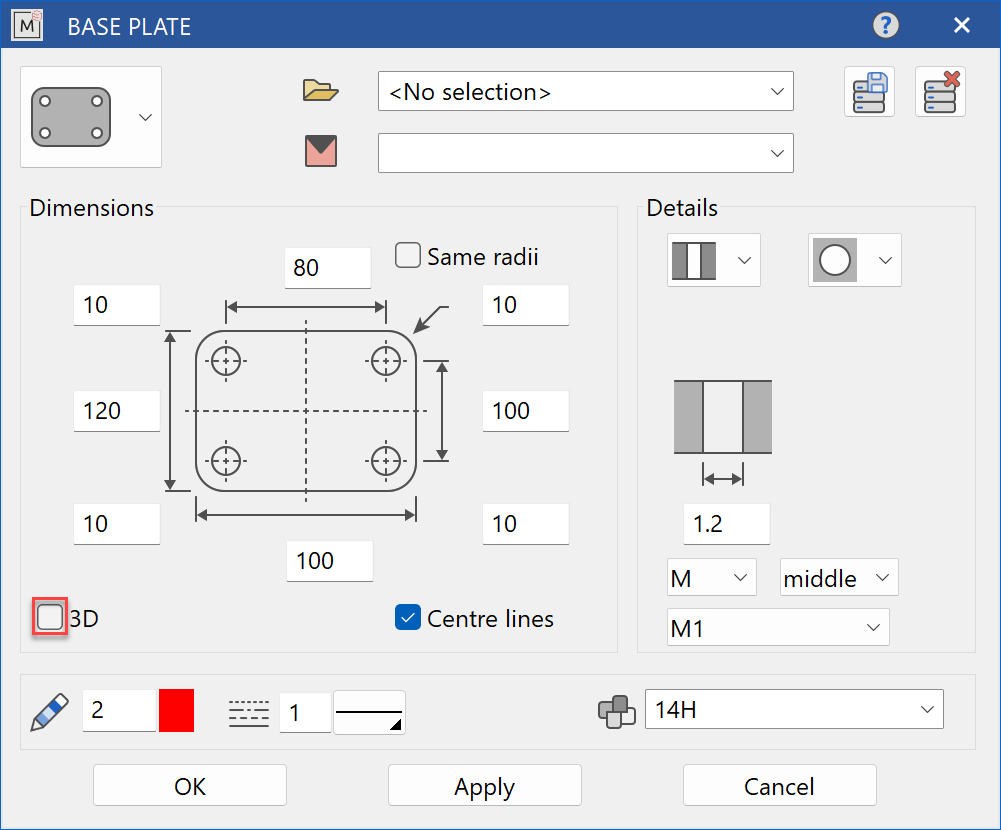

Rectangular plates with 4 mounting holes parameters¶

sheet_params_

Decide whether the base plate should be created in 2D or in 3D.

Dimensions¶

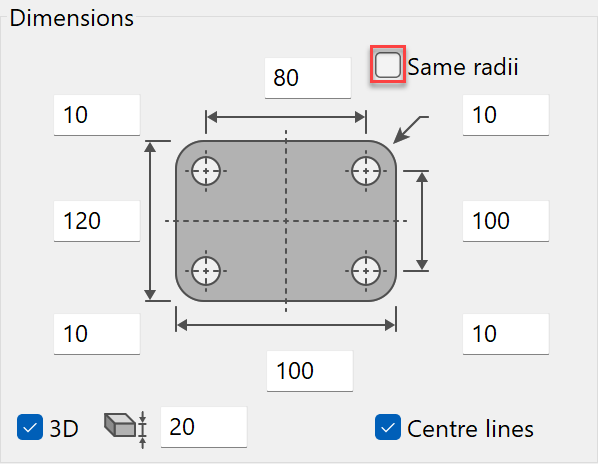

Plate dimensions¶

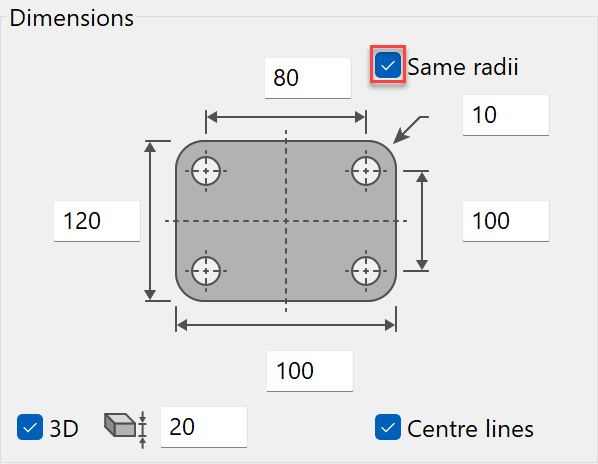

rect-plate-4-holes-dimensions-equal
Rounding the same for all corners

Specify rounding for all corners individually

Length and width of the base plate¶

rect-plate-4-holes-base-dimensions
1. Width of the base plate
2. Length of the base plate

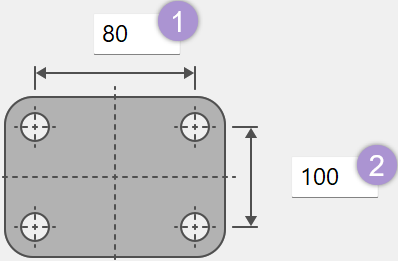

Hole spacing of the base plate¶

rect-plate-4-holes-hole-dimensions
1. Hole spacing on the long side (symmetrical to the centre)
2. Hole spacing on the broad side (symmetrical to the centre)

Thickness¶

thickness_
Thickness of the base plate with 3D representation

Centre lines¶

centre-lines-checkmark
Ticking the CENTRE LINE checkmark determines whether the plate is drawn with or without a centre line. The mounting holes are always shown with a centre line.

Input values¶

For input of the parameters for the base plate mounting holes, see Inputs for all base plates

Rectangular plates with 2 mounting holes¶

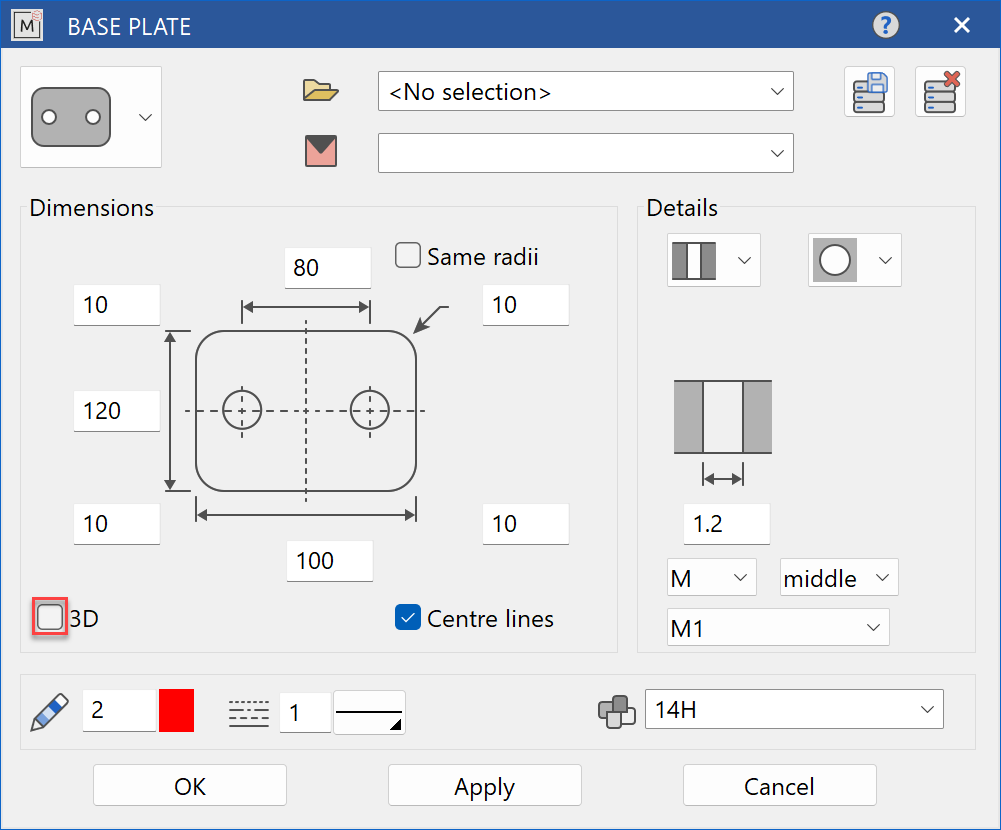

Rectangular plates with 2 mounting holes parameters¶

sheet_params_

Decide whether the base plate should be created in 2D or in 3D.

Dimensions¶

Plate dimensions¶

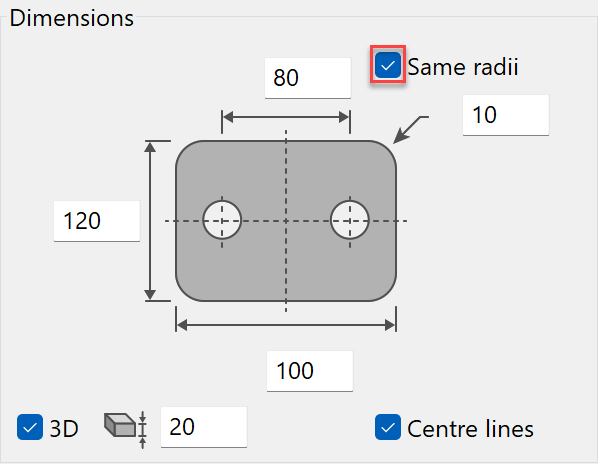

rect-plate-2-holes-dimensions-equal
Rounding the same for all corners

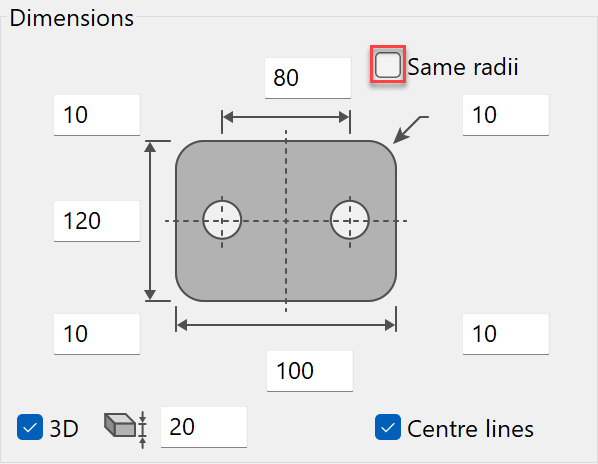

Specify rounding for all corners individually

Length and width of the base plate¶

rect-plate-2-holes-base-dimensions
1. Width of the base plate
2. Length of the base plate

Hole spacing of the base plate¶

rect-plate-2-holes-hole-dimensions
Hole spacing (symmetrical to the centre)

Thickness¶

thickness_
Thickness of the base plate with 3D representation

Centre lines¶

centre-lines-checkmark
Ticking the CENTRE LINE checkmark determines whether the plate is drawn with or without a centre line. The mounting holes are always shown with a centre line.

Input values¶

For input of the parameters for the base plate mounting holes, see Inputs for all base plates

Rectangular plates with a centric mounting hole¶

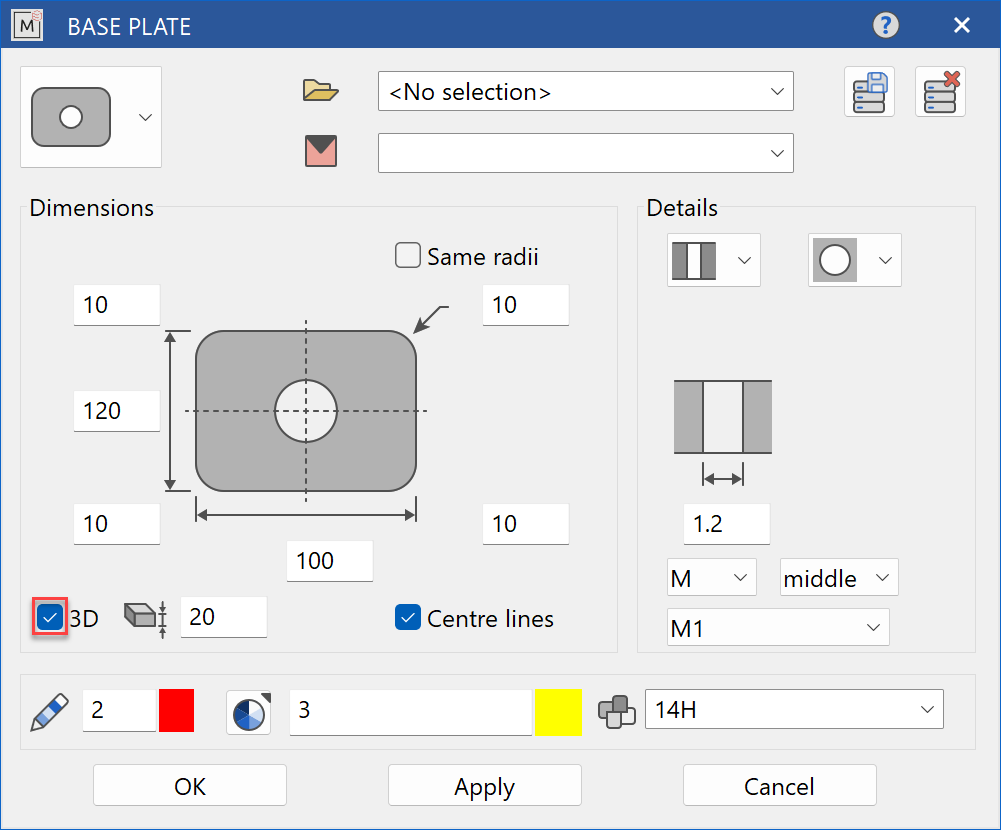

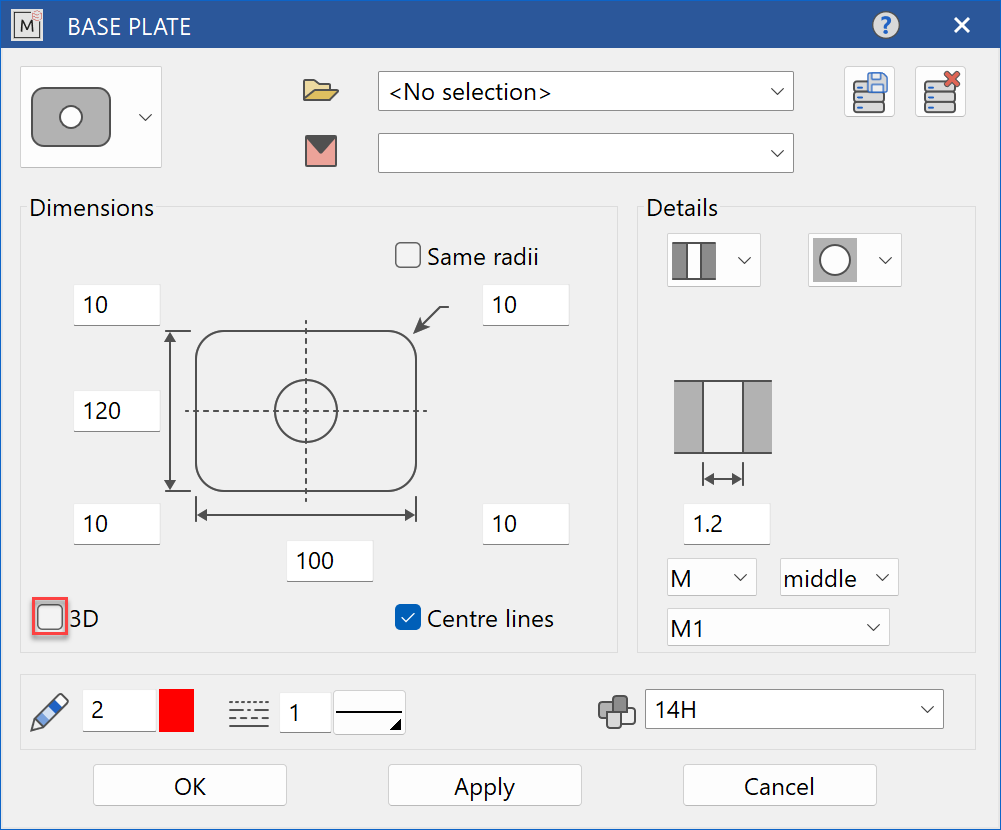

Rectangular plates with a centric mounting hole parameters¶

sheet_params_

Decide whether the base plate should be created in 2D or in 3D.

Dimensions¶

Plate dimensions¶

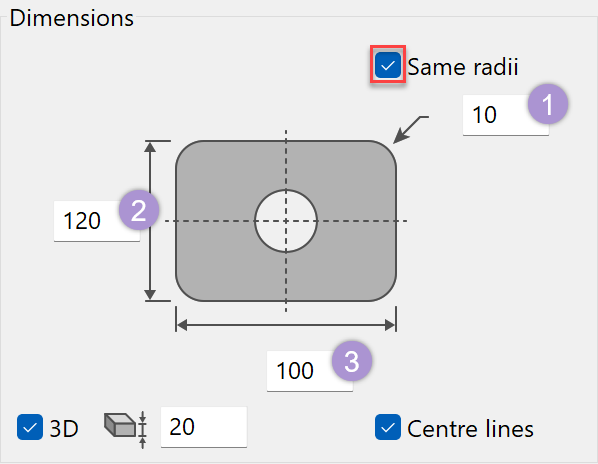

rect-plate-centre-hole-dimensions-equal
1. Rounding the same for all corners
2. Width of the base plate
3. Length of the base plate

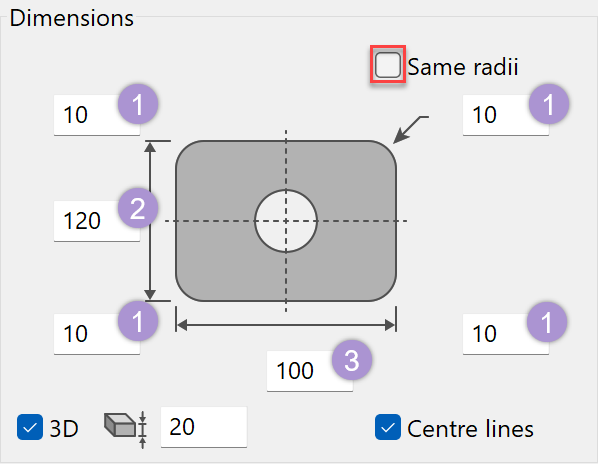

rect-plate-centre-hole-dimensions-differing
Specify rounding for all corners individually
1. Width of the base plate
2. Length of the base plate

Thickness¶

thickness_
Thickness of the base plate with 3D representation

Centre lines¶

centre-lines-checkmark
Ticking the CENTRE LINE checkmark determines whether the plate is drawn with or without a centre line. The mounting holes are always shown with a centre line.

Input values¶

For input of the parameters for the base plate mounting holes, see Inputs for all base plates

Rectangular plates without mounting holes¶

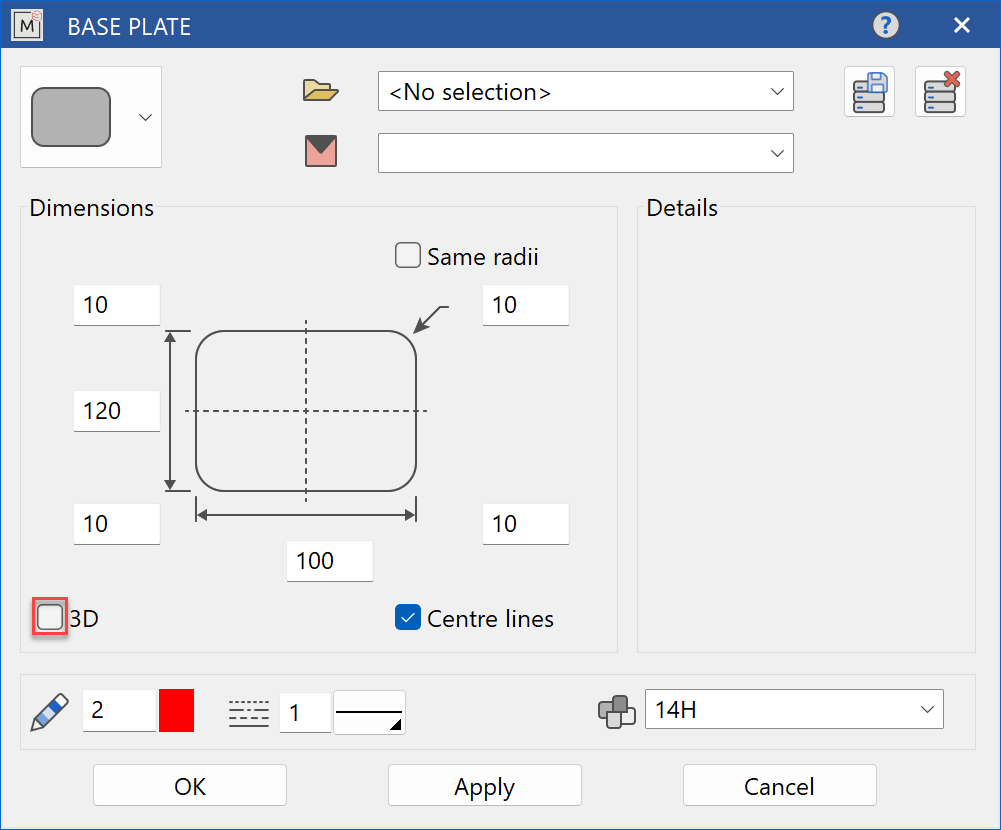

Rectangular plates without mounting holes parameters¶

sheet_params_

Decide whether the base plate should be created in 2D or in 3D.

Dimensions¶

Plate dimensions¶

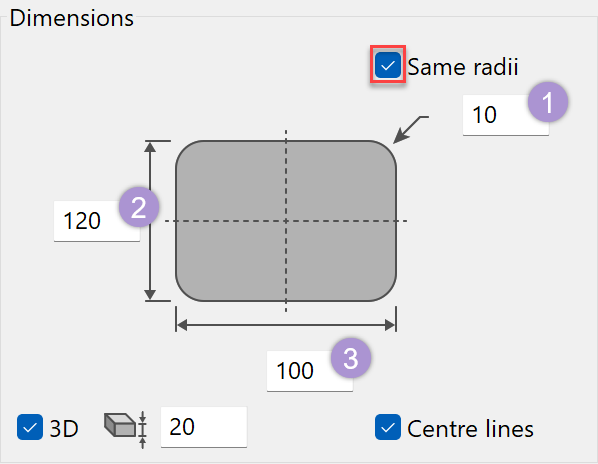

rect-plate-no-holes-dimensions-equal
1. Rounding the same for all corners
2. Width of the base plate
3. Length of the base plate

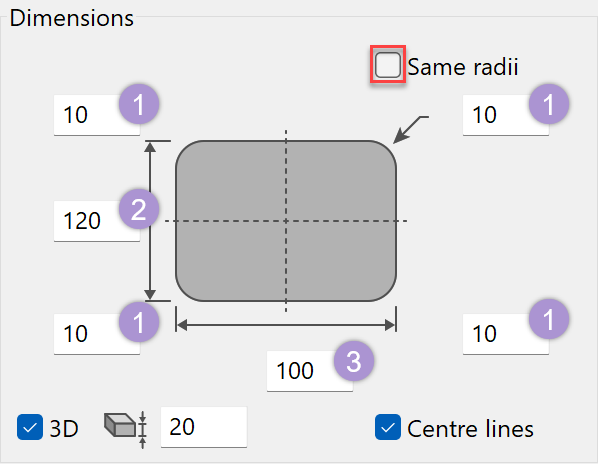

rect-plate-no-holes-dimensions-differing
Specify rounding for all corners individually
1. Width of the base plate
2. Length of the base plate

Thickness¶

thickness_
Thickness of the base plate with 3D representation

Centre lines¶

centre-lines-checkmark
Ticking the CENTRE LINE checkmark determines whether the plate is drawn with or without a centre line. The mounting holes are always shown with a centre line.

Input values¶

For input of the parameters for the base plate mounting holes, see Inputs for all base plates
