Round Base Plates¶

Round covers and flanges without centric drilling¶

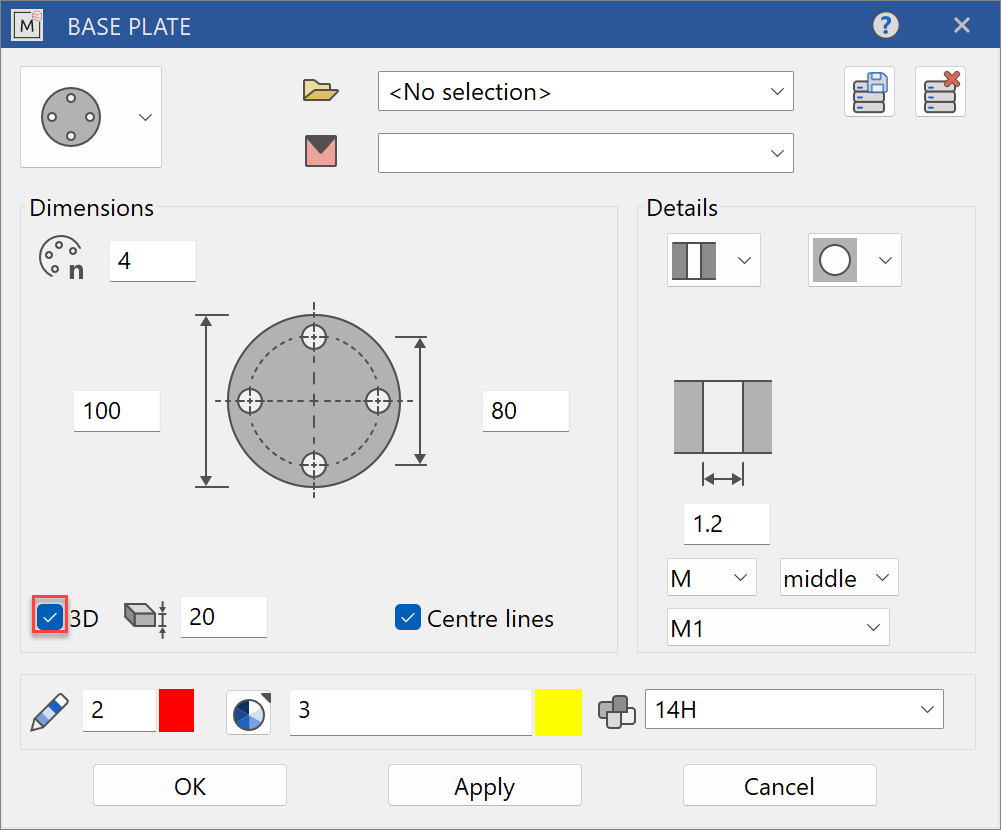

Round covers and flanges without centric drilling parameters¶

sheet_params_

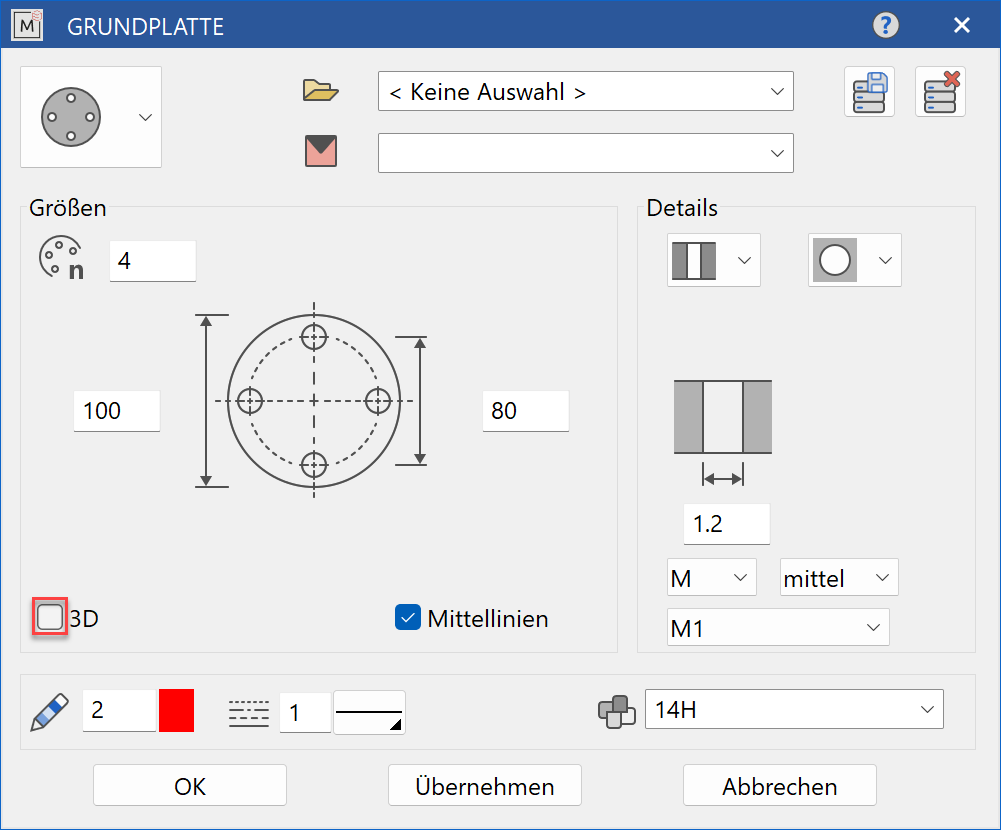

Decide whether the base plate should be created in 2D or in 3D.

Dimensions¶

Plate dimensions¶

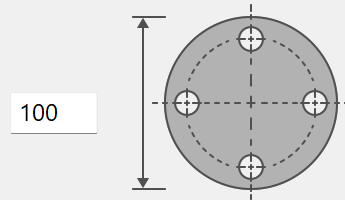

circle-plate-without-centric-drilling-outside-diameter
Outside diameter of the round base plate

Hole spacing of the base plate¶

circle-plate-without-centric-drilling-holes-diameter
Hole spacing of the round base plate

Thickness¶

thickness_
Thickness of the round base plate with 3D representation

Number of holes¶

sheet_num_holes_
The mounting holes are evenly distributed on the circle diameter. When 3D creation is active, the number of holes from 2 to 8 makes sense; if the number of holes is larger, we recommend defining a 2D contour and using the FREE PLATE SHAPE variant to create the base plate.

Centre lines¶

centre-lines-checkmark
Ticking the CENTRE LINE checkmark determines whether the plate is drawn with or without a centre line. The mounting holes are always shown with a centre line.

Input values¶

For input of the parameters for the base plate mounting holes, see Inputs for all base plates

Round covers and flanges with centric drilling¶

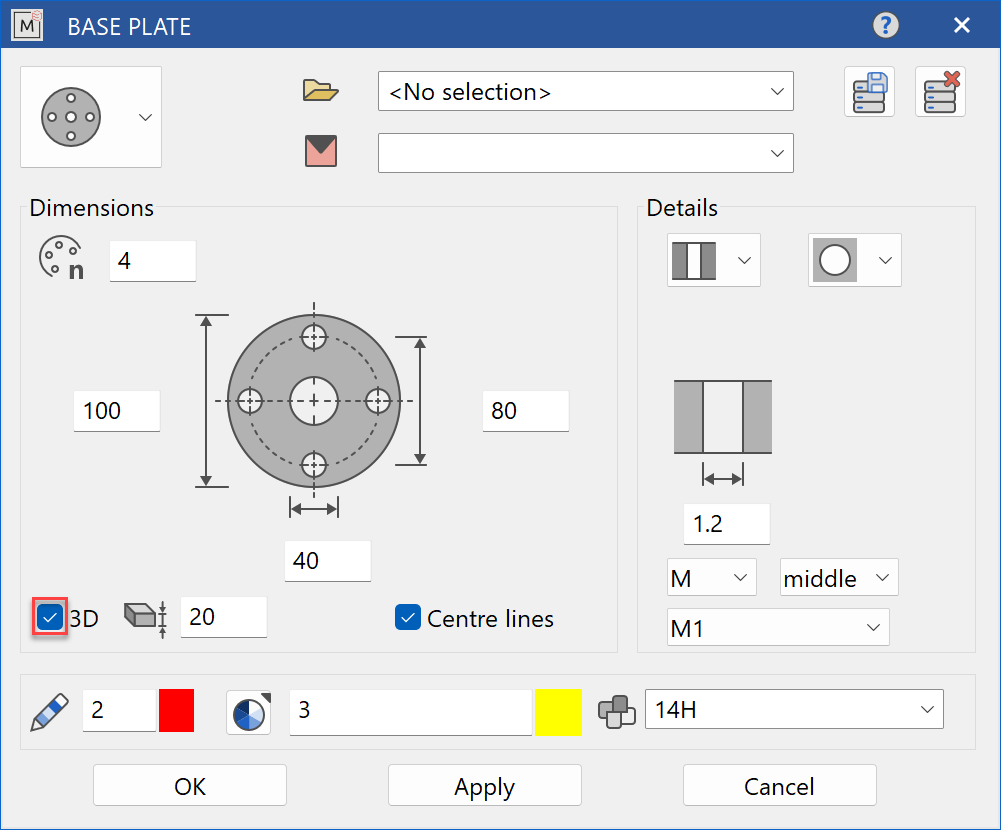

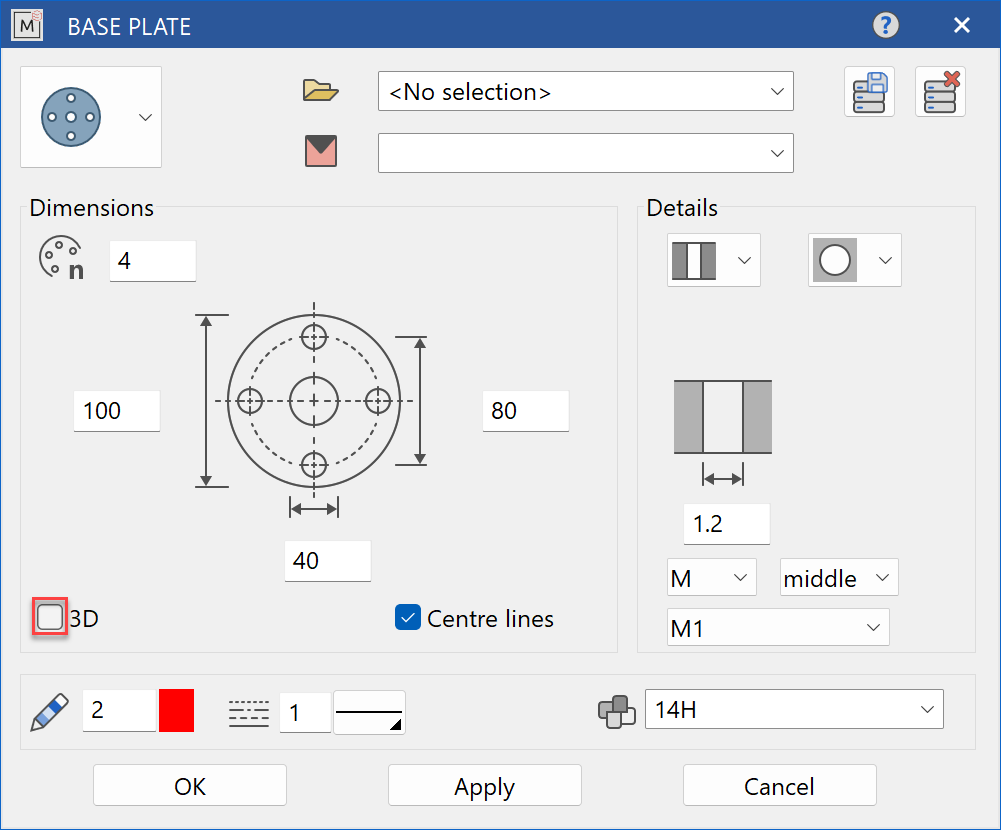

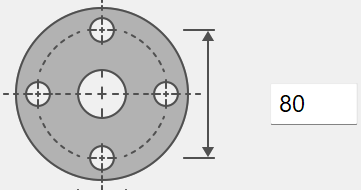

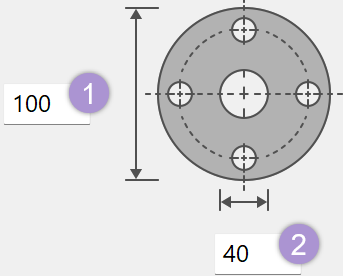

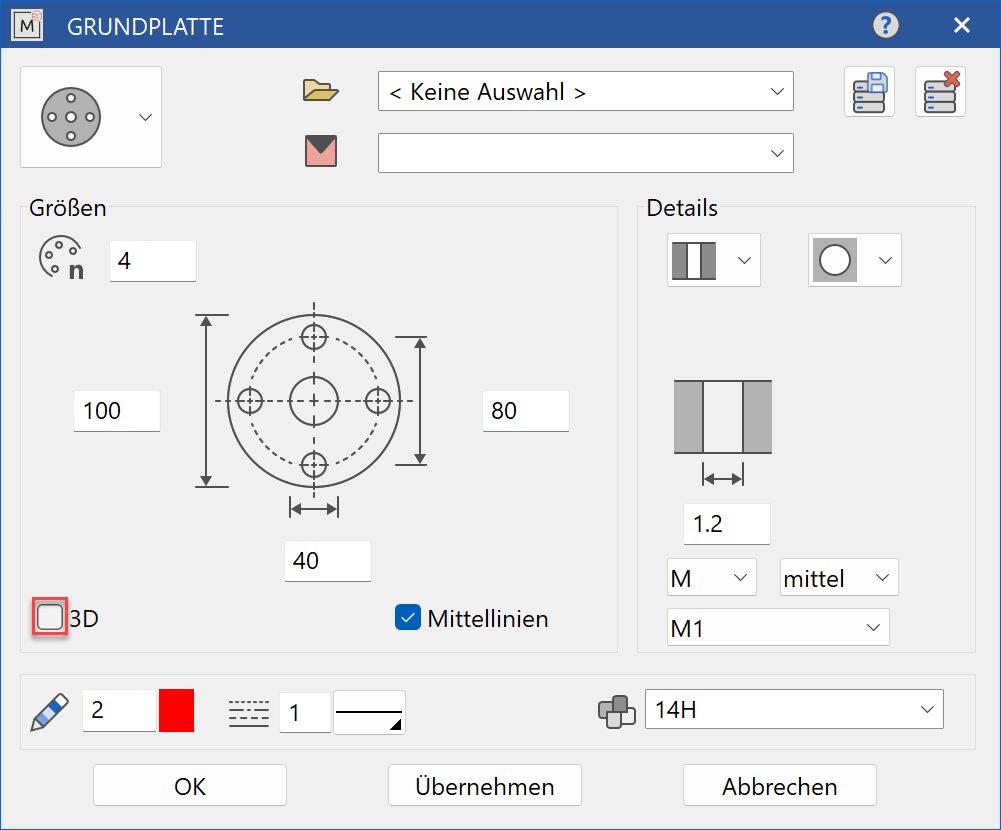

Round covers and flanges with centric drilling parameters¶
