Elbow Segment¶

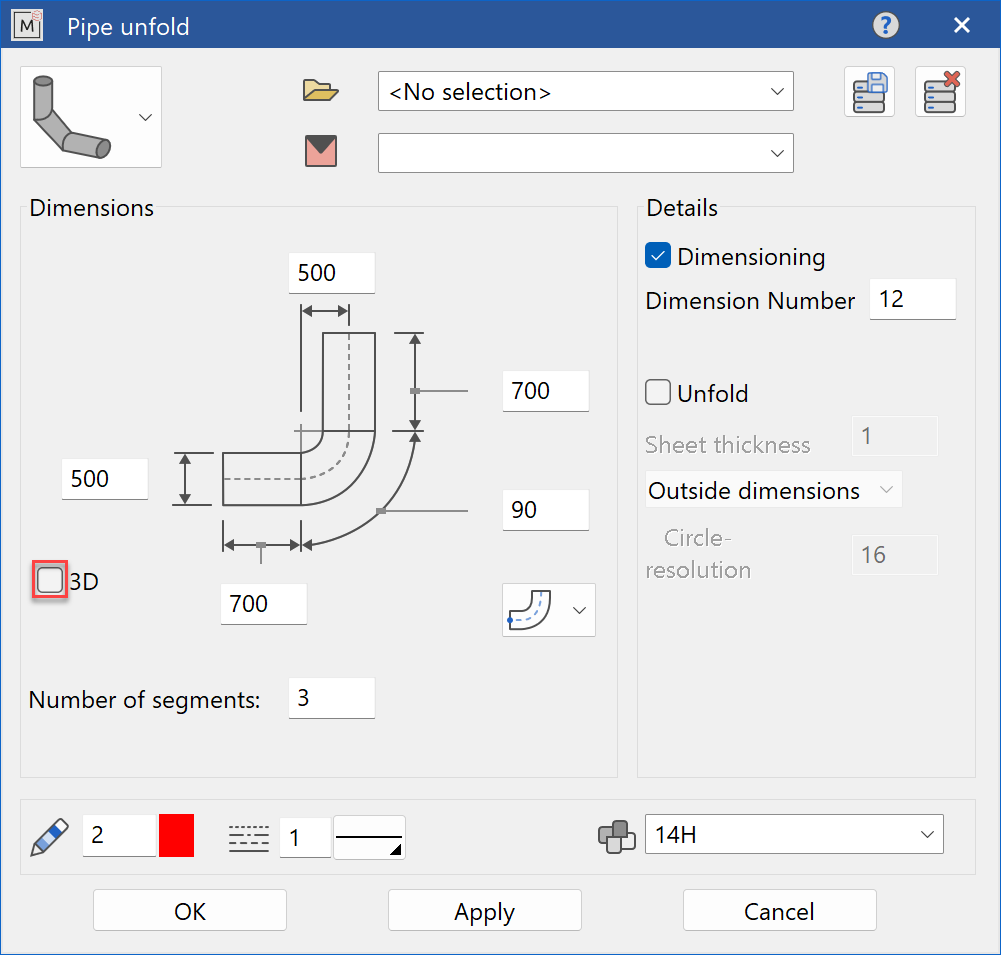

Elbow segment parameters¶

pipeunfold_params_
The elbow segment parameter for the elbow segment can be opened from the property bar or by double-clicking on the existing elbow segment to be modified. The parameter window can also be opened by opening the context menu for the current selection and clicking EDIT.

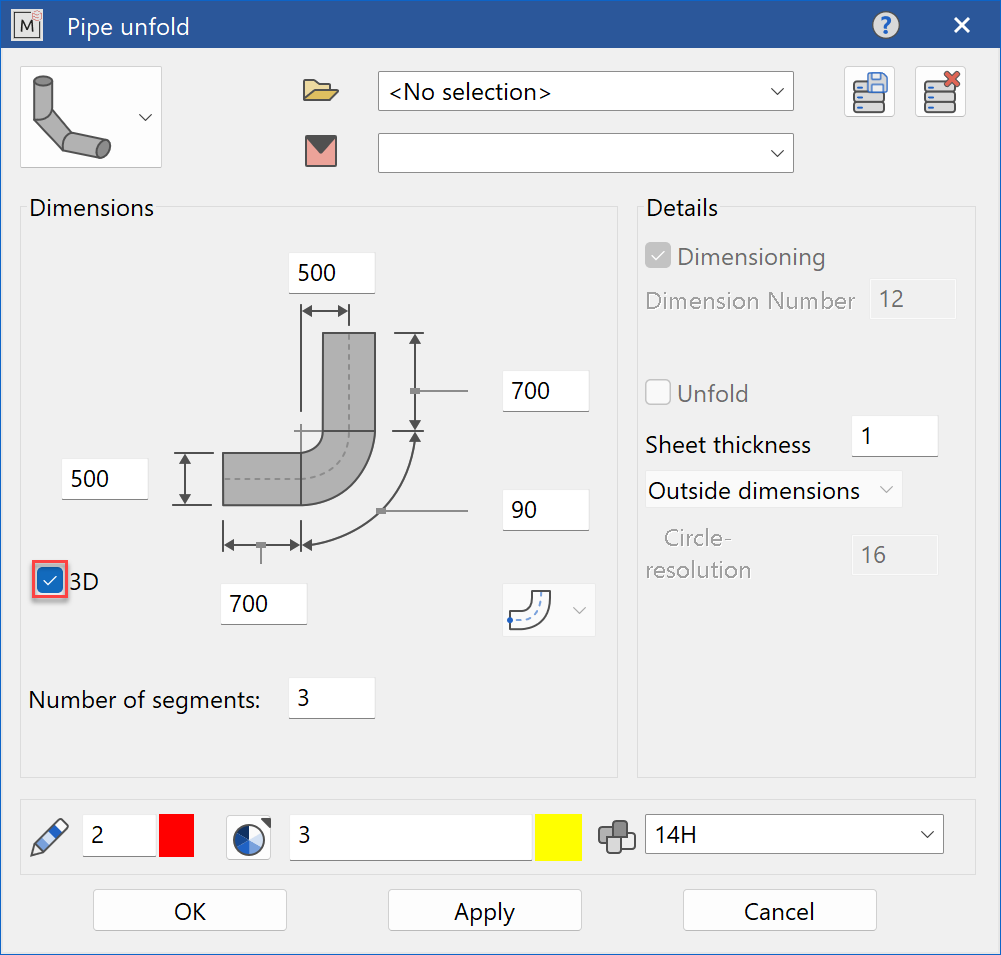

Decide whether the elbow segment should be created in 2D or in 3D.

Dimensions¶

Diameter¶

elbow-pipe-diameter
Diameter of the pipe

Dimensions¶

elbow-pipe-dimensions
1. Bend radius
2. Extension length
3. Angle of the arc

Input values¶

Selection of the reference point¶

pipeunfold_input_elbow_8_ Reference point for the centre of the pipe at the top (2D representation only)
pipeunfold_input_elbow_5_ Reference point pipe centre (2D representation only)
pipeunfold_input_elbow_4_ Reference point for the centre of the pipe at the bottom (2D representation only)

Number of segments¶

segment-amount-input
Number of segments the elbow should consist of

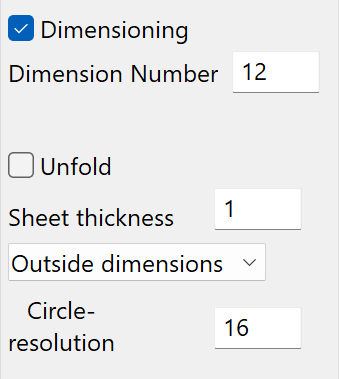

Input values for all pipe unfolds¶

input-for-all-unfolds
see Input values for all pipe unfolds.

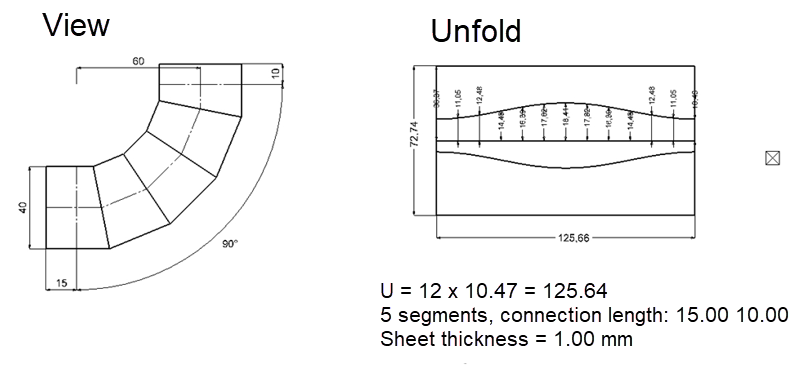

Elbow segment sample¶

elbow-sample
