Details

view-manager-details
A detail is a generated 2D plan.

Editing of detail views is described in the chapter EDIT VIEWS.

Header functions for the views

view-manager-details-header-functions

Function Description
view_section_group_ New section group
view_type_detail_ New detail
view_type_plot_ New plot
view_type_layout_ New layout template
file_open_ New main group
view_change_ Modify
view_update_ Refresh
3d_ 3D edit mode (only in ELITECAD Architecture)
export_view_pdf_dxf_ export as PDF/DWG/DXF
tree_arrow_open_close_all_ Expand/Close all view groups

Context menu of a detail view

If you right-click on a created view, the following options are available:

Show view in a new window

view_multi_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Float view window

multi_window_toggle_base_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Rename

Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Delete

delete_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Create copy

Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Separate view (only available in ELITECAD Mechanics)

link_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Refresh view

view_update_ This function refreshes the detail. Innovations that have been created in the original view are taken into account. When refreshing, all data that was rendered from the original view is first deleted and then the newly rendered data read in. Newly drawn 2D objects are retained.
Modified or deleted elements of objects being refreshed are returned to the state in which they were created in the original view.

Tip

When working with the classification structure group/class/level care has to be taken that newly drawn 2D data is not added to an object, which will be updated. For instance, the hatch should not be added to the contour model, because it will be deleted when updating the view.

Export view

export_view_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Save PDF file

export_view_pdf_dxf_ Details in OUTPUT > VIEWS > EXPORT VIEWS AS PDF/DWG/DXF.

Clicking this function switches to the view in which the detail was defined. The visible cut-out is set to the detail contour.

Modify view

view_change_ Details in OUTPUT > VIEWS > FUNCTIONS IN VIEWS.

Create new detail

Icon1 Views manager > New detail
Insert menu > Detail

The detail view allows you to define cut-outs of your design model, cut-outs from the floor plan (normal case) and from the section or a view.
view-manager-details-create

A new detail can be generated using the corresponding header function or from the context menu of the details if a model view is selected.

The desired settings have to be entered in the settings dialog window of the view. By clicking on ok, the settings are saved and the view is created. The function MODIFY VIEW allows you to change the settings of the view after creation.

Tip

In ELITECAD Mechanics, a detail view can be defined directly in the plot view. You have to activate the desired sub view in the plot view. After defining the detail contour, the position of the detail label has to be indicated. Afterwards the detail view is placed in the plot view.

Settings of a detail view

view-manager-details-general-parameters
While drawing the detail contour the pen and line type for the contour can be selected in the property bar.
detail-contour

General parameters

Name

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Type

The type of detail depends on the type of the original view.
If it was generated from a design model or design model view, it can be defined with the types "design model", "view" or "plan".
A detail is generated from a view, a plan, a section or a detail and may only have the type "plan".

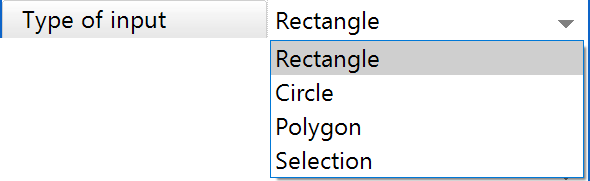

Entry mode

view-manager-details-input-type
The area of the data that is to be transferred into the detail can be determined with four different options.
There are two pre-defined shapes, rectangle and circle, as well as the polygon, which can be used to define any outline.
The option SELECTION creates a detail from the objects visible on the screen. The detail is set automatically to "Offline" and can no longer be refreshed.

Format

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Orientation

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Offline

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Rest scaling

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Heading

Details in OUTPUT > VIEWS > VIEWS.

Colour by attribute

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Colour scheme

Improved · 16 R1 · Improvements
Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.

Renovation planning (only in ELITECAD Architecture)

design-model-details-renovation-planning

Object state

Details in OUTPUT > VIEWS > GENERAL VIEW PARAMETERS.
