Create Armature

Icon1 Piping toolbar

With the help of this function, armatures can be created and positioned within the pipe system.

Armature property bar

armature
By selecting the function, the property bar is displayed where the most important parameters can be set. However, the fine adjustment is made in the armature parameters dialog.

Function Description
piping_armature_params_ Armature parameters
armature-type Armature record
armature-standard Standard
pipe-type Kind
pipe-series Series
piping_pressure_ Nominal pressure
piping_dn_ Nominal diameter
piping_dn_ Outside diameter
armature-depiction-settings-3d Pen/line type, 3D colour/material
bs_valve_globe_48_ kind of connection

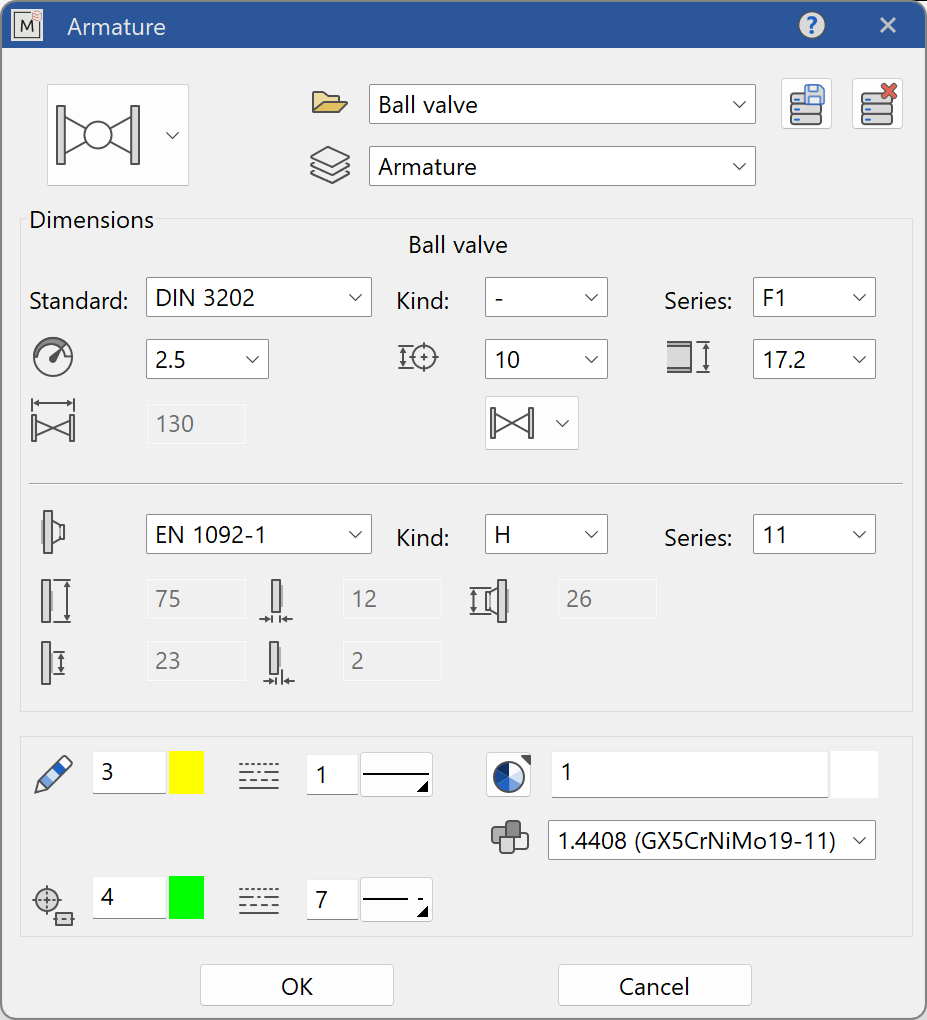

Armature parameters

piping_armature_params_
Additional parameters can be set here and saved as a separate record.
armature-parameter-menu

Selection of the armature type

armature-type-dropdown
The type of fitting can be selected with this selection menu. The following types are available:
bs_valve_globe_48_ Stop valve
bs_valve_gate_48_ Slide valve
bs_valve_butterfly_48_ Shutoff damper
bs_valve_ball_48_ Ball valve
bs_valve_lift_check_48_ Check valve
bs_valve_swing_check_48_ Swing check valve
bs_valve_strainer_48_ Strainer

Parameter name

armature-type
Name of the parameter record

database_store_
In order to create your own parameter record, the parameter dialog window is filled out as required, then a new name is entered in the text field and saved with SAVE RECORD.

database_remove_
DELETE RECORD is used to delete a record that is no longer required.

Material

material
A material for the armature can be specified here. For example, the weight is calculated using the material.

Classification

classification-armature
The classification for the armature can be set here. The entered value is used as the name for the class.

Function Description
silhouette-line-type Pen/line type for the silhouette
centre-line-line-type Pen/line type for centre line
color_ 3D colour
armature-standard Standard of armature
pipe-type Kind of armature
pipe-series Series of armature
piping_pressure_ Nominal pressure
piping_dn_ Nominal diameter
bs_line_da_ Outside diameter of the pipe
bs_armature_l_ Length (pre-specified)

Kind of connection

The different connection types, how the valve is connected to the pipe, can be selected here. The following types are available:

bs_conn_flange_ Double flange
bs_conn_lug_ Flange coupling
bs_conn_wafer_ Intermediate flange (for clamping)
bs_conn_thread_out_ With external thread
bs_conn_thread_in_ With internal thread
bs_conn_welded_ With welding end

Flange settings

armature-flange-standard Standard of flange
pipe-type Type of flange
pipe-series Series of flange

Below you can see the dimensions of the flange standard that has been set. These dimensions cannot be edited because they are specified by the standard.
bs_flat_gasket_d2_ Flange outside diameter
bs_flat_gasket_s1_ Flange sheet thickness
bs_weld_neck_flange_d3_ Pipe start diameter
bs_flat_gasket_d1_ Gasket start diameter
bs_flat_flange_f_ Gasket start thickness
