Create Pipe/Fitting

Icon1 Piping toolbar

With the help of this function, individual pipes and fittings can be created and positioned within the pipe system.
By selecting the function, the property bar is displayed where the most important parameters can be set. The setting options in the parameters depend on the type. There are 5 different types to choose from:
bs_fitting_type_pipe_48_ Pipe
bs_fitting_type_bend_48_ Elbow
bs_fitting_type_branch_48_ Tee
bs_fitting_type_reducer_48_ Reducer
bs_fitting_type_cap_48_ Cap

Pipe/Fitting property bar

pipe2

General parameter

The following parameters can be set for all fitting types:

Function Description
piping_fitting_params_ Fitting parameter
fitting-type Fitting record
pipe-standard Standard
pipe-type Kind
pipe-series Series
piping_dn_ Nominal diameter
bs_line_da_ Outside diameter
bs_line_s_ Wall thickness

Elbow property bar

elbow
The following parameters are also available for the elbow type in the property bar:

Function Description
angle_ Angle of the elbow

Reducer/Tee property bar

reducer
For the reducer and tee types, there are also the following parameters in the property bar:

Function Description
piping_dn_ Nominal diameter 2
bs_line_da_ Outside diameter 2
bs_line_s_ Wall thickness 2

Pipe property bar

pipe2
The following parameters are also available for the pipe in the property bar:

Function Description
bs_pipe_l_ bs_pipe_2_pts_ Type of entry: over 2 points or with length
bs_line_length_ Length of the pipe (only active if the input type length is selected)

Fitting parameters

piping_fitting_params_
Additional parameters can be set here and saved as a separate record.

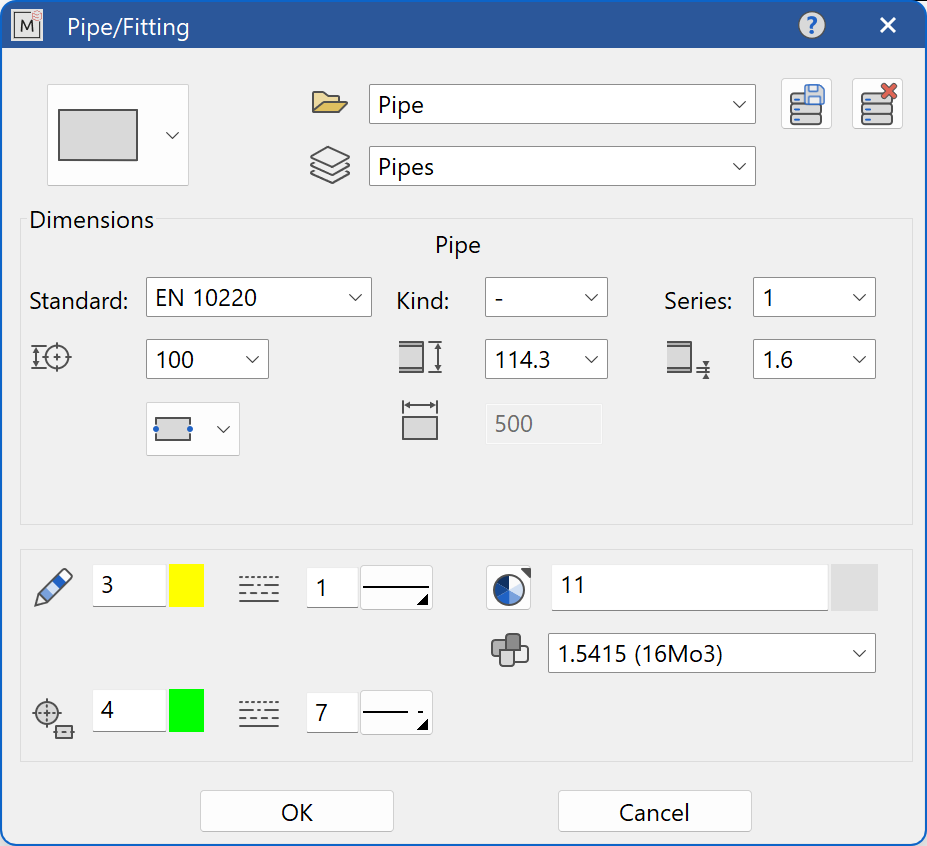

fittings-parameter-menu

Fitting type selection

fitting-type-selection
The type of flange can be selected with this selection menu. The following types are available:
bs_fitting_type_pipe_48_ Pipe
bs_fitting_type_bend_48_ Elbow
bs_fitting_type_branch_48_ Tee
bs_fitting_type_reducer_48_ Reducer
bs_fitting_type_cap_48_ Cap

Parameter name

fitting-type
Name of the parameter record

database_store_
In order to create your own parameter record, the parameter dialog window is filled out as required, then a new name is entered in the text field and saved with SAVE RECORD.

database_remove_
DELETE RECORD is used to delete a record that is no longer required.

Material

pipe-material
A material for a pipe can be specified here. For example, the weight is calculated using the material.

Classification

pipe-classification
The classification for the pipe can be defined here. The entered value is used as the name for the class.

Function Description
silhouette-line-type Pen/line type for the silhouette
centre-line-line-type Pen/line type for centre line
color_ 3D colour
pipe-standard Standard
pipe-type Kind
pipe-series Series
piping_dn_ Nominal diameter
bs_line_da_ Outside diameter
bs_line_s_ Wall thickness

Elbow settings

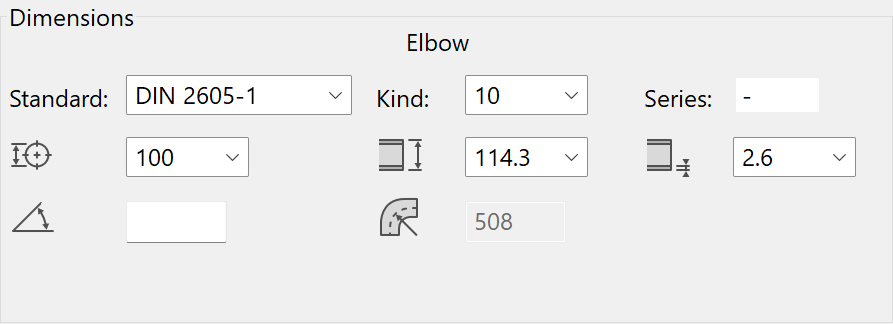

elbow-dimensions
The following elbow parameters can be adjusted:
angle_ Angle of elbow
bs_bend_r_ Radius of elbow

Reducers/Tee settings

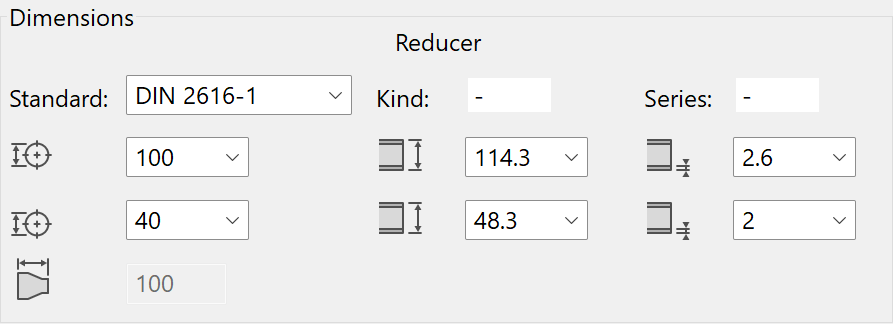

reducer-tee-dimensions
The following reducer/tee parameters can be adjusted:
piping_dn_ Nominal diameter 2
bs_line_da_ Outside diameter 2
bs_line_s_ Wall thickness 2
bs_branch_l0_ Leg length a (specified)
bs_branch_l1_ Leg length b (specified)

Pipe settings

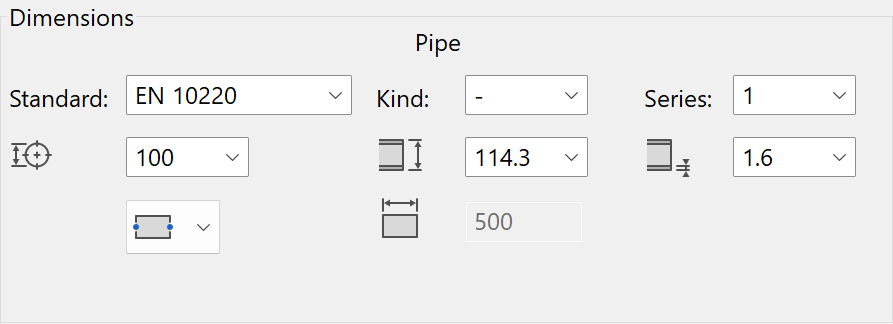

pipe-dimensions
The following pipe parameters can be adjusted:
bs_pipe_l_ bs_pipe_2_pts_ Type of entry: over 2 points or with length
bs_pipe_l_ Length of the pipe (only active if the input type length is selected)

Cap settings

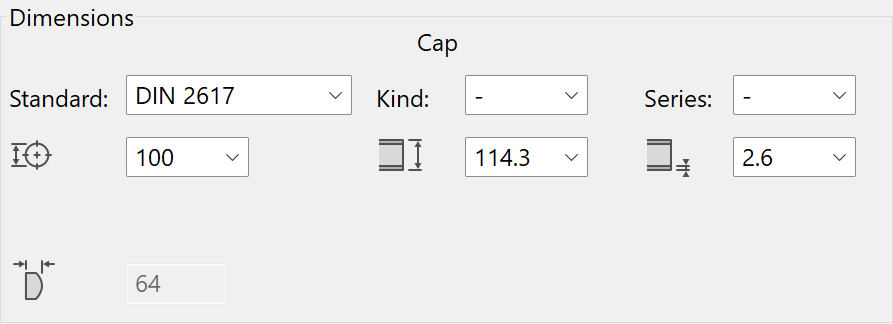

cap-dimensions
he following cap parameters can be adjusted:
bs_cap_l_ Cap Height (specified)
