Create Routing Line

Icon1 Piping toolbar

With the help of this function, a routing line is created from which a 3D piping system can afterwards be generated.

Routing line property bar

piping-system
By selecting the function, the property bar is displayed where the most important parameters can be set. However, the fine adjustment is made in the routing line parameters dialog.

Function Description
piping_line_params_ Routing line parameters
piping-parameter-type Parameter record
pipe-standard Standard of pipe
pipe-type-property-bar Kind of pipe
pipe-series-property-bar Series
piping_dn_ Nominal diameter
bs_line_da_ Outside diameter
bs_line_s_ Wall thickness
![piping-depiction-settings-3d Pen/line type, 3D colour/material, hatch colour

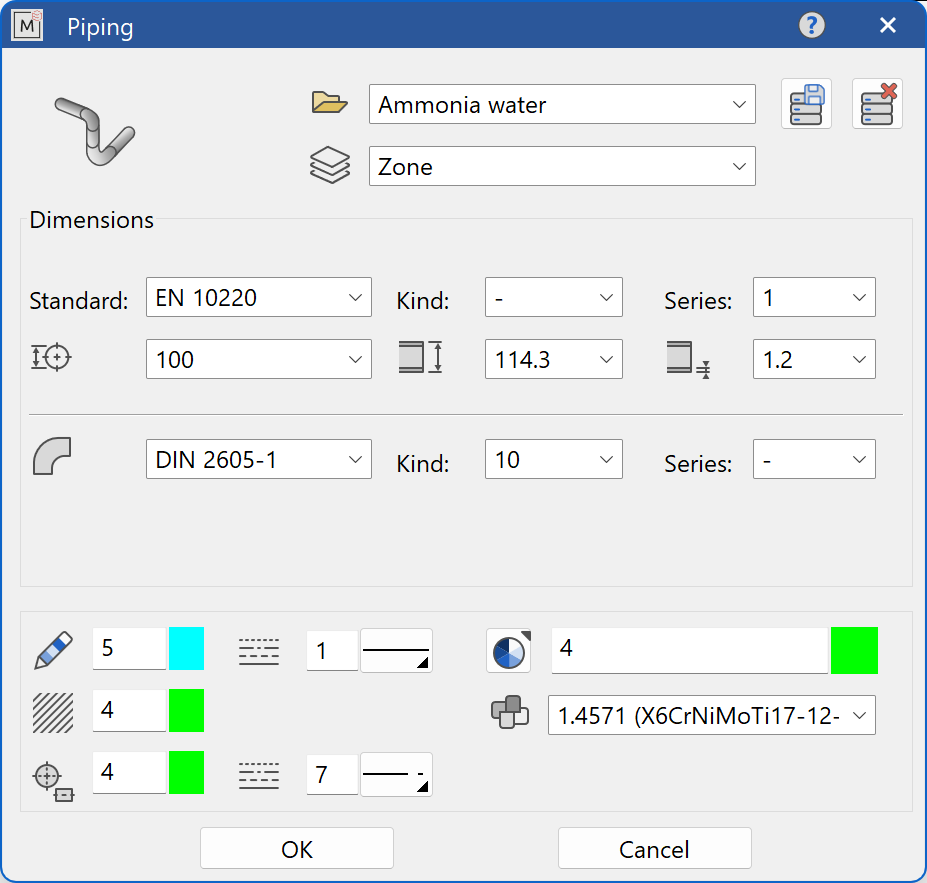

Routing line parameters

piping_line_params_
Additional parameters can be set here and saved as a separate record.
routing-line-parameter-menu

Parameter name

piping-parameter-type
Name of the parameter record

database_store_
In order to create your own parameter record, the parameter dialog window is filled out as required, then a new name is entered in the text field and saved with SAVE RECORD.

database_remove_
DELETE RECORD is used to delete a record that is no longer required.

Material

material
A material for the pipe can be specified here. For example, the weight is calculated using the material.

Classification

classification
The classification for the pipe can be defined here. The entered value is used as the name for the class.

Function Description
silhouette-line-type Pen/line type for the perimeter line
centre-line-line-type Pen/line type for centre line
color_ 3D colour
hatch_ Colour of hatch
pipe-standard Standard of pipe
pipe-type Kind of pipe
pipe-series Series of pipe
piping_dn_ Nominal diameter of pipe
bs_line_da_ Outside diameter of pipe
bs_line_s_ Wall thickness
elbow-standard Standard of elbow
elbow-type Kind of elbow
pipe-type Series of elbow

Weld-in routing line

Icon1 Piping toolbar

If you draw a routing line with the help of this function, no fittings are generated at the intersections of the routing lines.

The parameters are the same as for the standard pipe system.
