Show Info

Display bottom of pipe

Drainage property bar

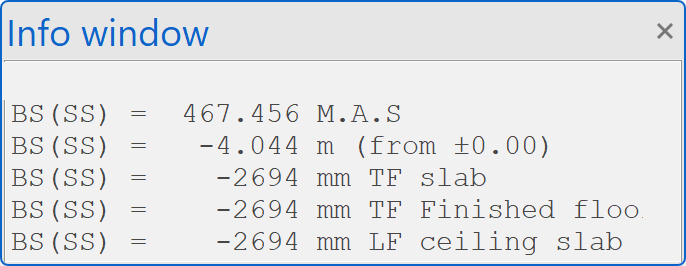

The function is used to output height information in the info window.

To label the pipings, you must first generate the piping network.

Explanation

If it is not possible to generate a piping network, e.g. because of a negative intended slope or because of incorrect height modifications etc., an error message in the form of a large X appears. The X shows the source of the error and can be requested with the MODEL INFORMATION function in the measurement manager. The message is output in the info window.

You must correct or redraw at these points.
Each X can be removed again through selection and deletion.

Refresh drainage

New · 17 R1 · Improvements

The network is regenerated, the slope calculation is processed and both the hatch as well as the three-line are refreshed. All errors are marked with an X.
A list of the errors can be seen in the info window or if a specific error is selected, the properties window with indicate the specific nature of the error.

Remove error marking

New · 17 R1 · Improvements

Deletes all Xs that have been created either by the Refresh drainage function or by manual manipulations to the drainage network.
