Labelling

For the display in the floor plan and the section, accessories for labelling are available. The height information can be written as meters above sea level, in relation to the project null (+/- 0.00) or in relation to the storey height.

Workshop

Labelling of circuits

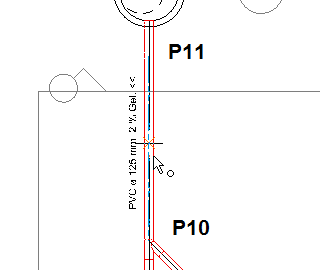

  1. Click on the pipe section between P10 and P11. The text is automatically placed along the line and it uses the circuit text parameter. 001select-pipe-section
    The text can be manipulated as usual:
    Once selected, the text and be moved using the middle handle. or hold Shift + click, afterwards the text can be moved by dragging it by the centre handle.
    By double-clicking in partial mode, the text editor appears.

    2. Label the underside of the pipe bs_base_label_

  2. Set the height reference to ±0.00. Rotate the model into the 3D view and click on the base of the pipe at the connection point of the part P9 – P10. Click again to position the text.

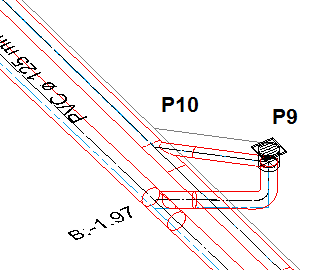

    002height-ref-dropdown 003change-height-ref

    3. Label shaft

  3. Switch back to the 2D view.

  4. Click on the inlet in P41 and position the text "I1". You could now position additional inlets that are automatically numbered consecutively by ELITECAD.

  5. After "I1", click again on the Esc key and ELITECAD will switch to labelling of the outlet.

  6. Click on the base of the chamber in P44 and position the text "O".

  7. Next the text appears for chamber description on the cursor. Position this text as well. To reduce visual clutter, you can hide the reference plan and the 3D edges.

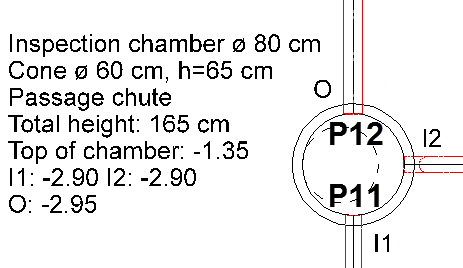

    004shaft-label

    8. Tip

    The texts of the drainage label are automatically stored in the relevant layer. Drainage parts and their corresponding texts represent one object. Clicking in selection mode element part or with the Alt key held activates only the text. The text settings correspond to the text parameter "circuit" and "chamber". If these text parameter records are not available, the current text parameter settings will be applied.

    Labelling of non-parameterised drainage parts
    For the parts inserted from the library, prepared texts are also available at the same location which can be imported and adjusted:

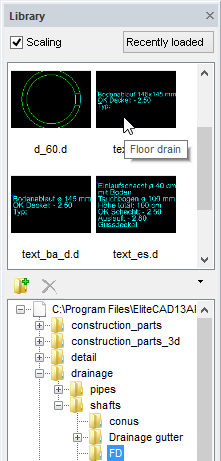

    005select-lib-part

    Library part File name
    Drainage/Shafts/...
    Rainwater pipe gully RW\text_dws.d
    Floor drain rectangular FD\text_ba.d
    Floor drain round FD\text_ba_d.d
    Inlet shaft FD\text_es.d
    Inlet channel FD\text_rinne.d
    Inspection chamber IC\text_ks.d
    Mire collector MC\text_ss.d

  8. In the library window, click on Drainage > Shafts > FD > text_ba.d
    And label the floor drain at P9.

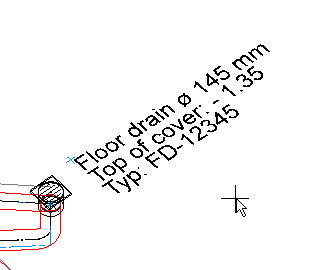

    006label-lib-part
    Change the text to suit your needs:

  9. With SELECTION ELEMENT PART or while pressing and holding the Alt key, click on the text and enter the values.
