Library part floor drain

To be able to create a complete parts list for drainage, individual parts are placed directly from the library into the drawing.

Workshop

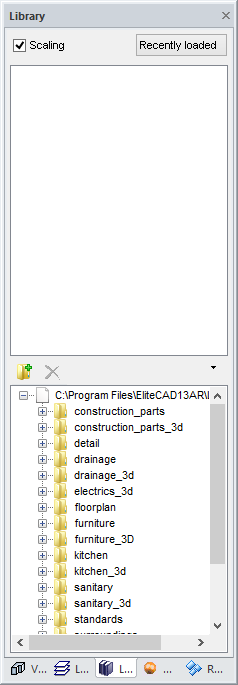

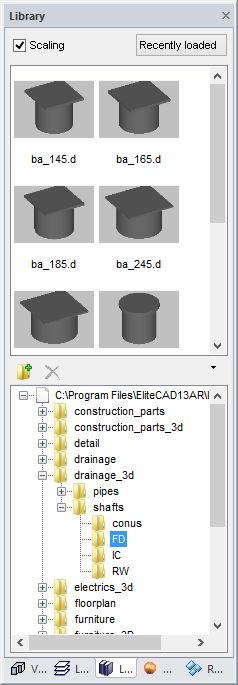

If necessary, open the LIBRARY window from the VIEW window. In the bottom half of the window, switch to the library that you require. In the event of drainage, open the library supplied by clicking on the "+", open the directory Drainage 3D > Shafts > FD. In the top half, you now see a preview of the existing floor drains.

Tip

Use the "Recently loaded" button to show only library parts already used.

1. Apply floor drain
   Click Ctrl + D to switch to the solid view and rotate the model in such a way that you can see the floor area of the laundry room.
   Click on the floor drain Ba_145.d in the preview window.
   The property bar for setting library parts appears.
   Click on the function ALIGN TO AREA/TERRAIN and position the floor drain on the plane.




2. Click Ctrl + D to switch to the wire model and insert the view back into the top view by clicking Ctrl + Space. Click on the floor drain and, using the handle, move it to the centre of the surface in P9.


3. If we check the floor drain now, we can see that the wastewater pipe ends before reaching the floor drain. Select the load point in P9 again and change the connection height to -140. After confirming with Enter, the change is applied and the floor drain can now be placed onto the pipe.



4. Cancel function Esc, save work copy ++Ctrl++ + W.
