Set library parts

Library parts are set using the library manager. If the manager window is not visible on screen, it can be shown by selecting WINDOW > LIBRARY.

Tab symbol of library (1)

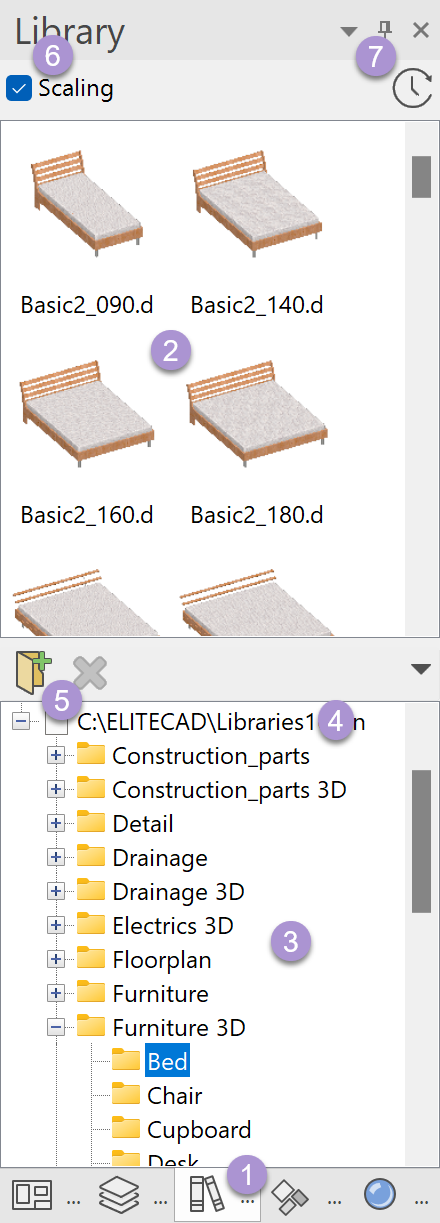

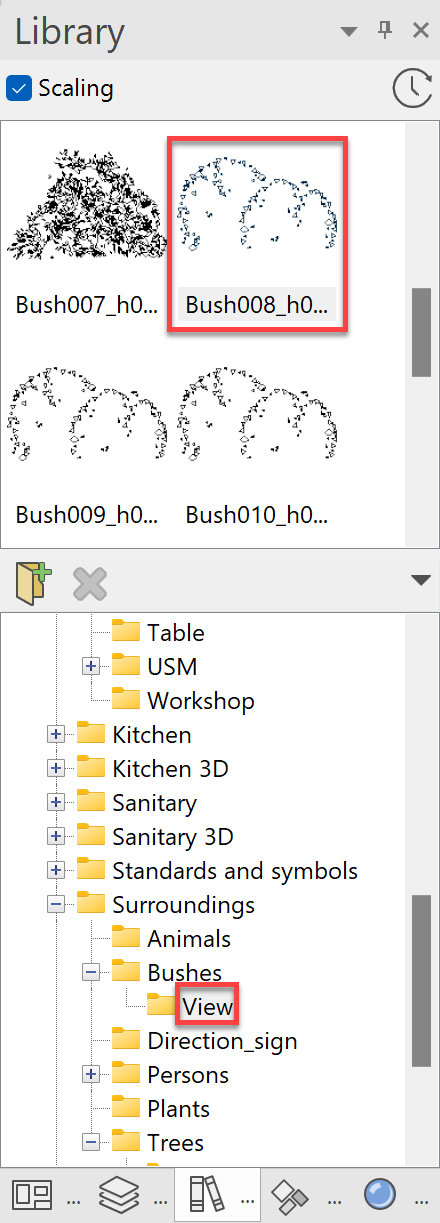

The manager window is divided into two parts. The preview (2) of the library parts is displayed in the upper field. The folder structure (3) is shown in the lower area. The folder structure is represented starting from a root directory (4). Additional root directories can be added independently (5).
The Scaling (6) option scales the library part to the relevant scale of the drawing. In most cases, no scaling is required for plan elements graphics (header, north arrow).
If the option "Recently loaded" (7) is enabled, in the preview area (2) the library parts recently loaded will be displayed and the folder structure (3) appears with a grey background.

Property bar for library parts

Workshop

1. The views and the section must be enhanced with plants, persons and cars.

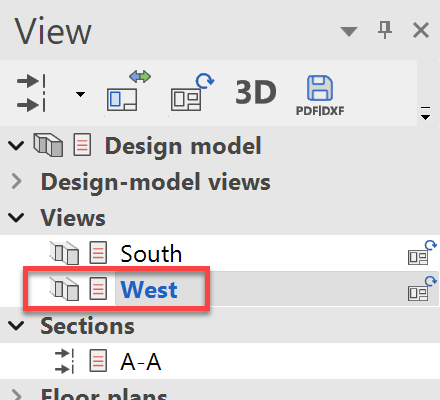

2. Load the west view onto the screen.


3. Bring the Library manager to the foreground.

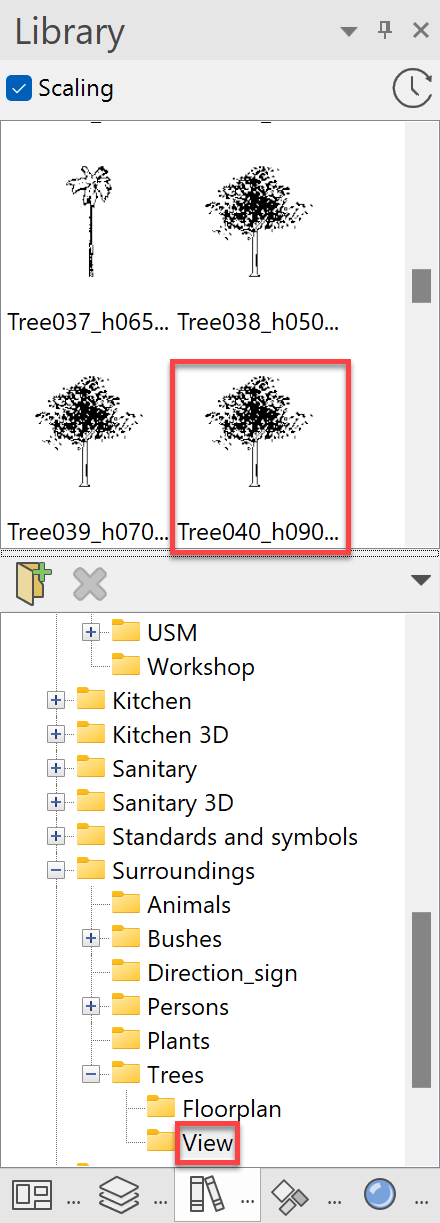

4. Open the path surroundings\trees\view and select the library part tree040_h0900.d.


   Following selection, move the cursor into the work area. The tree is "attached" to the cursor and can be positioned.

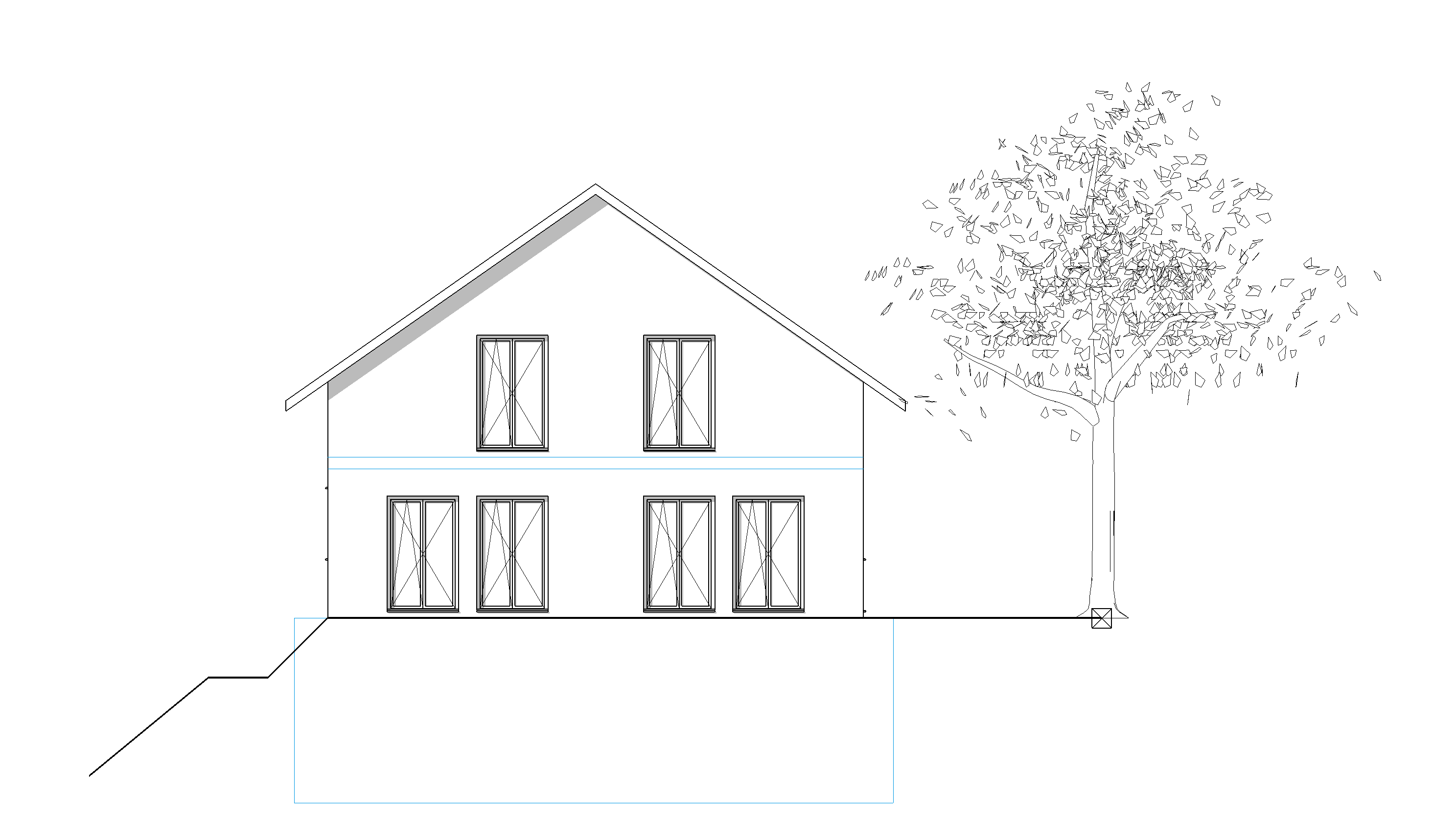

5. Set the tree at the desired position in the view. The tree can now continue to be set multiple times until you cancel the function with Esc.

6. Bushes are to be located on the other side of the house. Switch to the surroundings\bushes\view and select the bush bush008_h0100.d aus.

7. In the property bar switch to ALIGN AUTOMATICALLY TO ELEMENT.

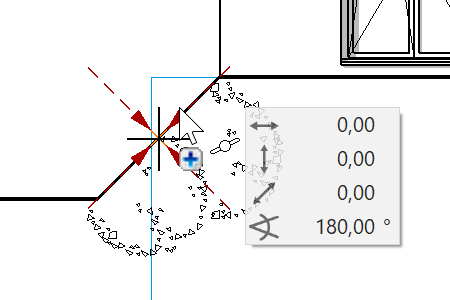

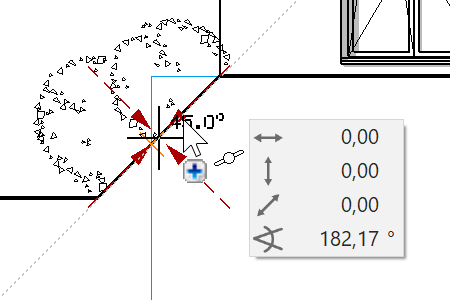

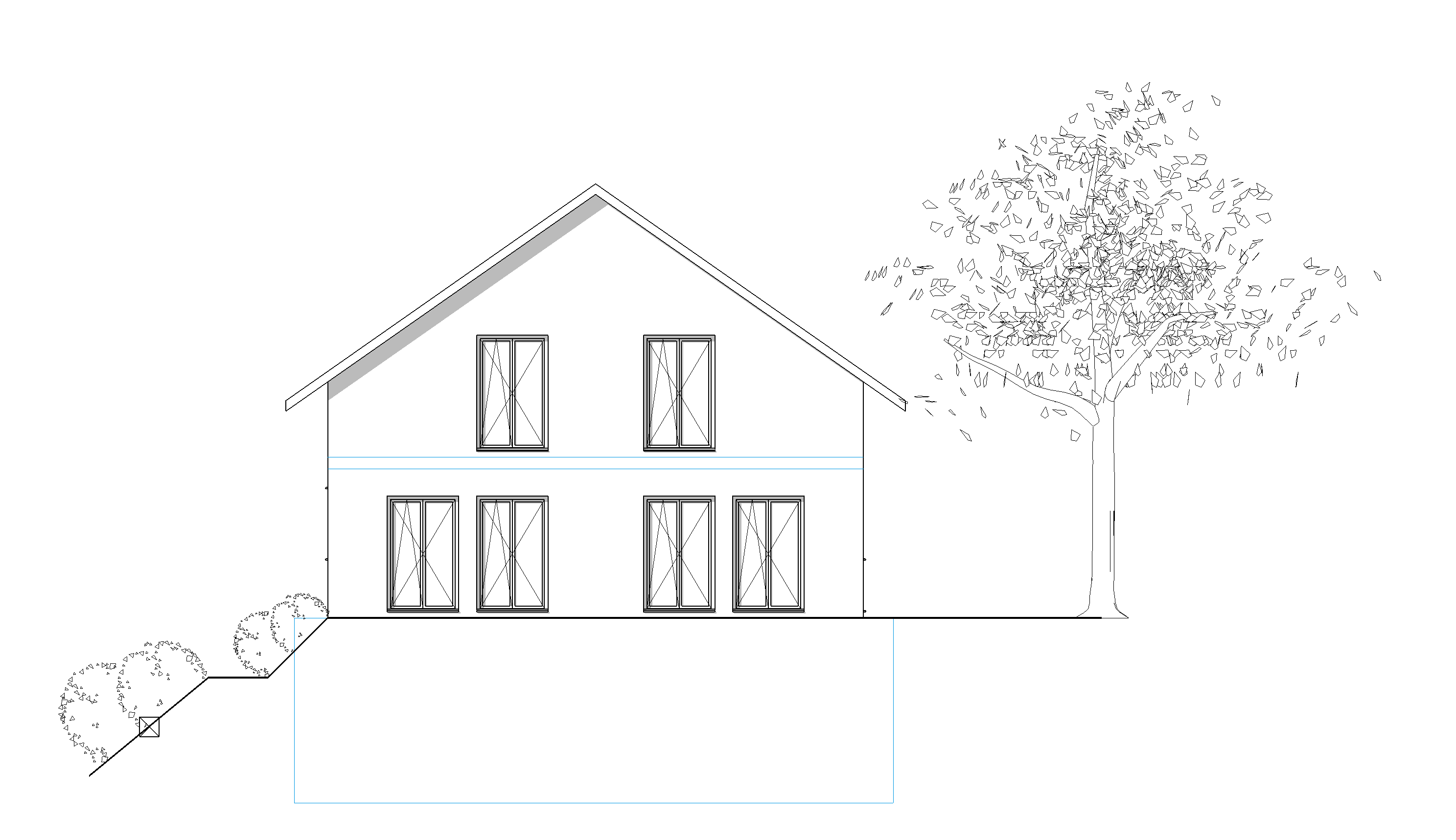

   Position your cursor onto the sloping line. The bush is automatically tilted. Depending on which side of the line the cursor is located, the bush is shown on the other side. As soon as the position is correct, confirm it by left-clicking.

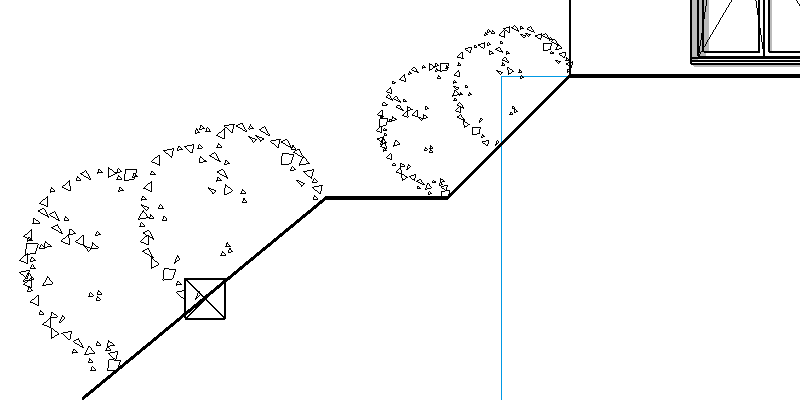

8. The lower of the two bushes has a height of 150 cm. Switch to the library part bush009_h0150.d and set it on the lower slope.


9. In Library manager, switch to the folder environment\persons and position the two library parts E_pers13.d and E_pers25.d in the view.

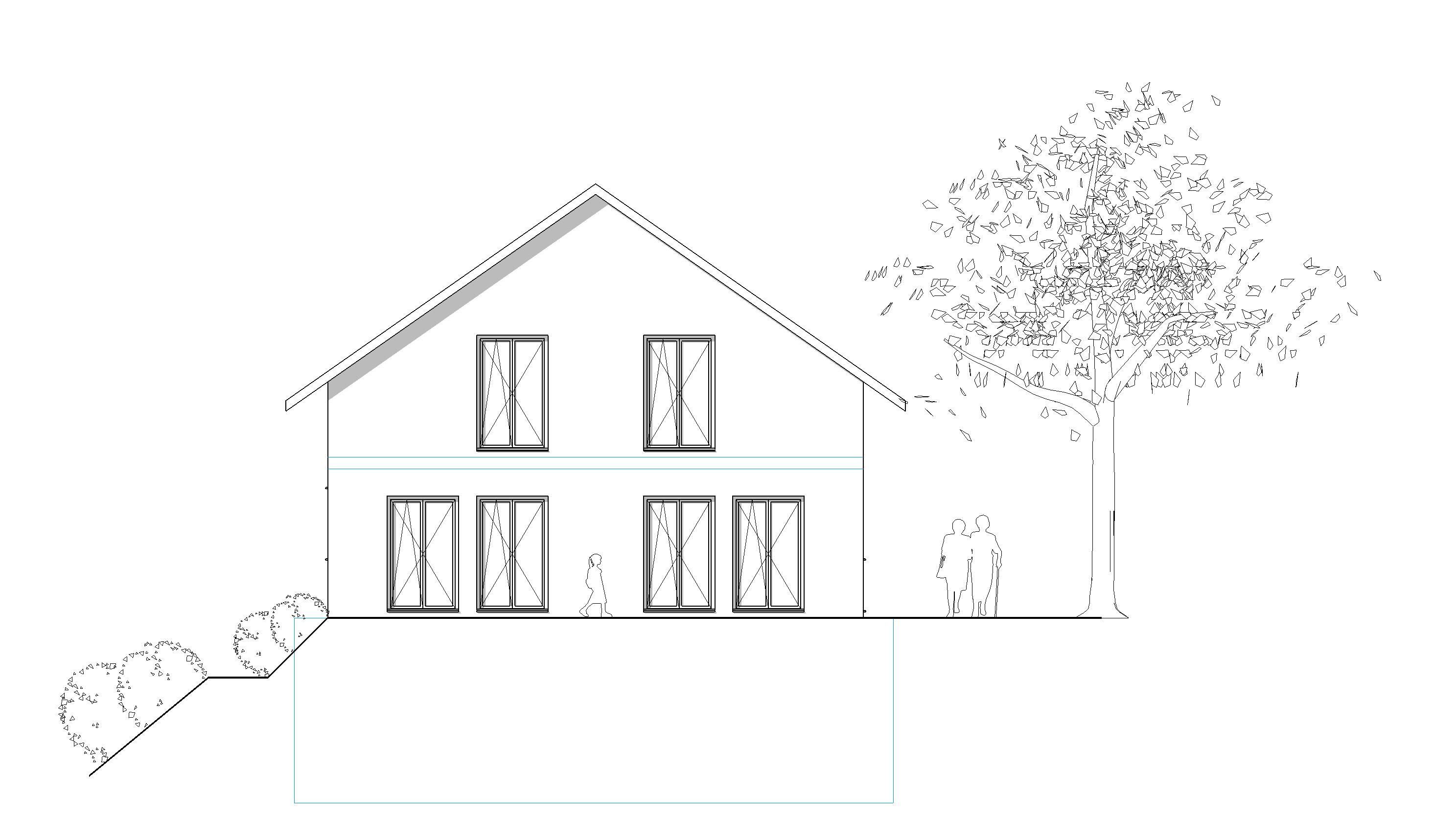

   Before they are positioned, library parts can be rotated, mirrored or scaled. Mirror the person E_pers25.d, before you set the library part in the view.



10. Now complete the south view and the section with library parts.

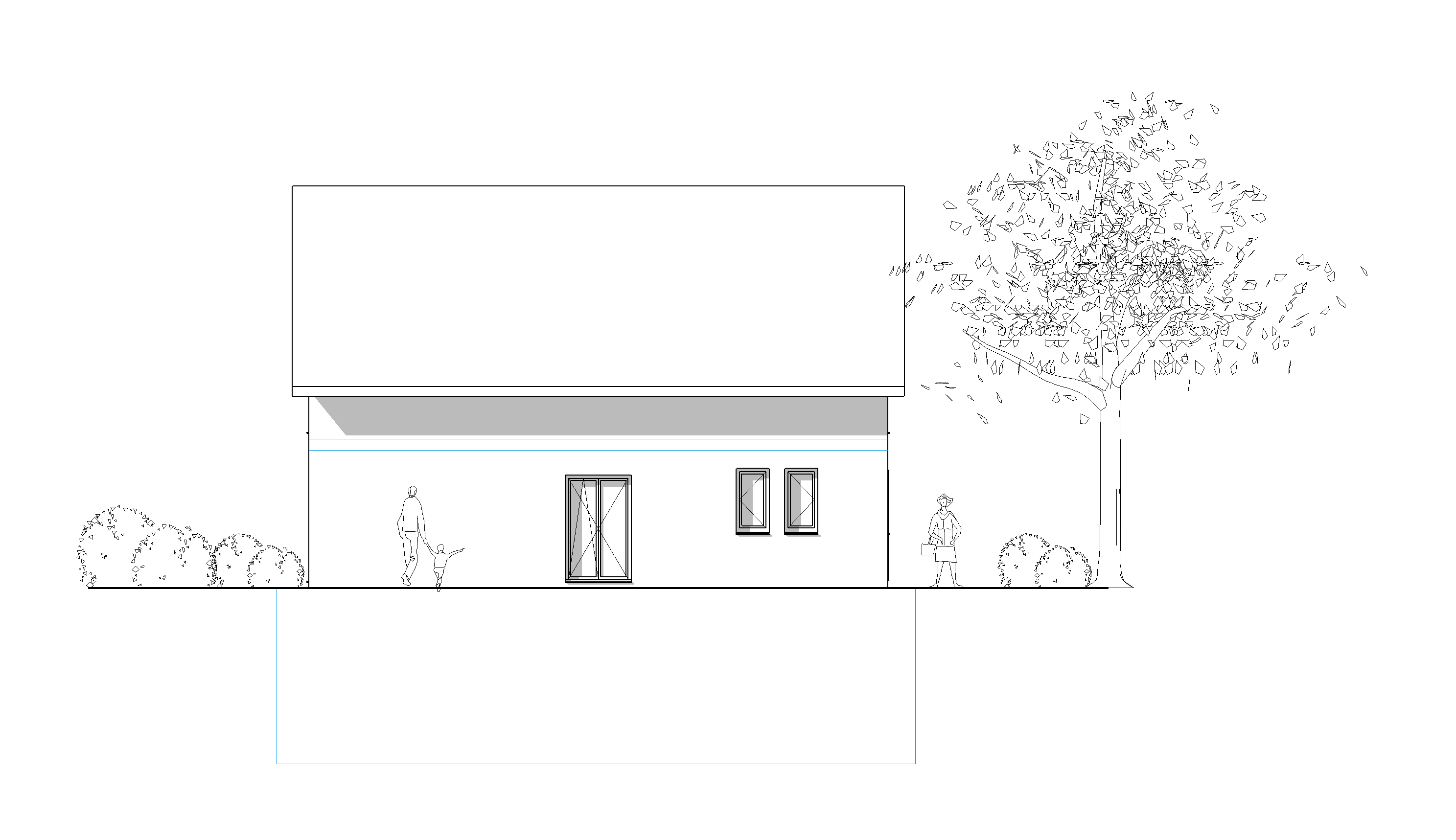

    South facade

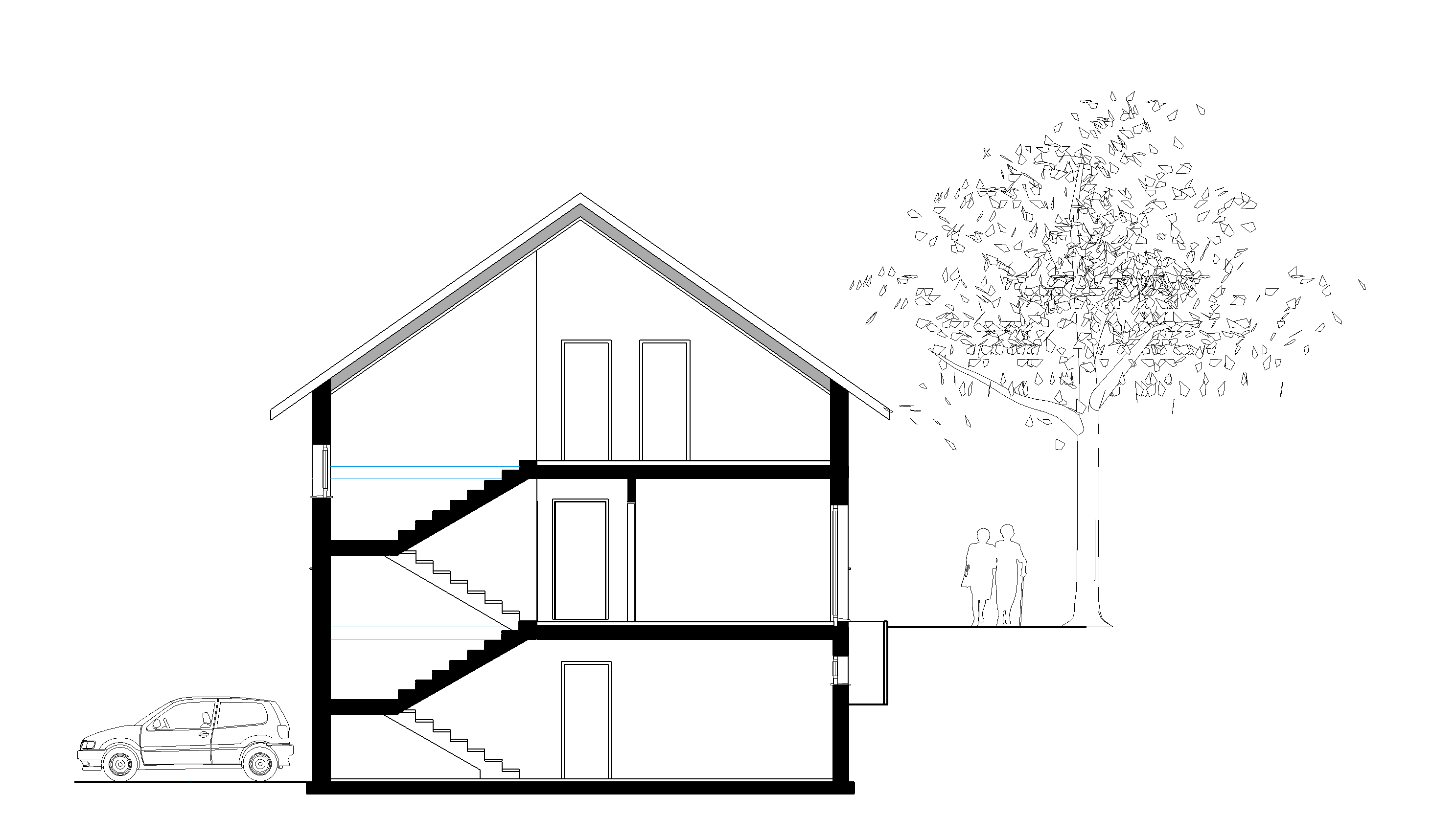

    Section
