Course unit - Working drawing

Table of Contents

Switch representation level
Representation level parameters
Change representation level
Modify external wall
Modify window stop
Modify door stop
Set doors with stop
Transfer the parameters of the doors
Transfer the parameters of the windows
Correct stair
External dimensions
Internal dimensions
Save

Preperation

Workshop

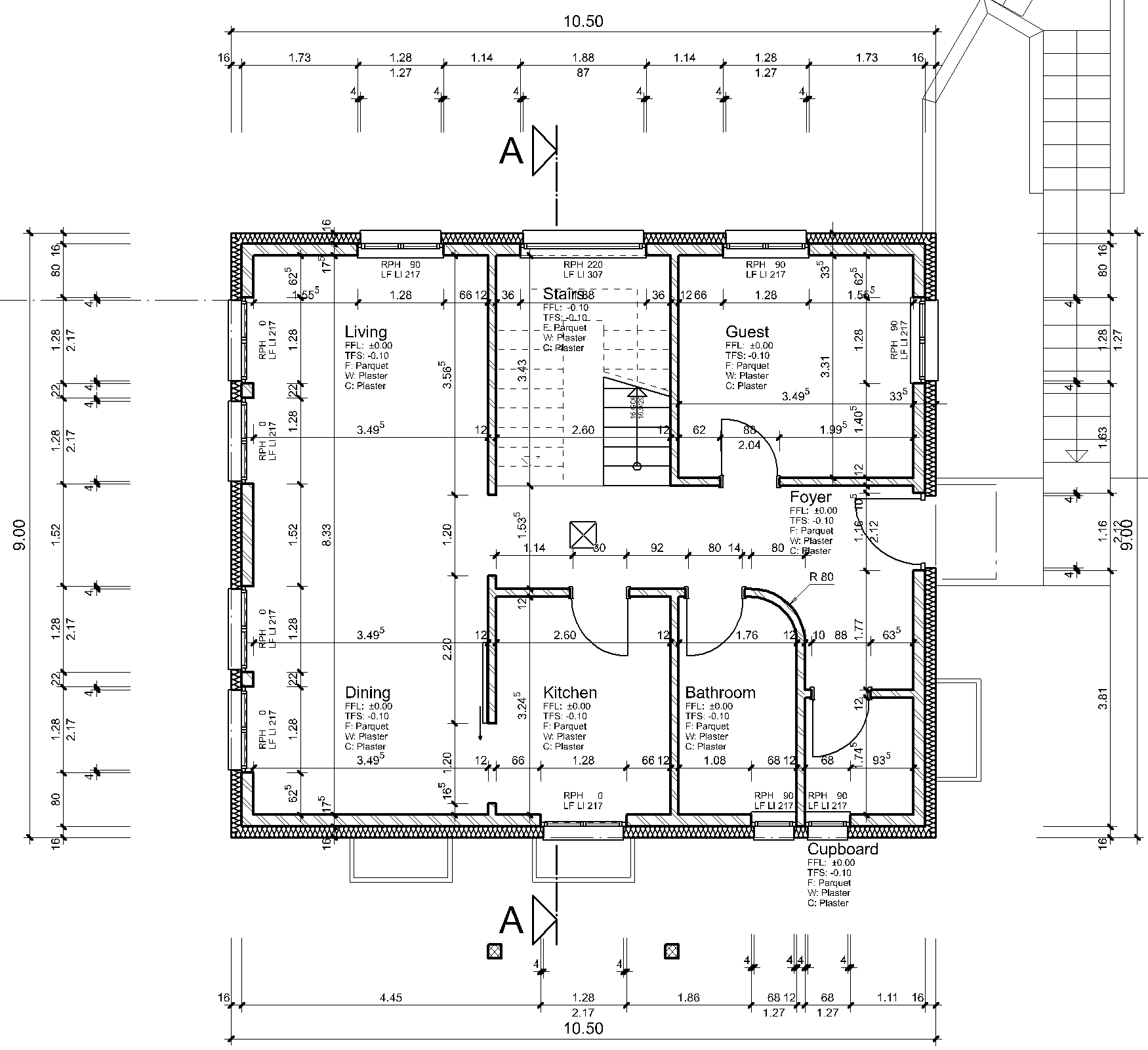

In this course unit we start with the project status that you created in course unit 4 or you use our example supplied (CAD_Object4). First, load the project.

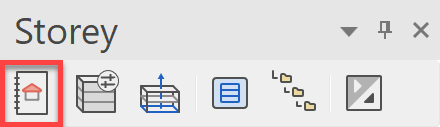

1. Open the project settings.

   Existing model from course unit 4


   Without model from course unit 4

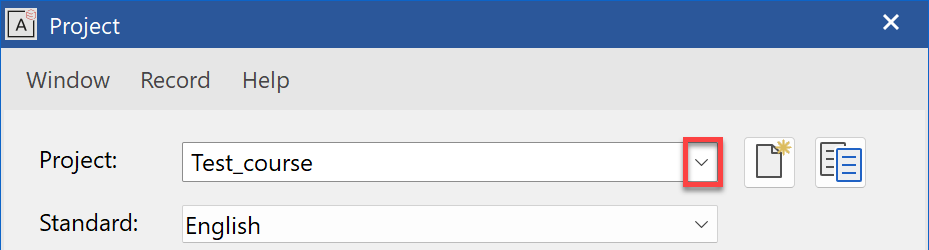

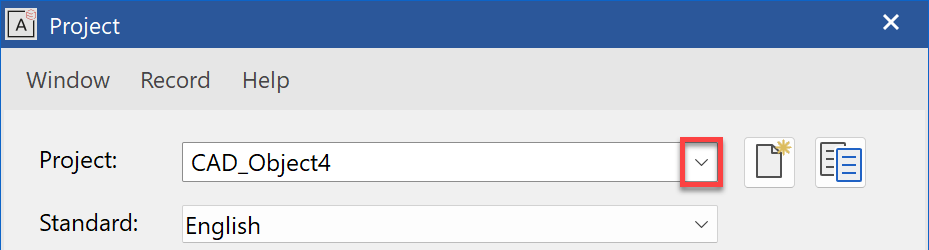

   Select the relevant project and confirm with .

2. Load the corresponding model file with the menu FILE > OPEN.

   Select the model and open it.

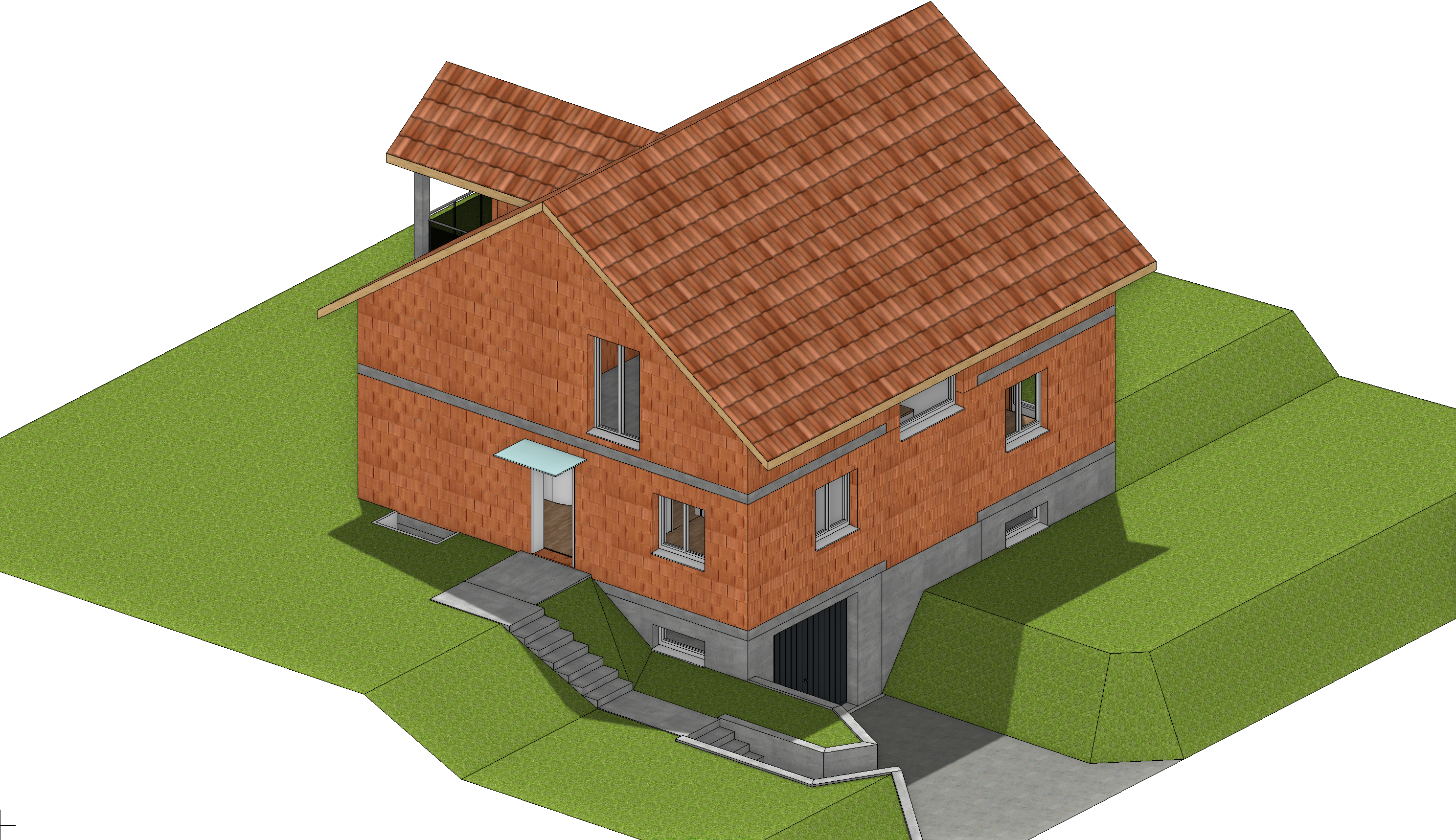

   The opened model should have this state.

   Explanation

   The changeover to the representation level "working drawing" also changes the scale of the model and of the views. As a result, the plot compilations can no longer be used.

   Make sure that you save the "input model" with its views and plots as an independent file. Use the SAVE AS function in the FILE menu to save a model and all its plans under a new name. A back-up copy of the entire file can also be created in the same way.

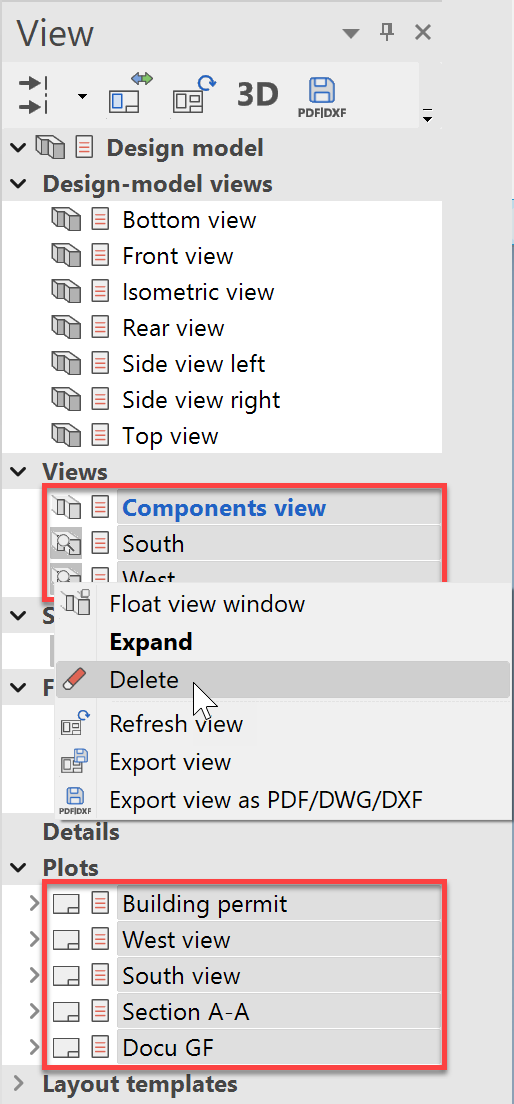

3. In views manager delete all plots and views. Select the views and delete them using the context menu.
   Ctrl key = multiple selection; Shift key = "from-to" selection

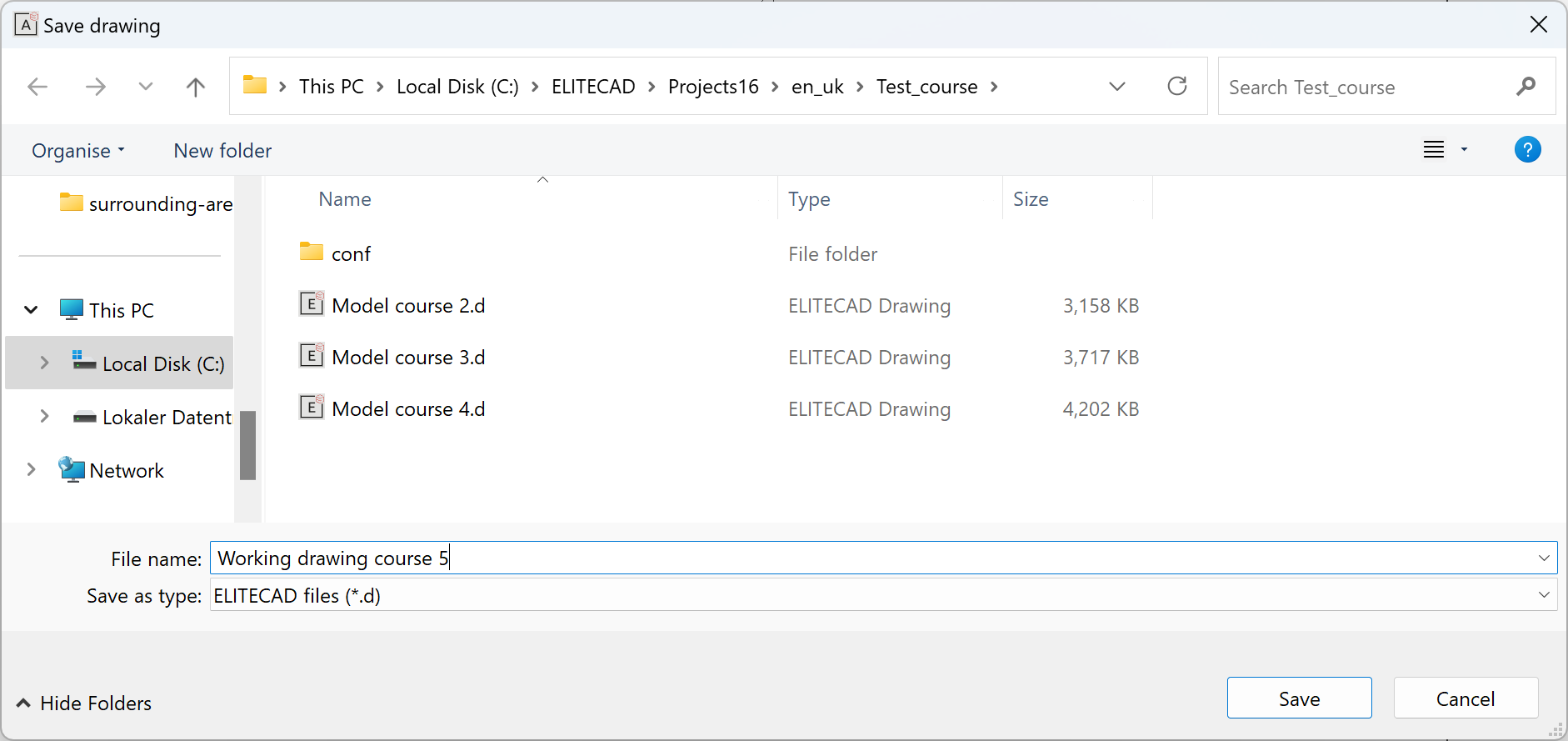

4. From the FILE menu select SAVE AS and save the file under the new name working drawing course5.d.
