Manipulate polygon

A created polygon can be modified. The 1st click on the polygon selects it and the corners receive handles.

Polygon	1st click	1st click effect	2nd click

The 2nd click determines which corner or which edge is to be modified. So that you can tell that the cursor is over a changeable element, it changes its appearance to a quadruple arrow.
Other manipulation functions appear depending on whether a line, a curve, a corner or an end point was clicked. The function last selected is immediately active.

The available manipulation options appear in the Input assistant tool bar or on the cursor with the Tab key.

Manipulation options on a corner

Stretch point	Delete point
Chamfer	Fillet

Manipulation options on an edge

Insert point	Round edge	Stretch element

Manipulation options for a corner or edge

Move selection	Scale element

By pressing the Ctrl key at the same time, the selection can be copied when moved. When scaling, a reference point must be set as the starting point for scaling.

Move elements parallel	Move all elements parallel

Change polygon

A distinction is made between whether a closed or an open polygon is to be modified. After you select the change function, the drawing functions with which the change can be drawn appear in the input assistant.

Expand/reduce closed polygon by one circle:
First select the EXPAND or REDUCE POLYGON function followed by the drawing function CIRCLE.

Drawing function	Extend circle polygon	Reduce polygon

Open polygon:

For the open polygon, the extension polygon must be started on the geometry and ended by double-clicking on the geometry. An exception is when you start on an end point. If the polygon cannot be closed properly, the change is not carried out.

Structure/Selection

Select and Edit

Select and edit with a single click (no double-click needed); the handles appear immediately. The current model is no longer modified. Elements / text / dimensions, etc., take priority over the model.

Structure

Selection toolbar and hierarchy
The selection mode can be switched between Part mode (polygon), Object mode, or individual elements.

Polygone, Kreise, Linien etc. können jetzt ohne Musterzuweisung gezeichnet gewählt werden.

Individual parts can be selected when the “Select element parts” toggle is active (or alternatively by holding Alt).

e.g. for parts of a polygon, individual dimensions, …
Multiple selection is possible by holding Shift.

Object mode (alternative: F4)

e.g. for user-defined models

Workshop

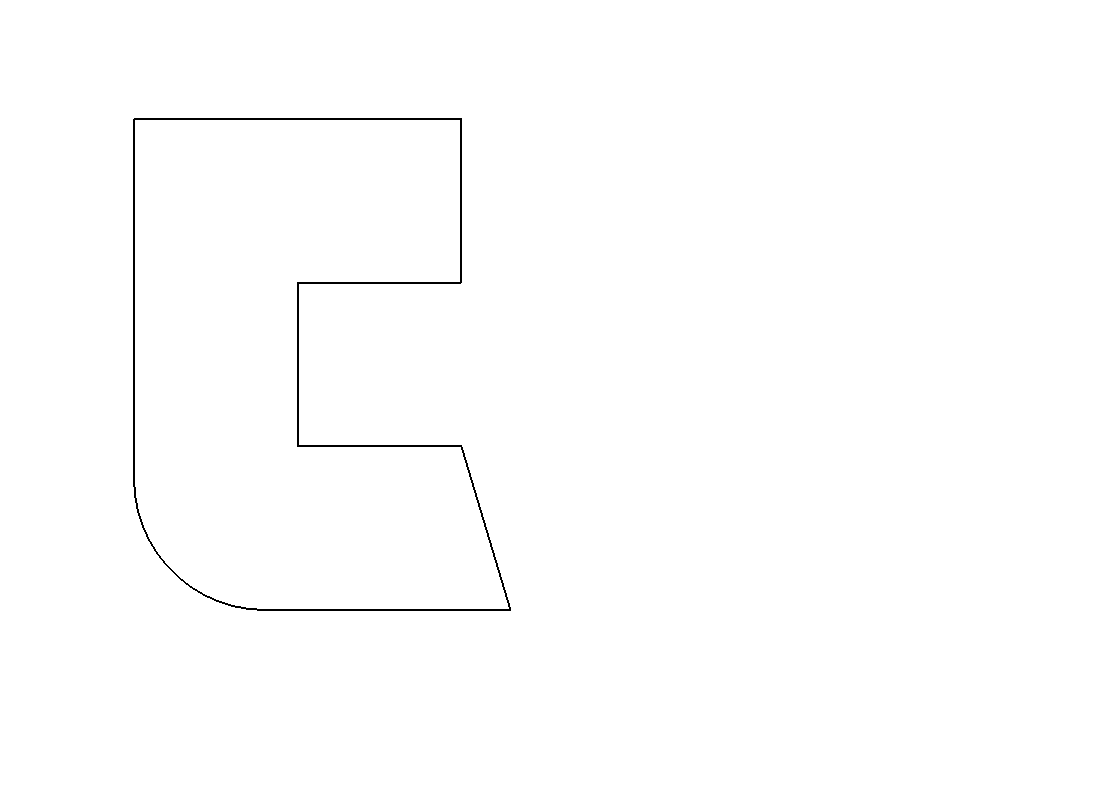

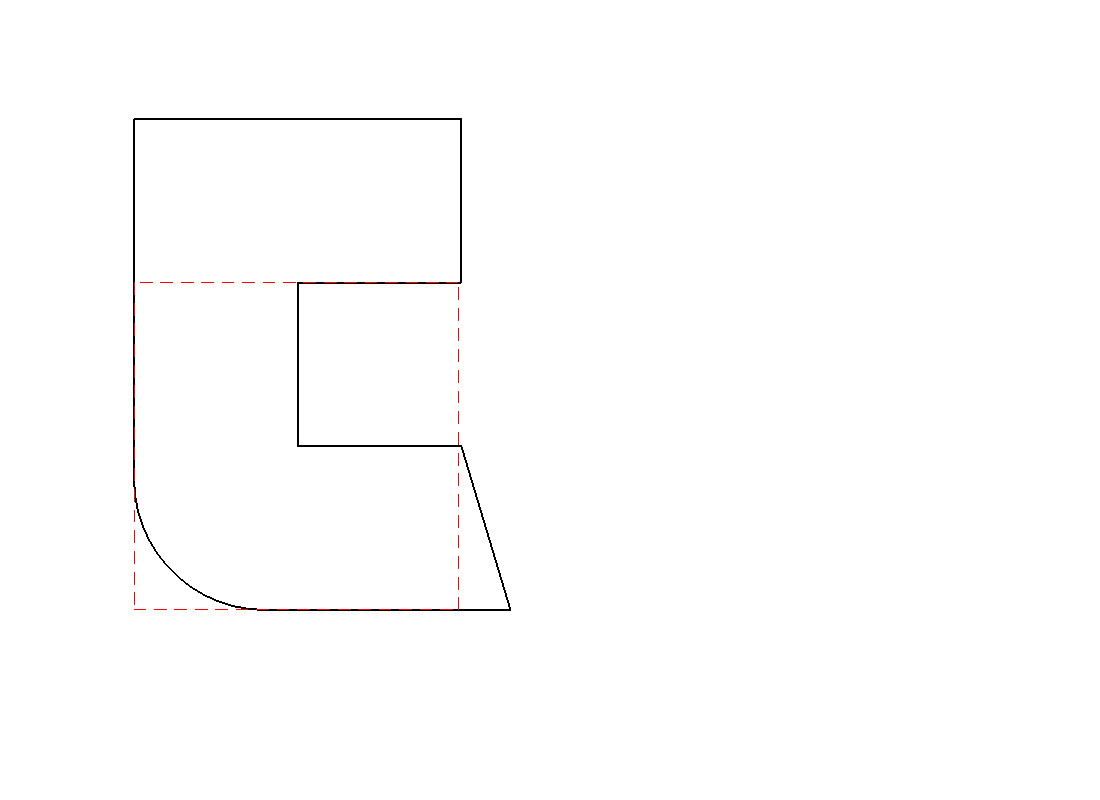

Edit a rectangle until you receive the following result:

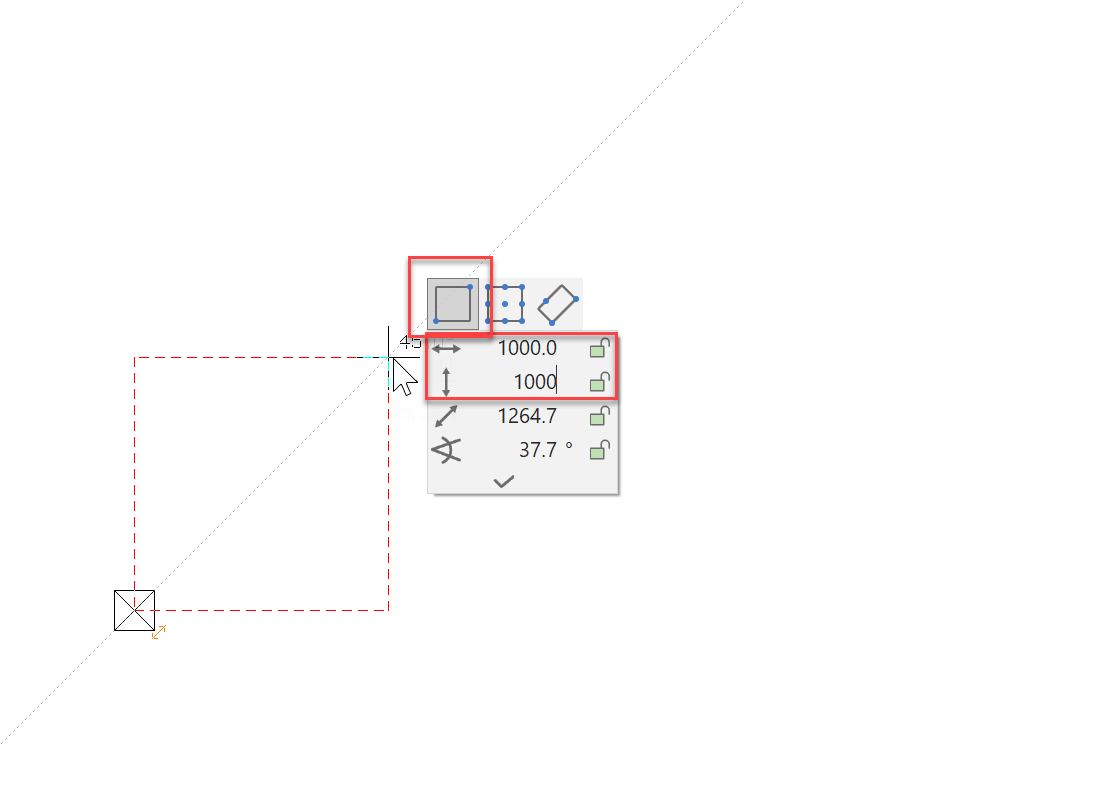

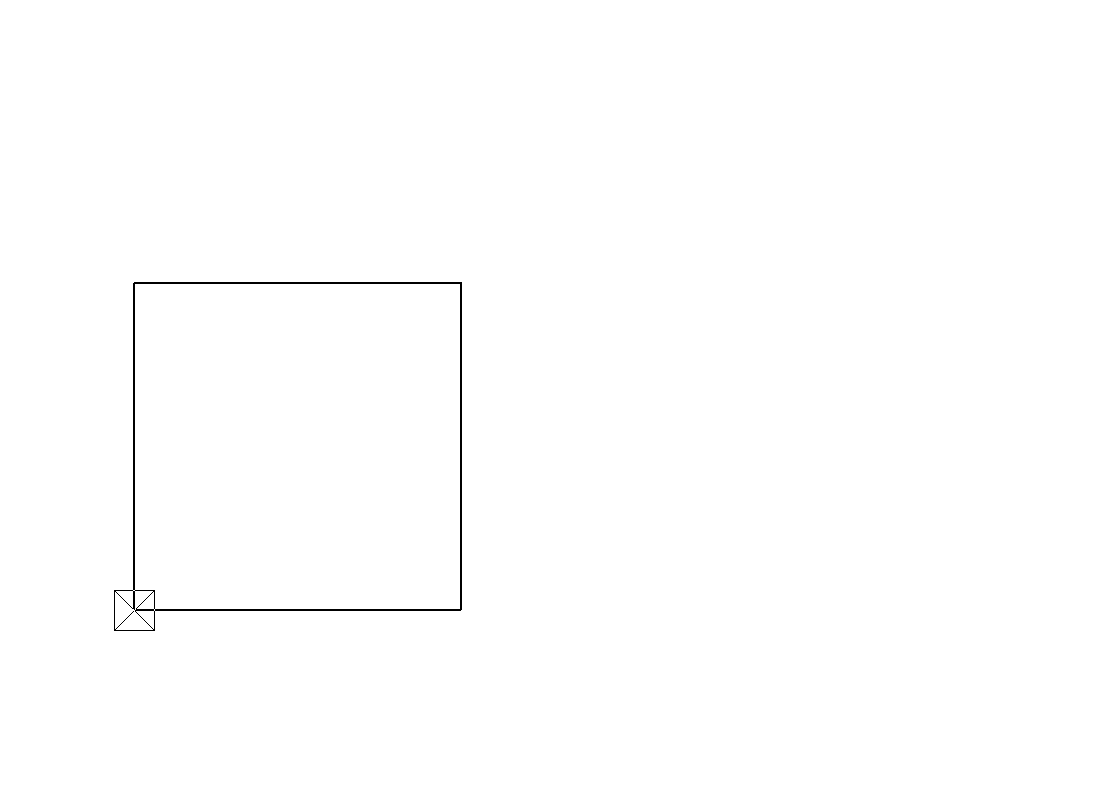

1. Begin with entry of the rectangle. Function RECTANGLE.

   Set the first point of the rectangle at any point on the screen. For the second point, press the Tab key and enter in the value field the x value 1000 and the y value 1000 and confirm your entry.

   End the drawing function by pressing Esc or the CANCEL function.



2. The first manipulation function is the extension of a polygon.

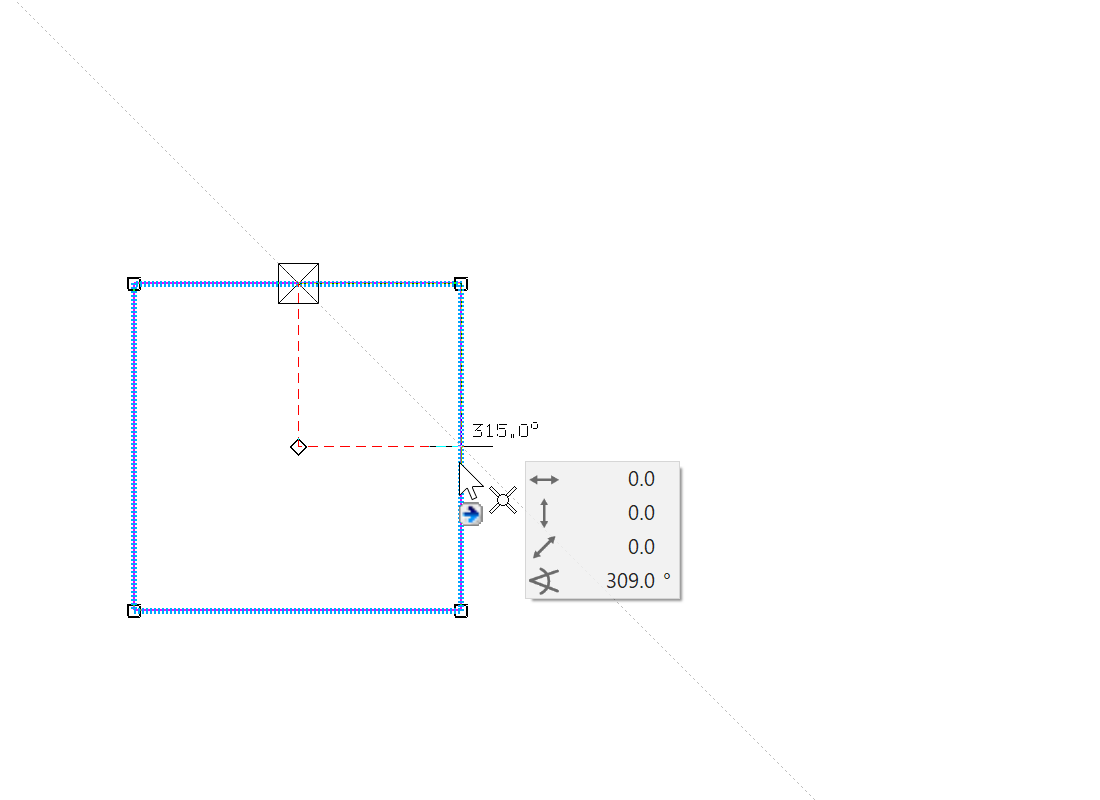

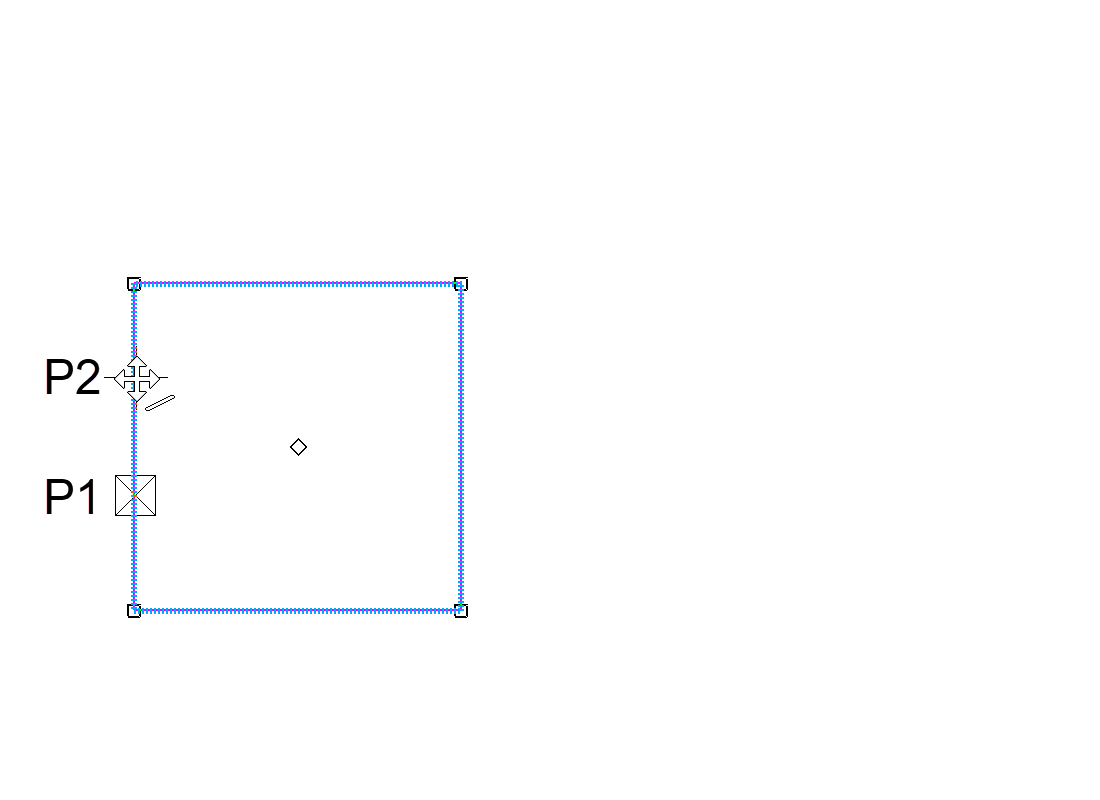

   Select the rectangle (P1). Move the cursor to an element of the polygon until the quadruple arrow appears. With one click (P2), you activate the current manipulation function in the input assistant.

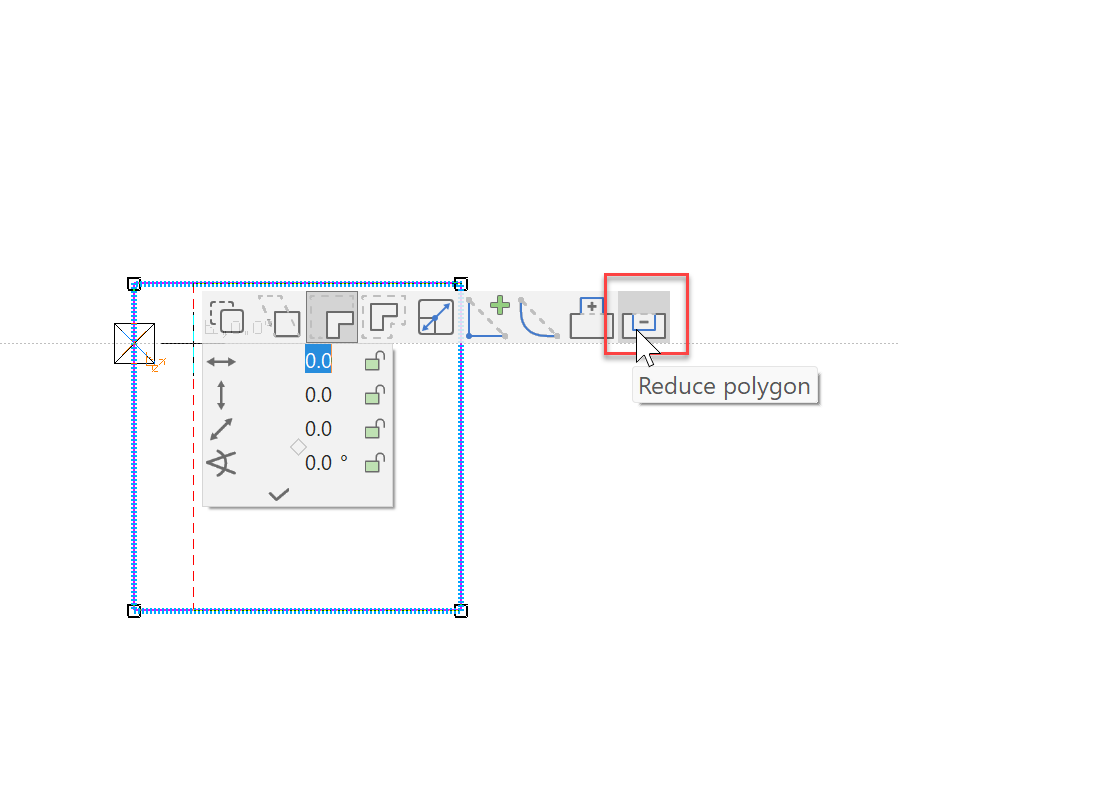

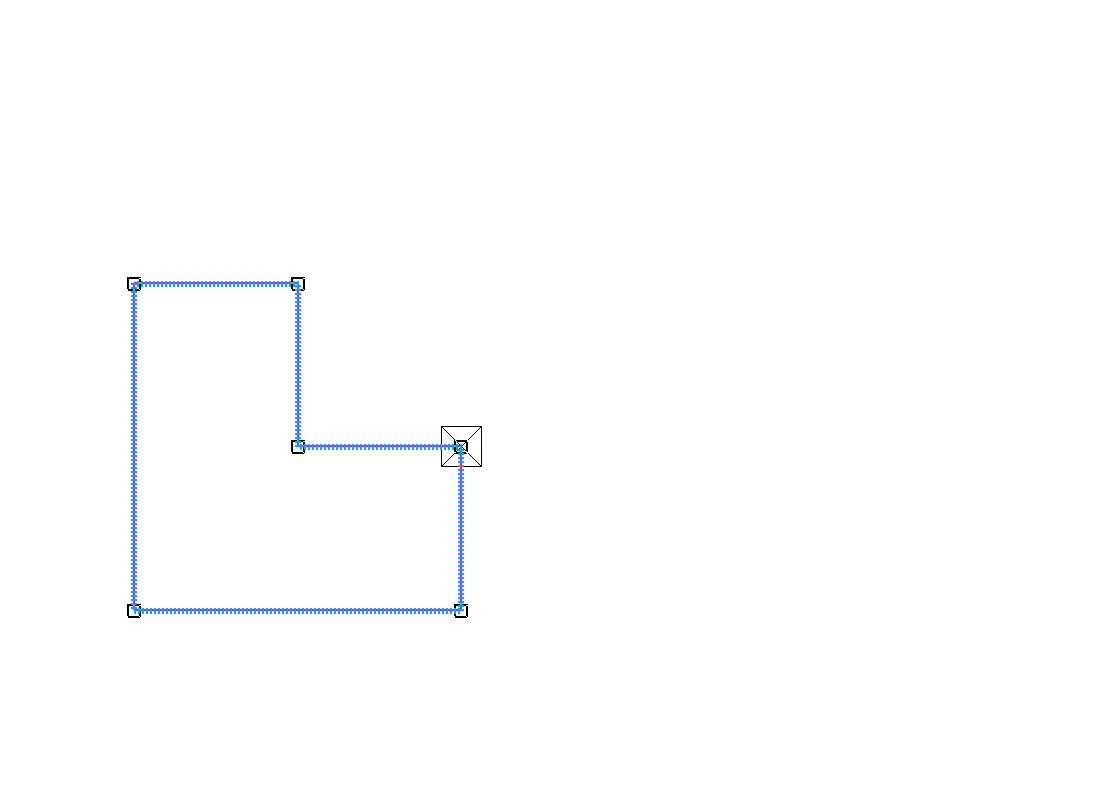

To display the selection of the function, press the Tab key.	Select the function REDUCE POLYGON.

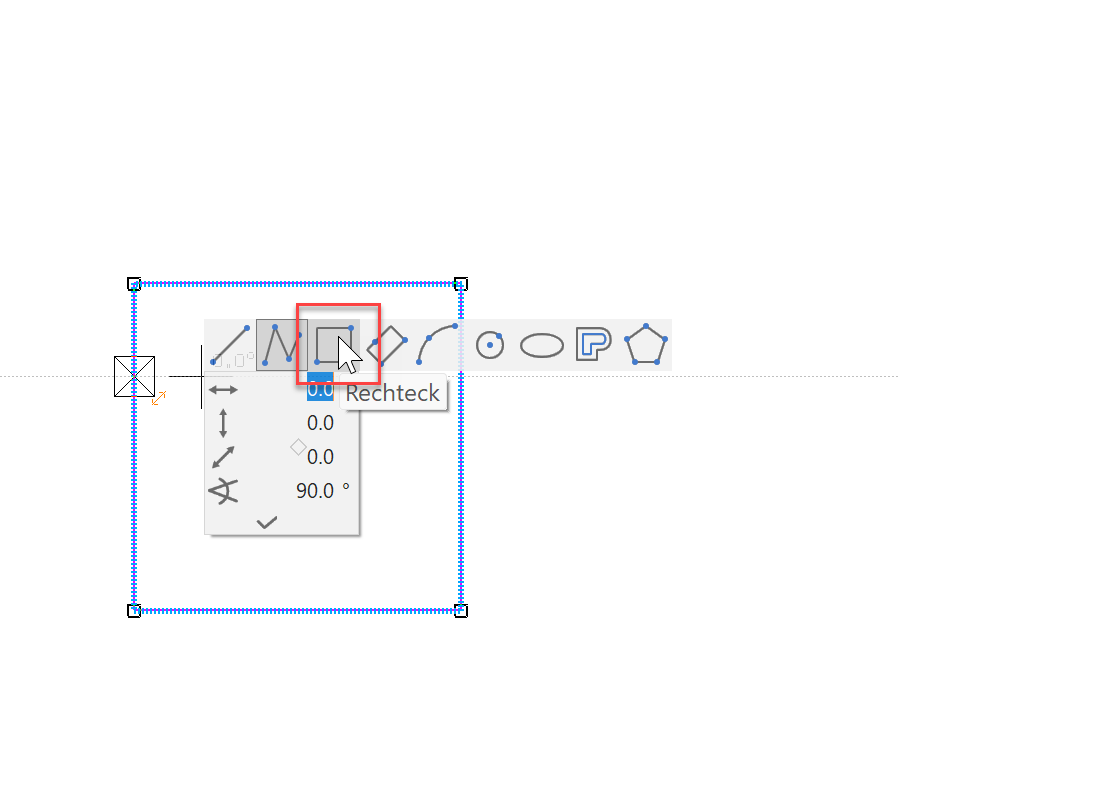

RECTANGLE drawing function

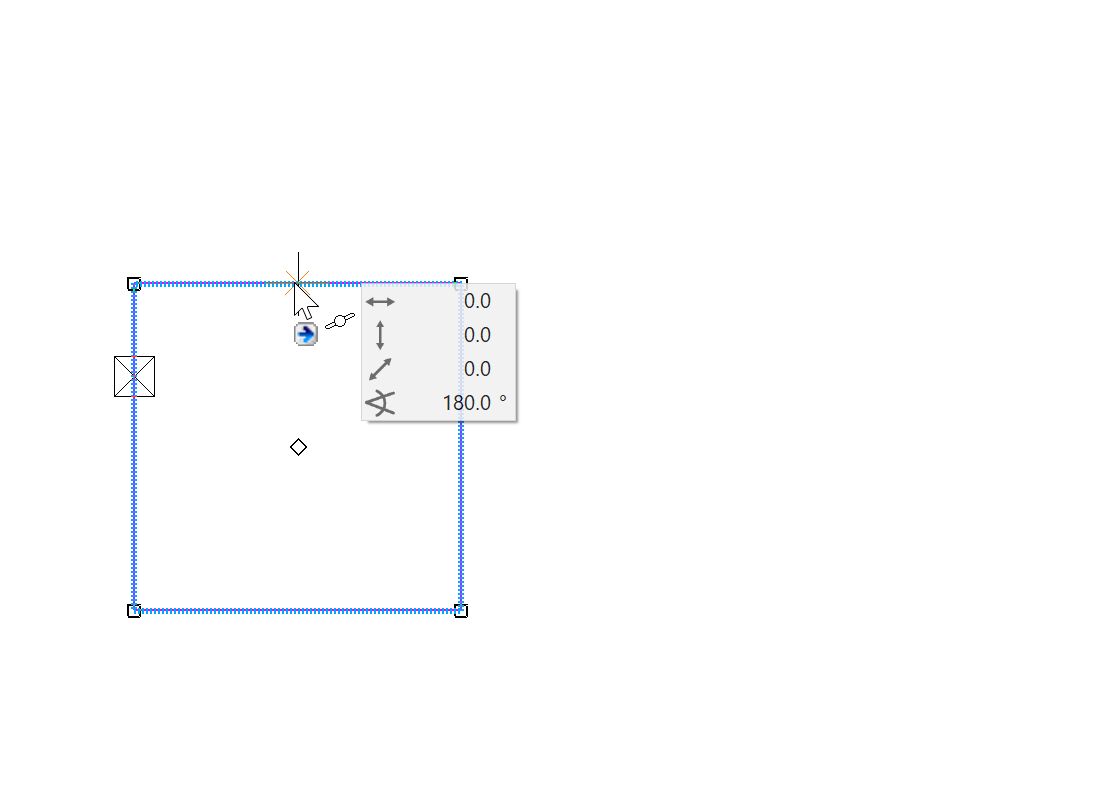

Start point lies on the middle of the element	End point lies on the middle of the element

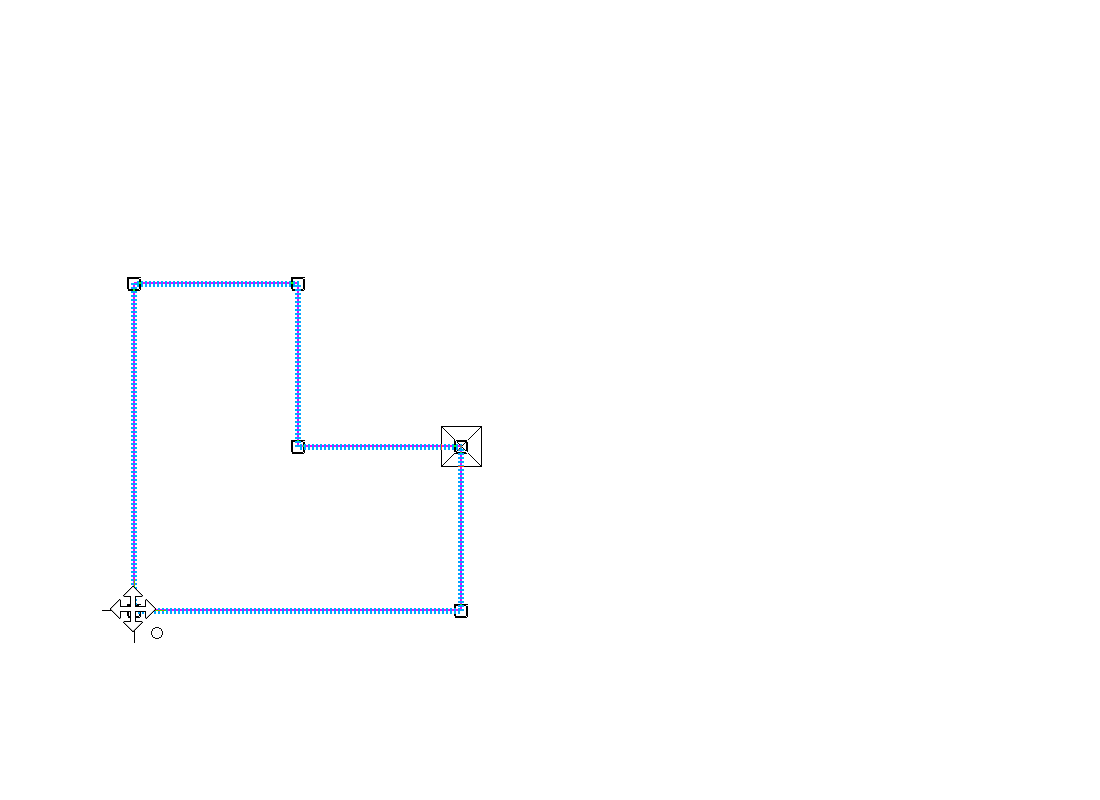

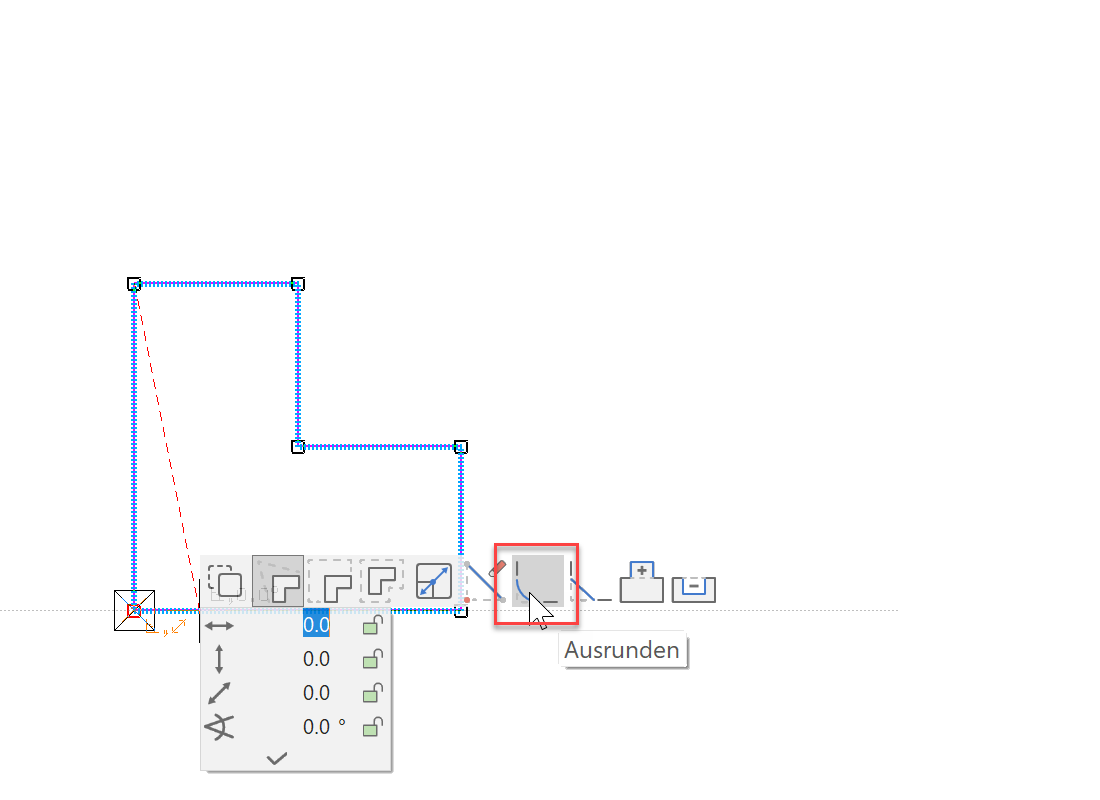

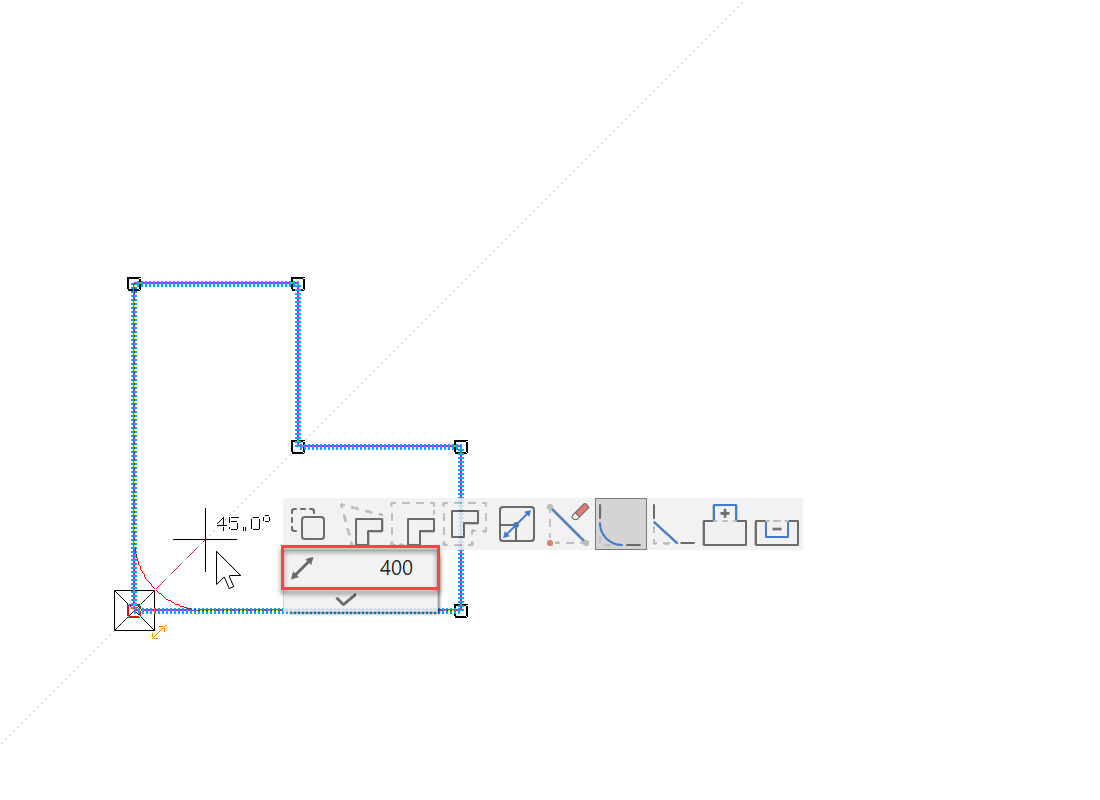

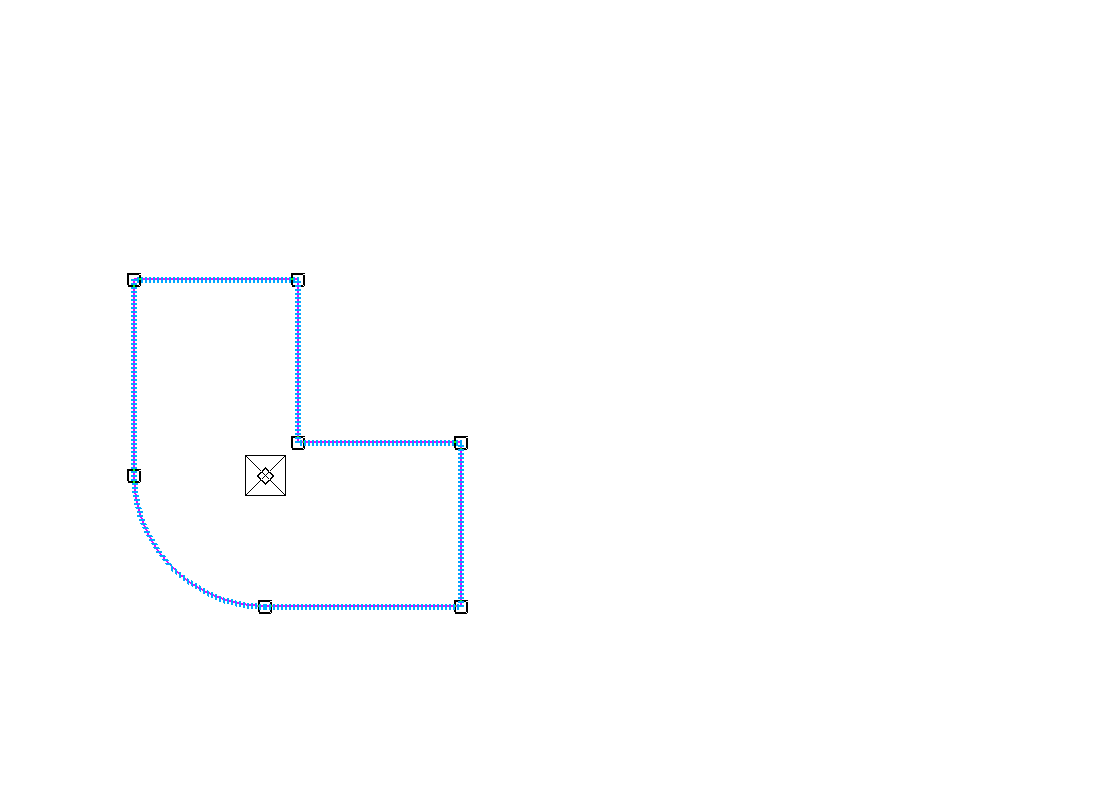

3. Another manipulation option is the filleting or chamfering of a corner. In the example, the lower left corner is to be filleted.

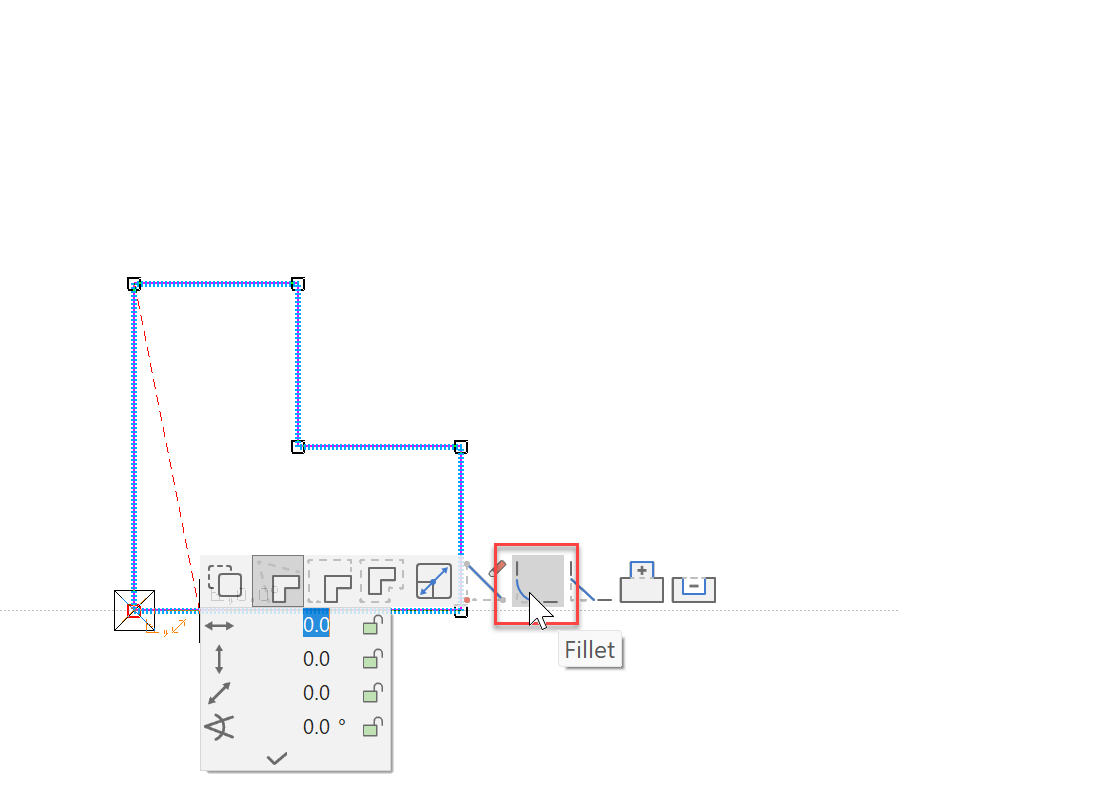

   Click in the corner	Tab key, FILLET
   Enter radius 400	Confirm

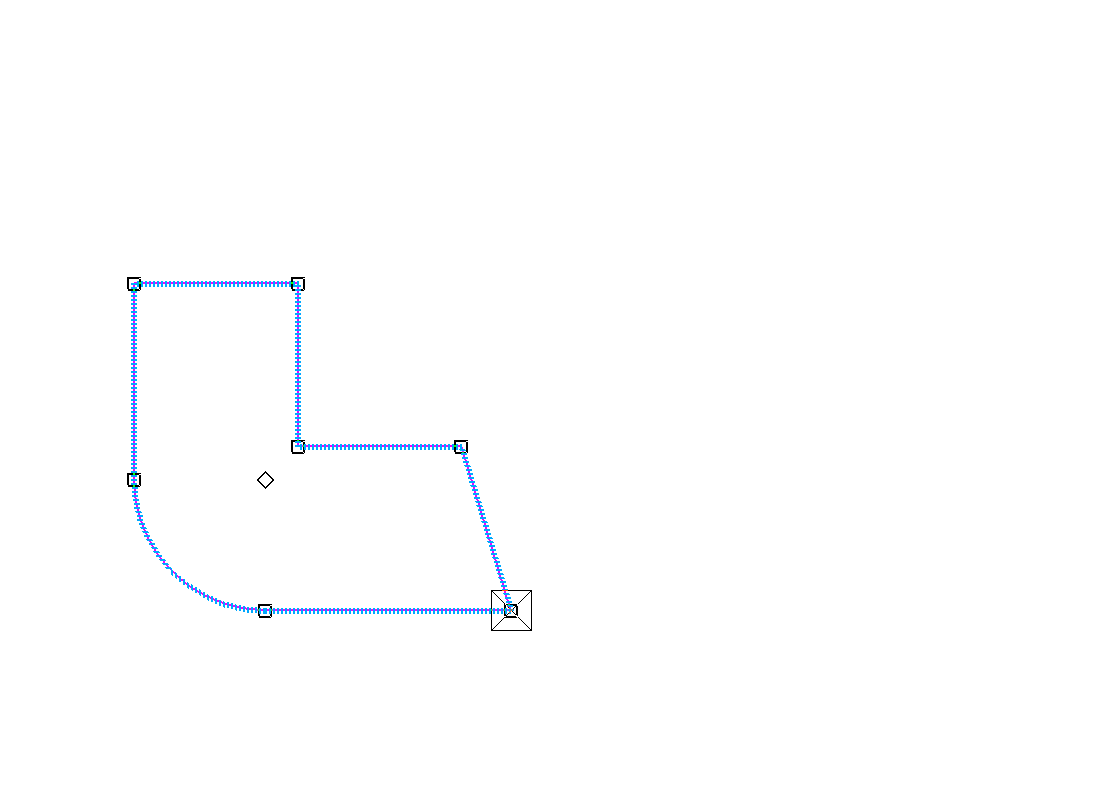

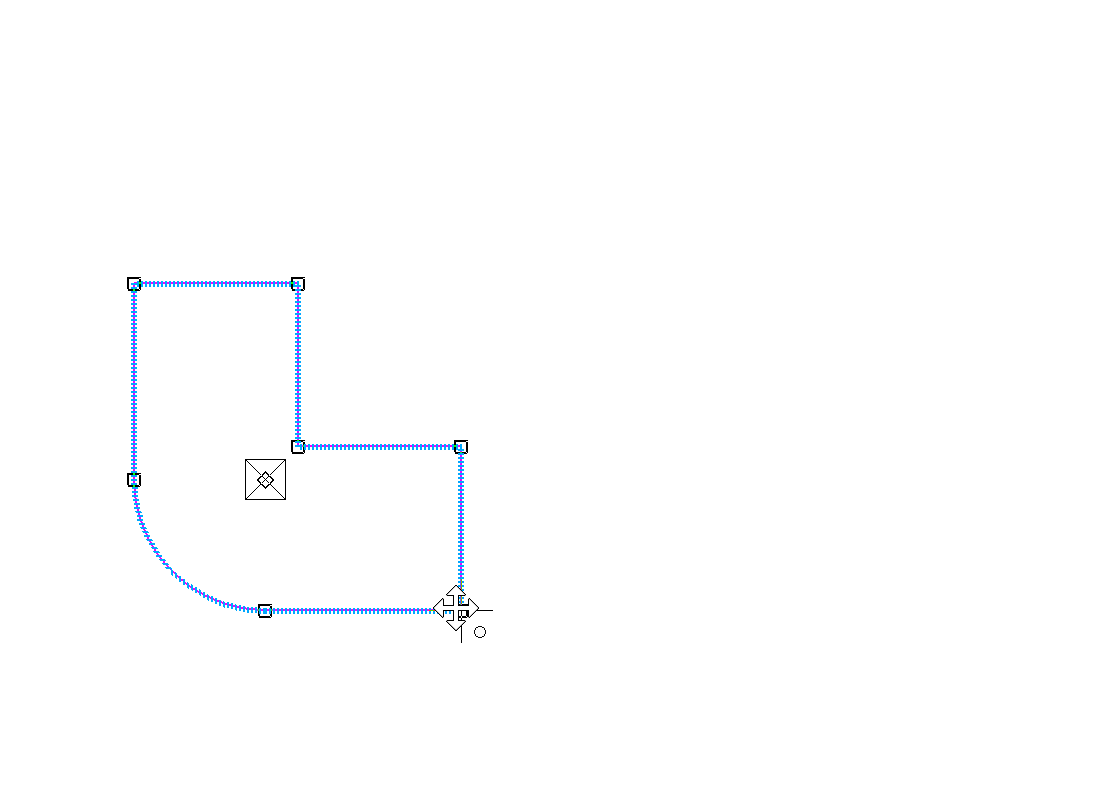

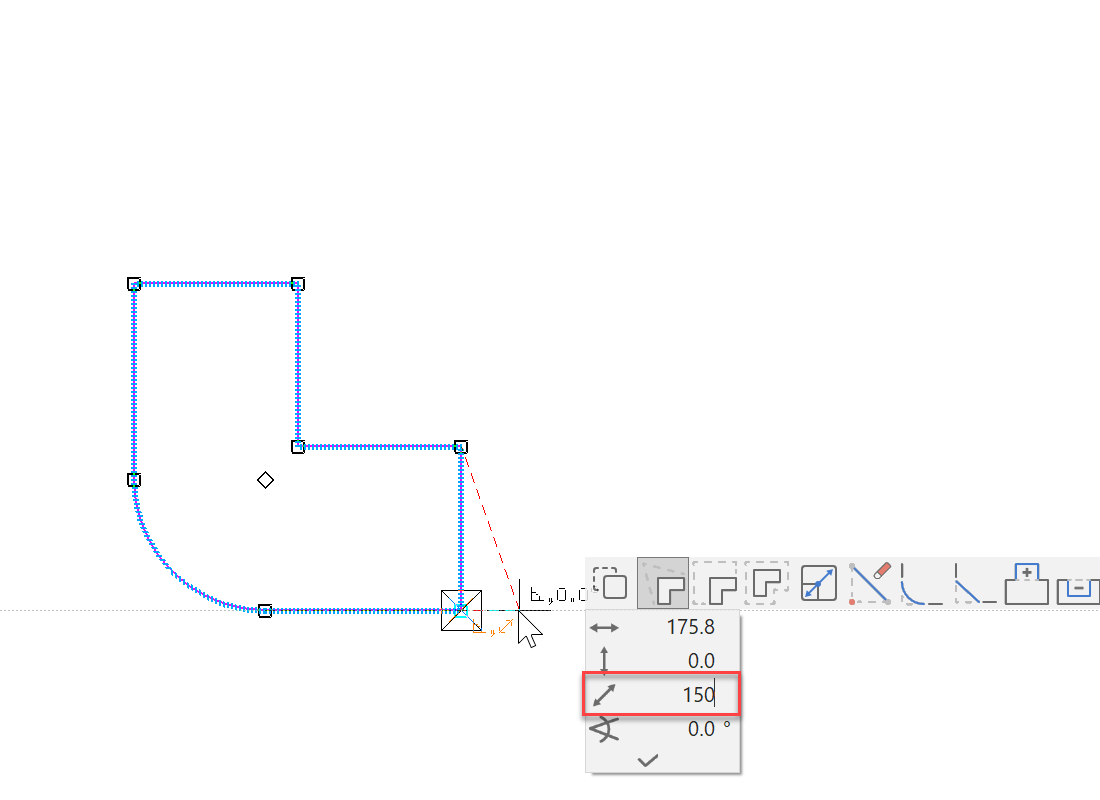

4. The next manipulation is stretching a point. The right lower point is to be moved 150 cm to the right.

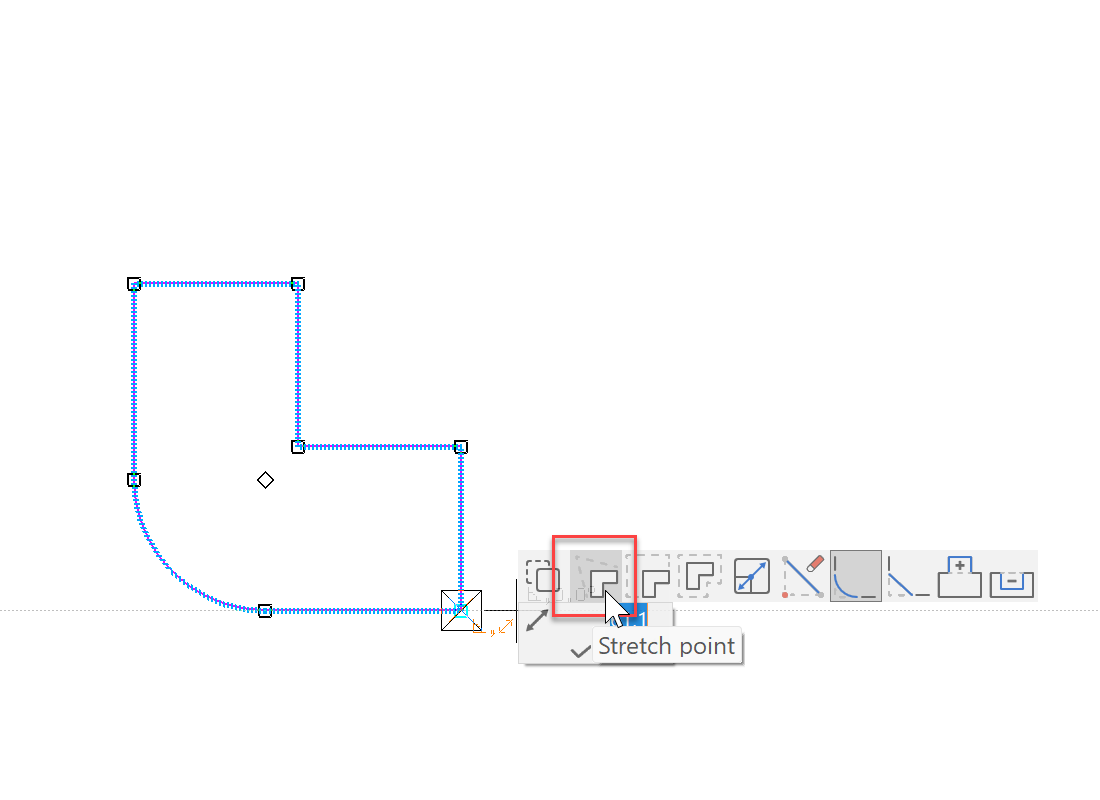

   Click in the corner	Tab key, STRETCH POINT
   Distance to element, 150

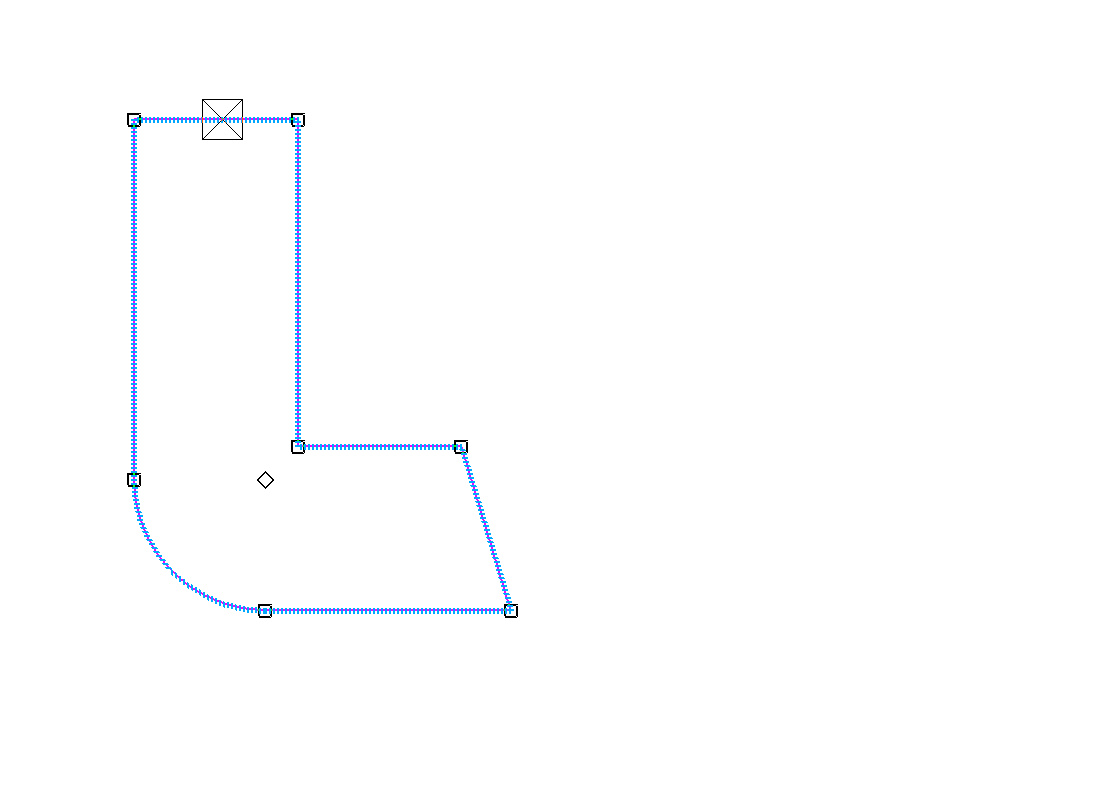

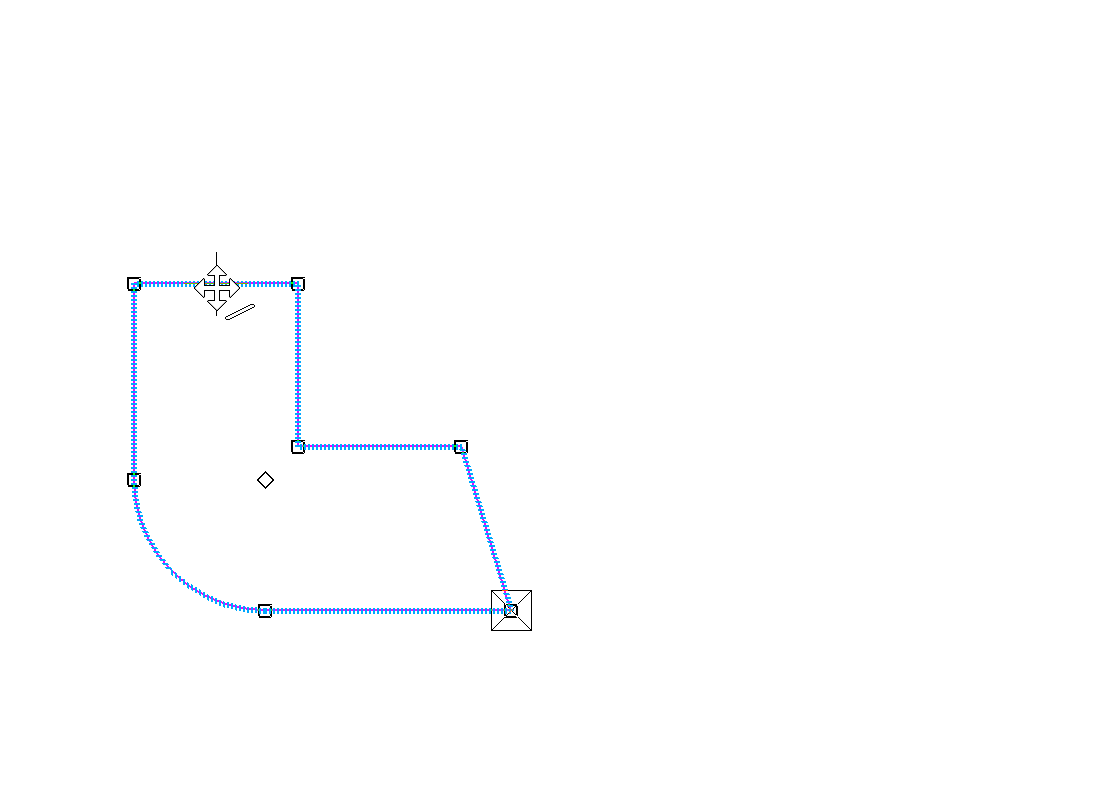

5. The upper edge must be stretched upwards by 500 cm.

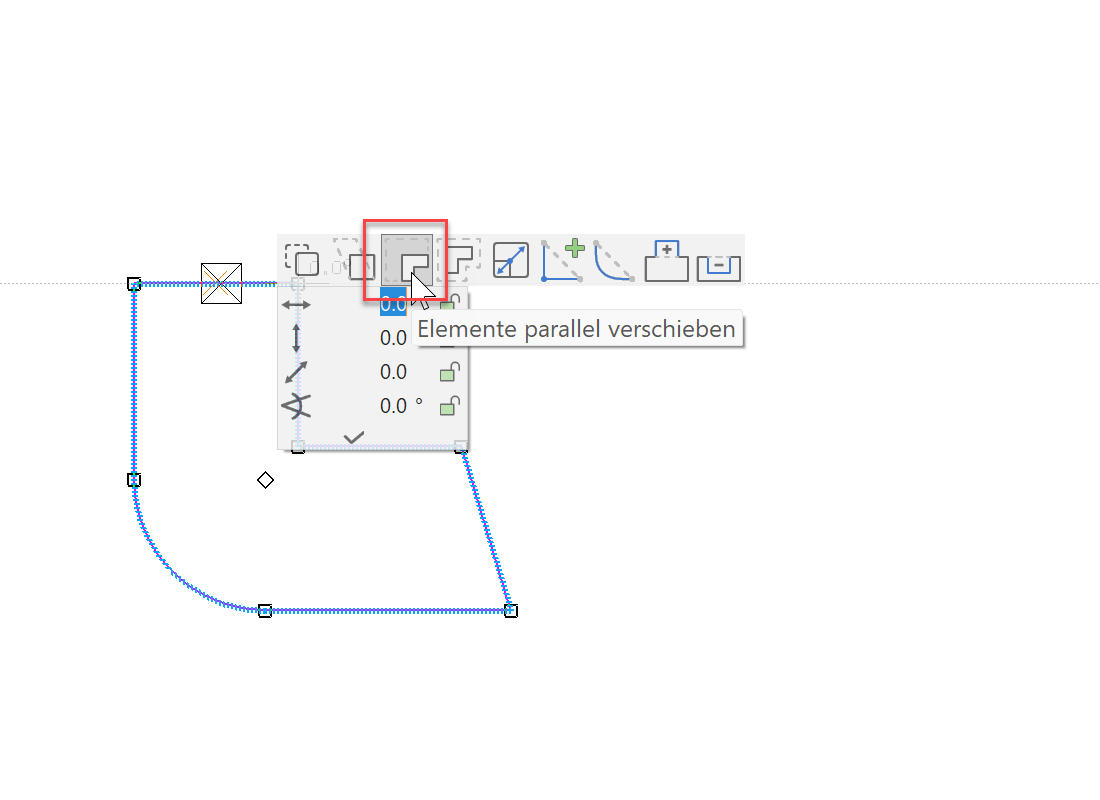

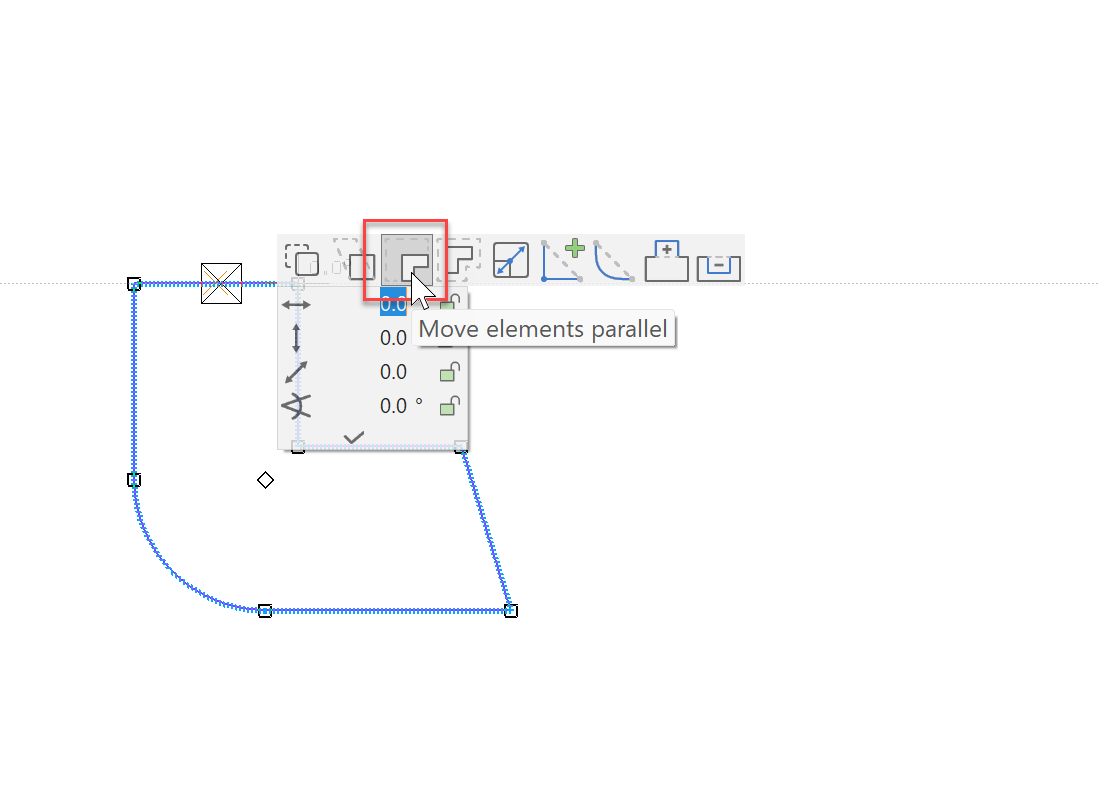

   Click on the edge	Tab key, MOVE ELEMENTS PARALLEL
   Move cursor to the perpendicular help line and enter the direct value 500 in the value field.

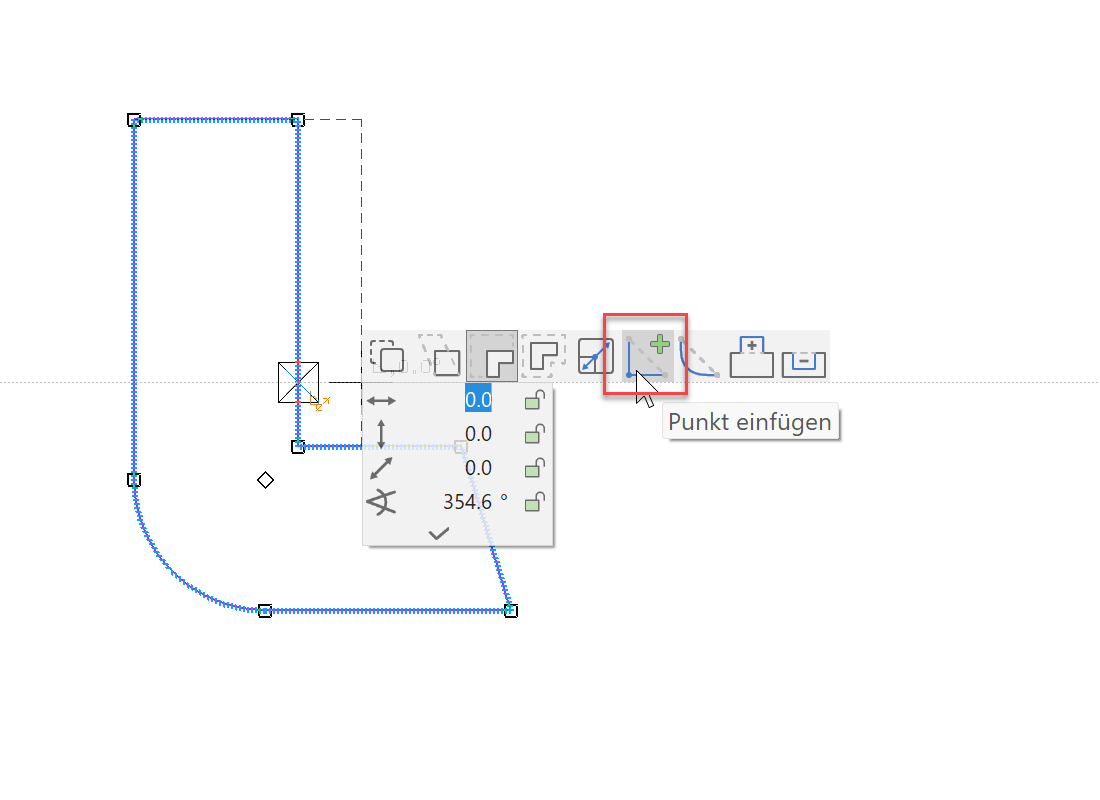

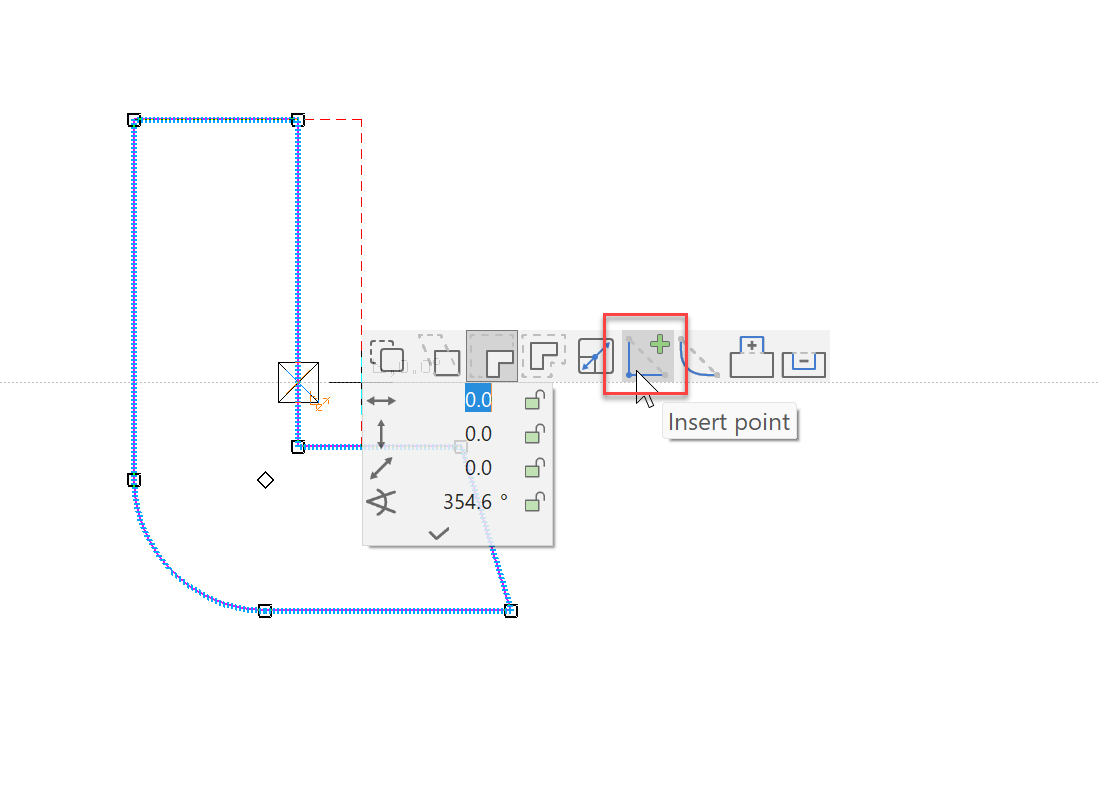

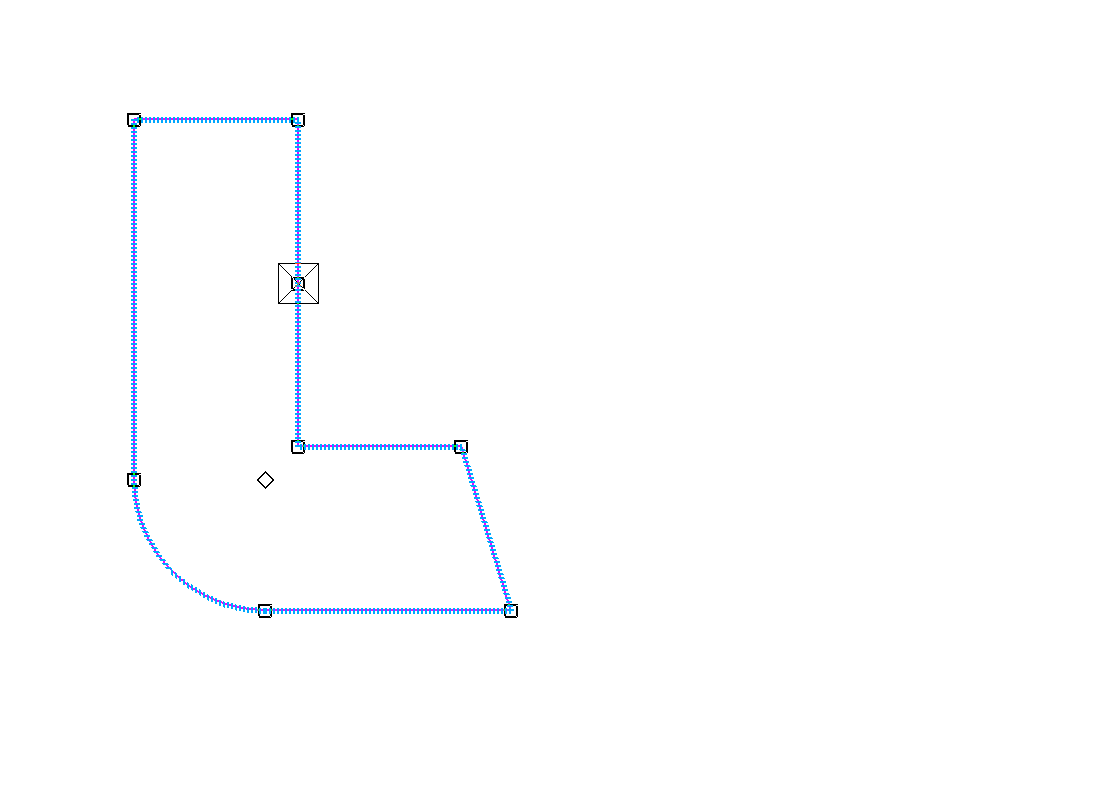

6. The INSERT POINT function splits an element and enters a point that can be set at the desired position straight away.

   Click on the element	Function INSERT POINT
   Set point to middle of element	New point with handle

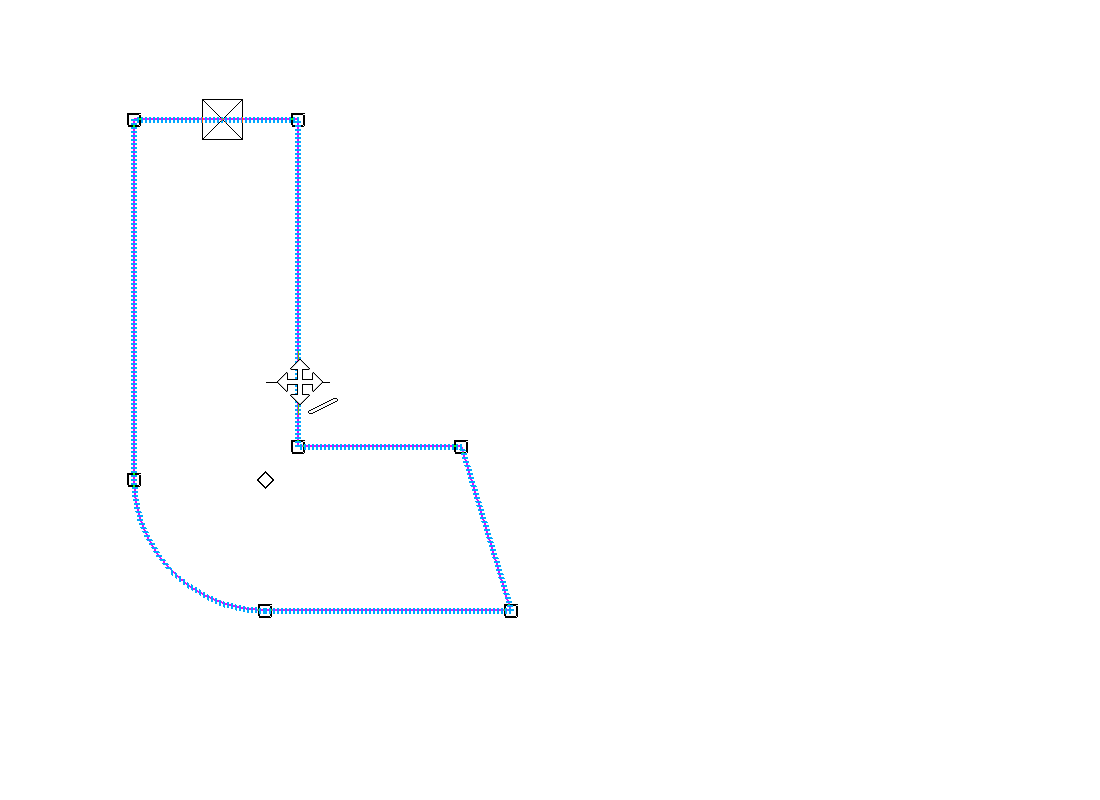

7. Until now the manipulations were performed on the entire polygon; now however only one element can be selected. Before the element is selected, you must switch to the selection mode element part.

   Remove existing selection with the Esc key or by left-clicking into an empty space.

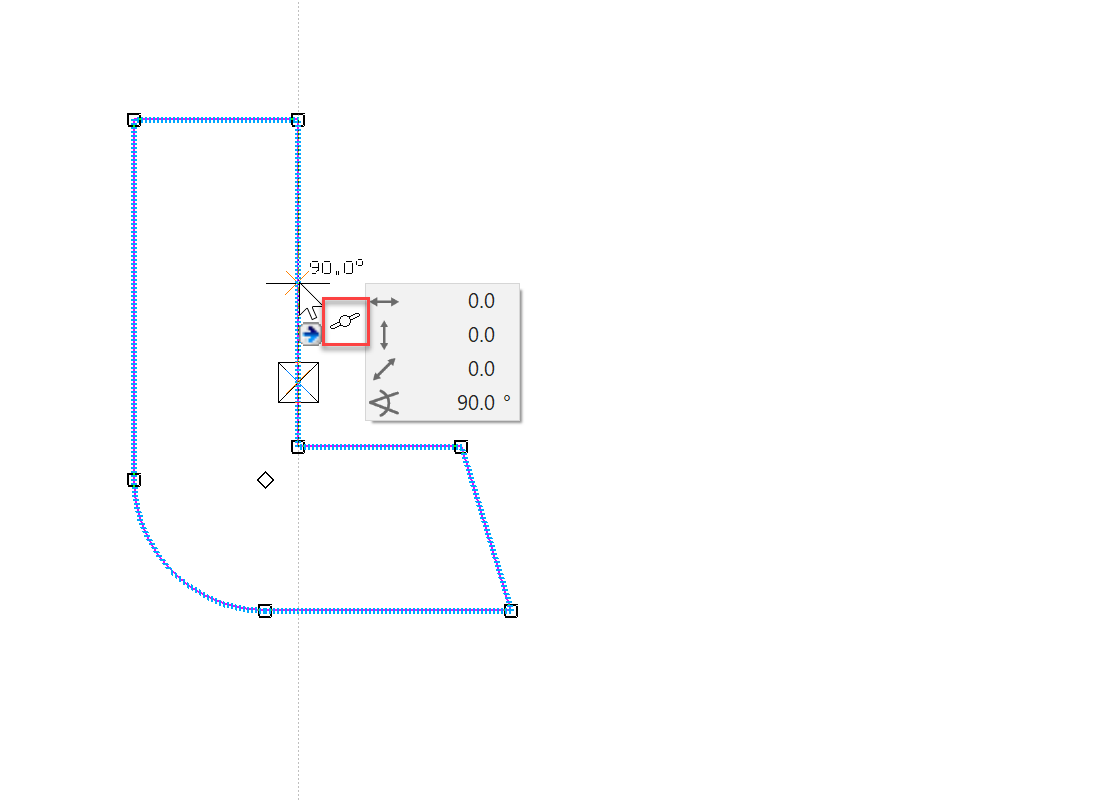

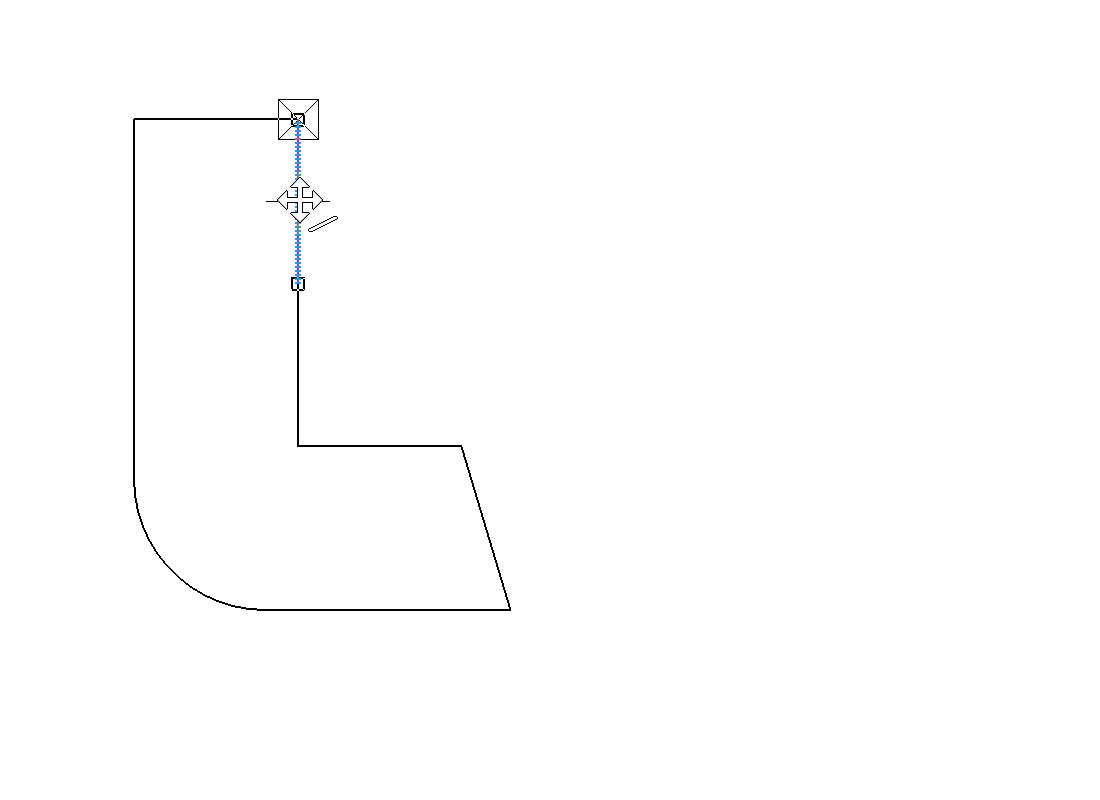

   Mark element	Click for manipulation mode

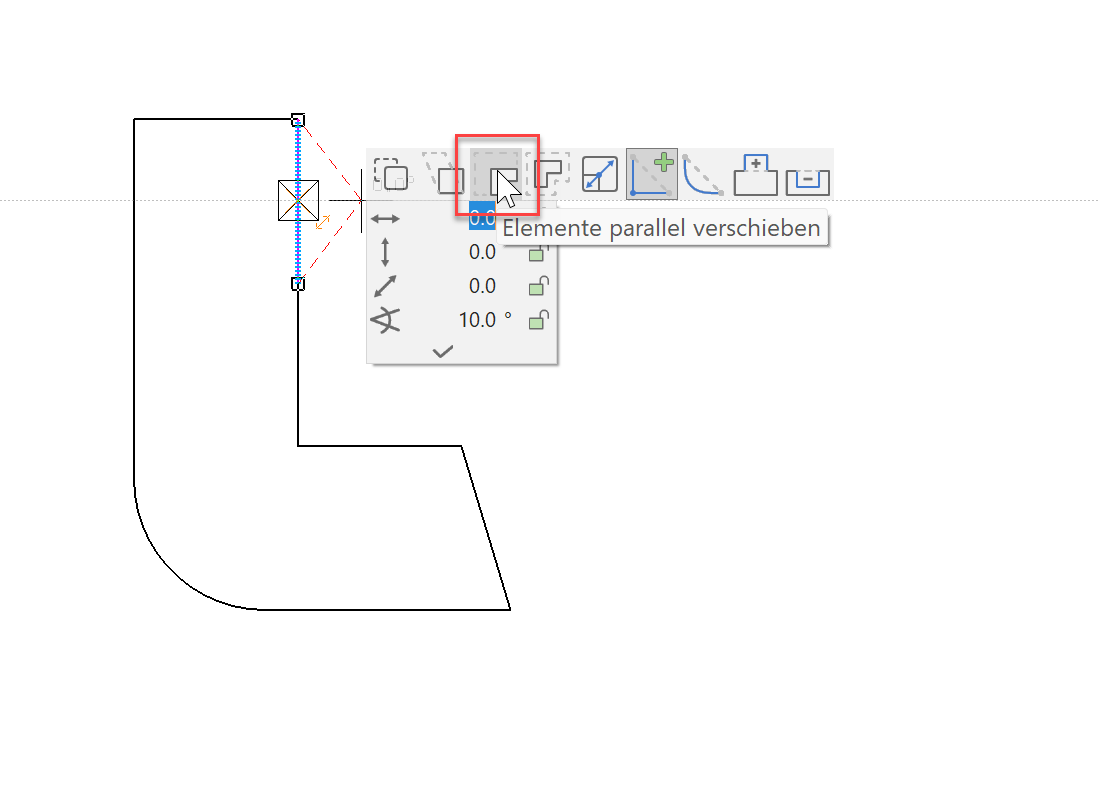

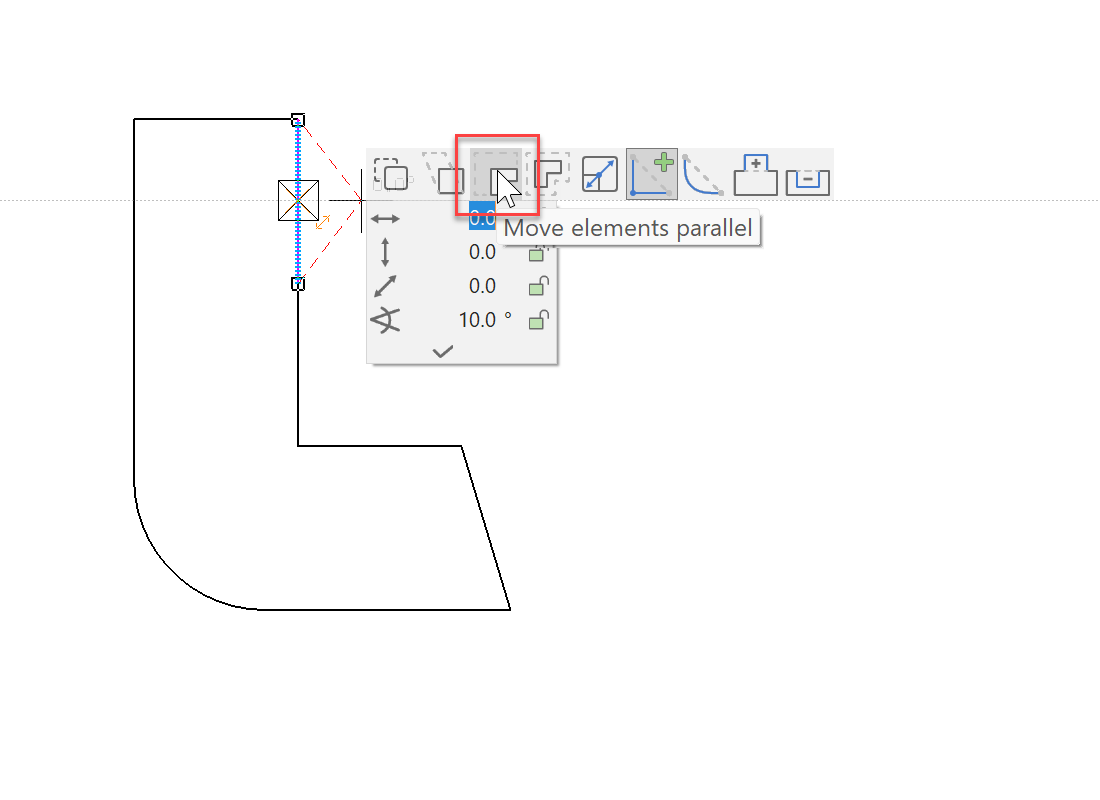

   Function MOVE ELEMENTS PARALLEL

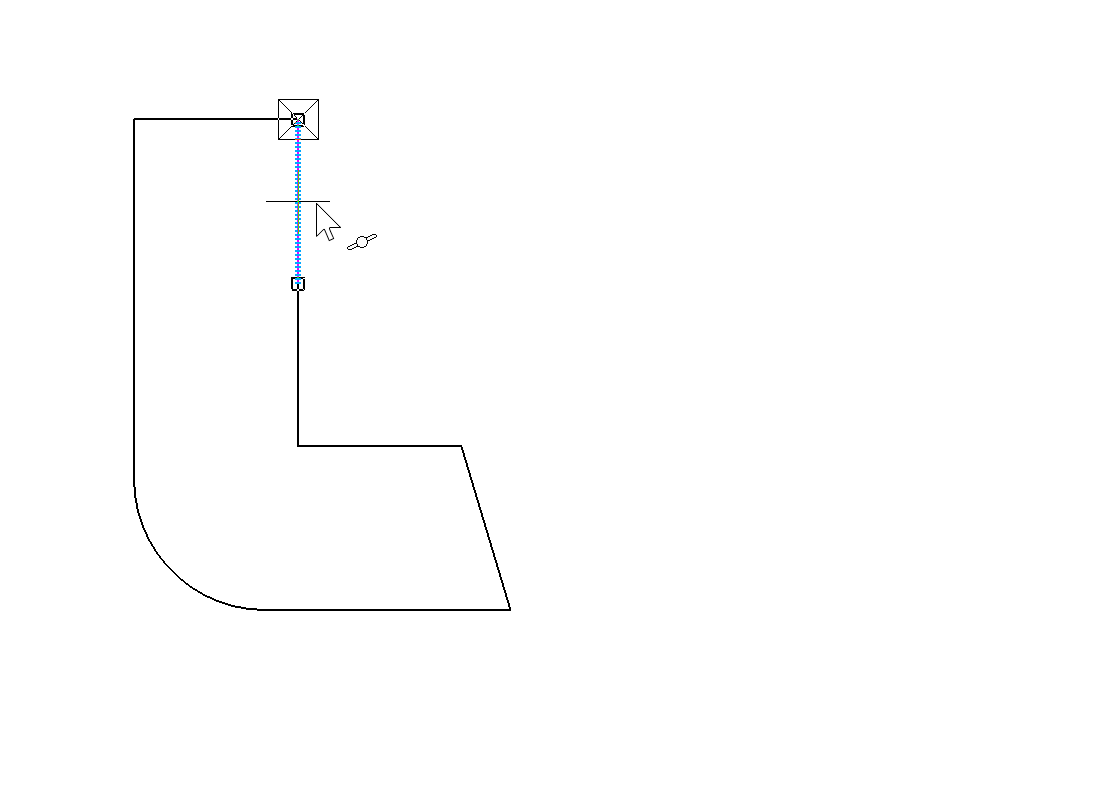

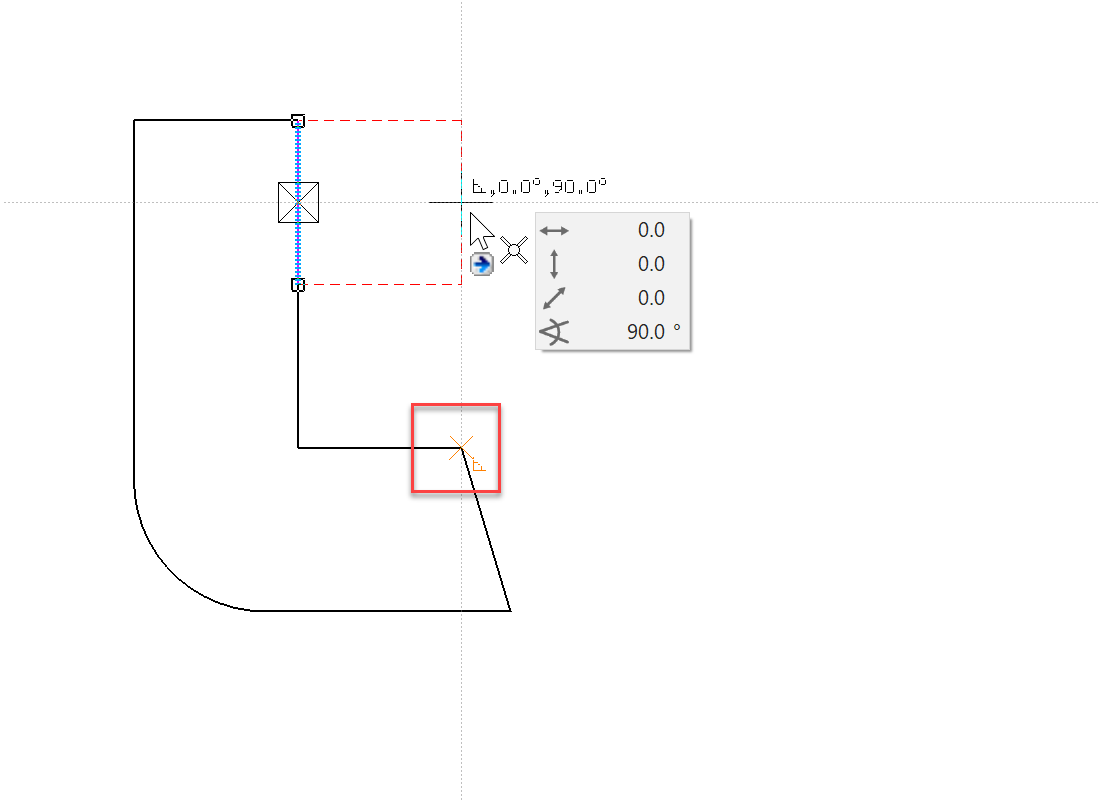

   Move the element out and move the cursor to the lower point until the capture point symbol appears on the cursor. You can then be sure that the element is located perpendicular above the point.

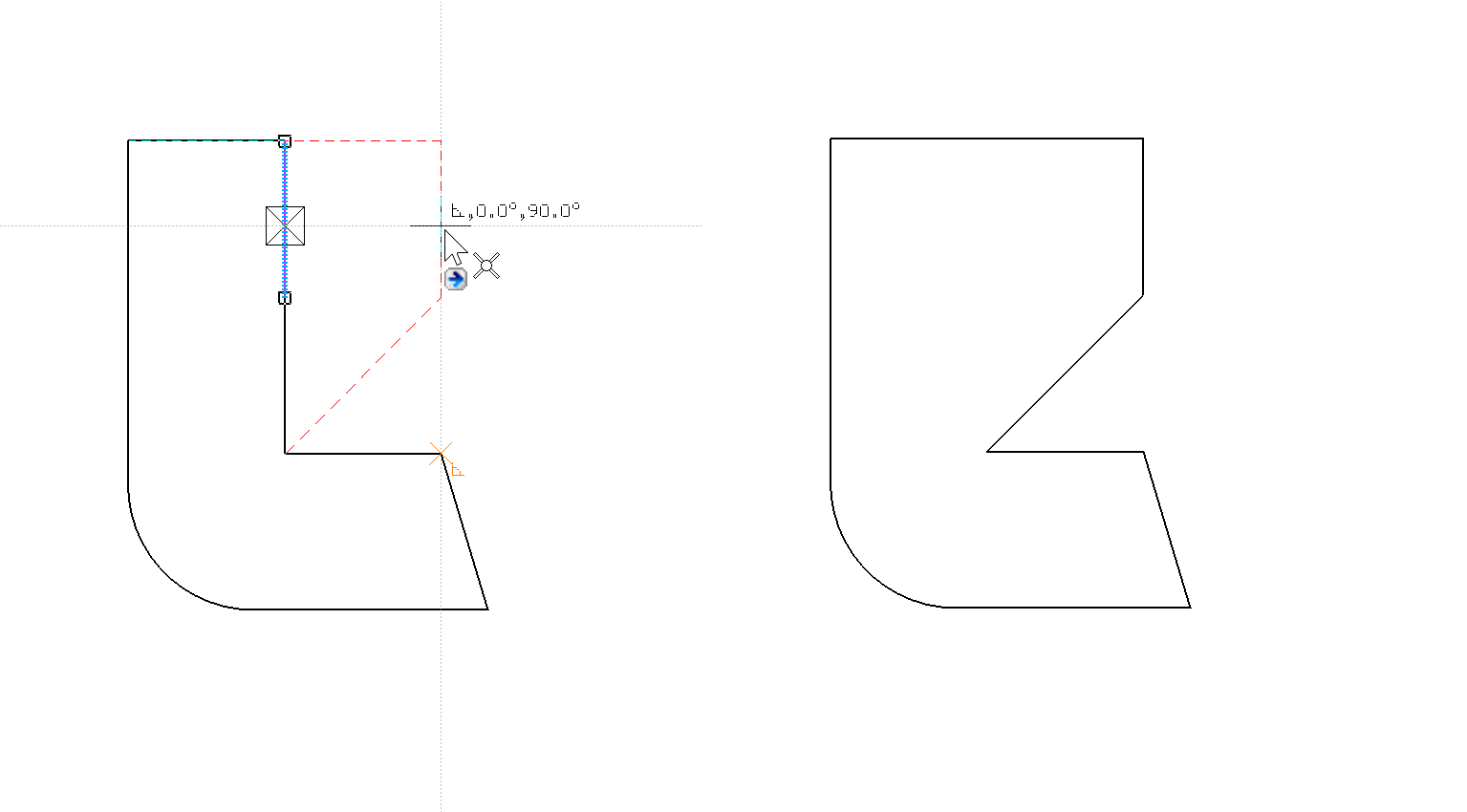

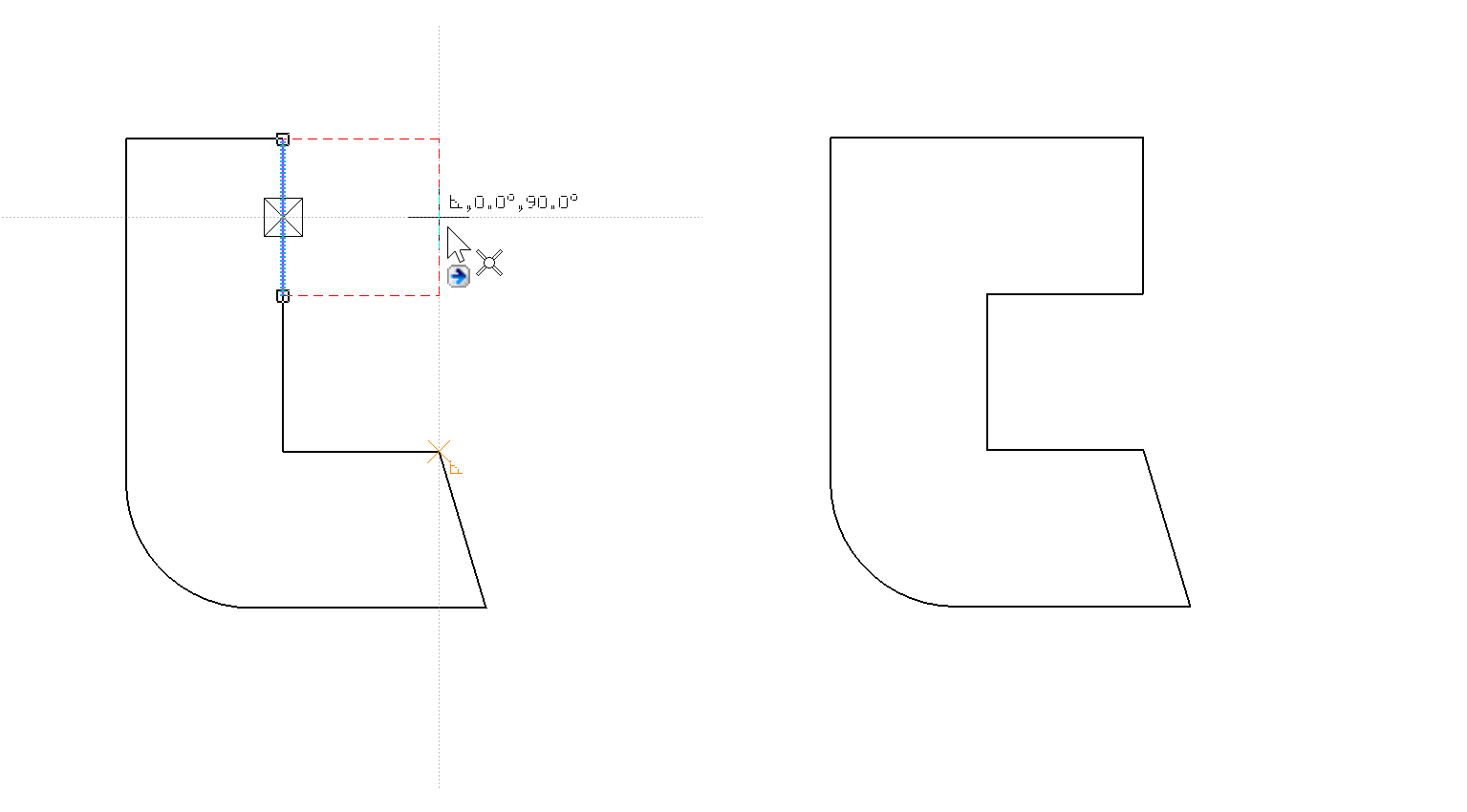

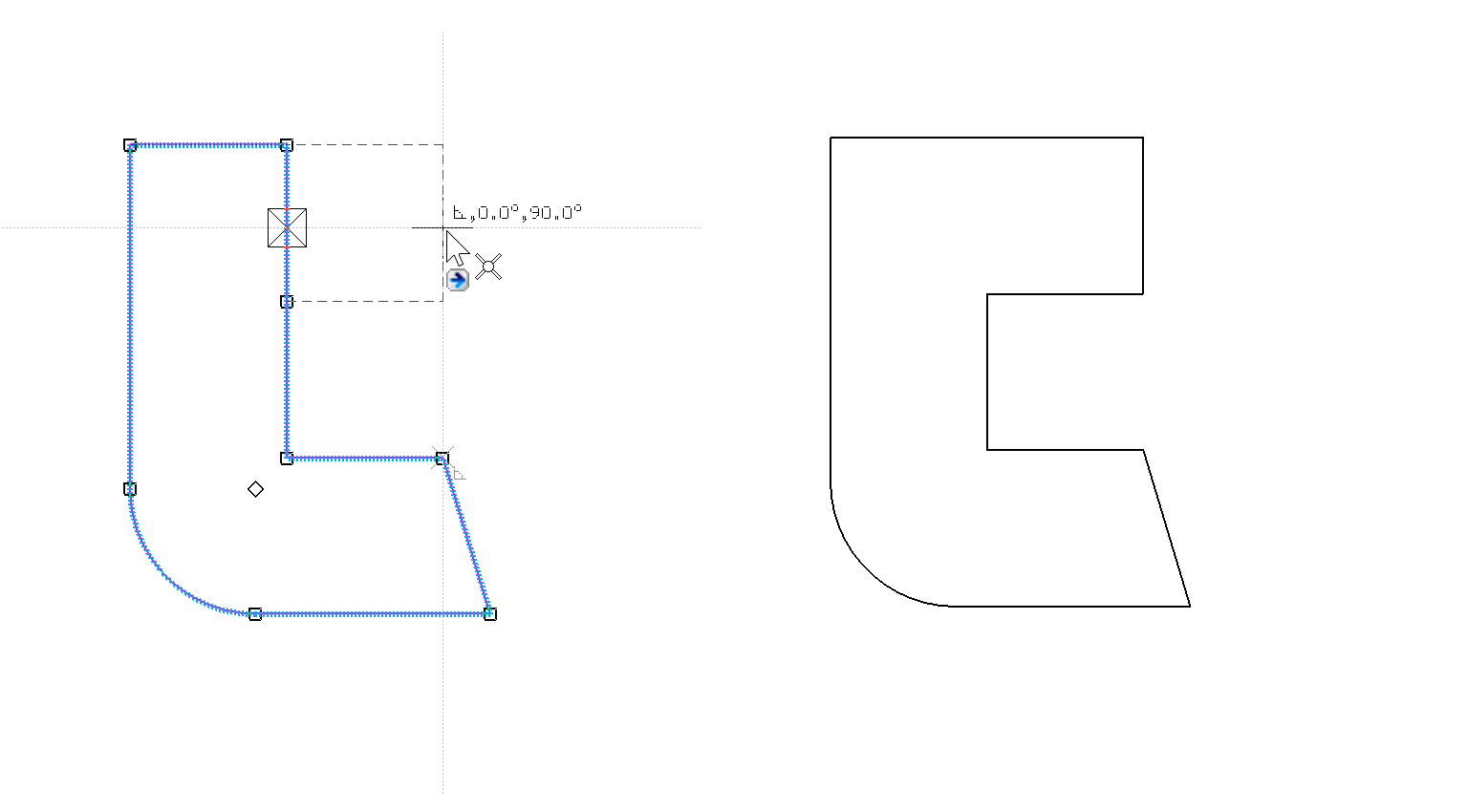

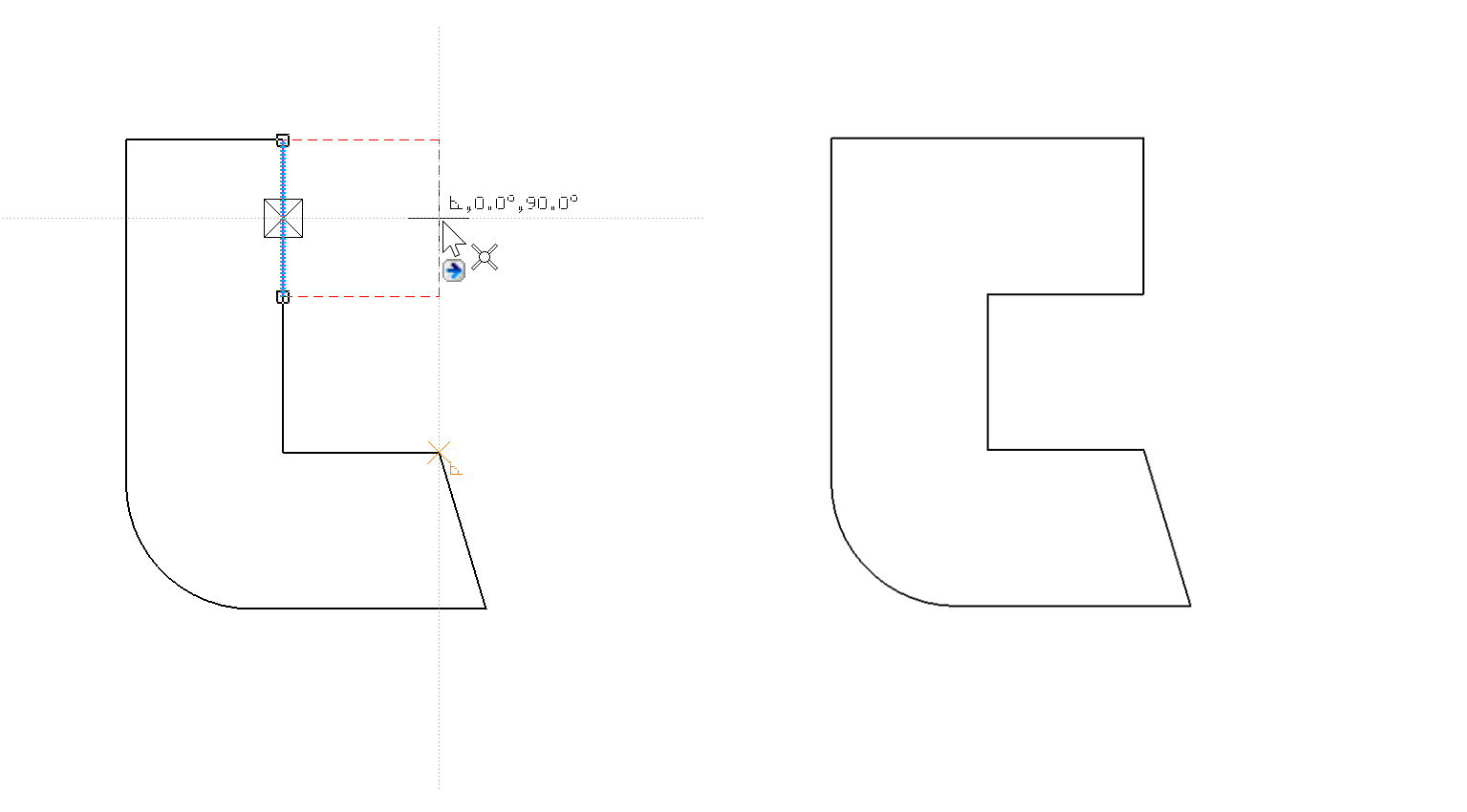

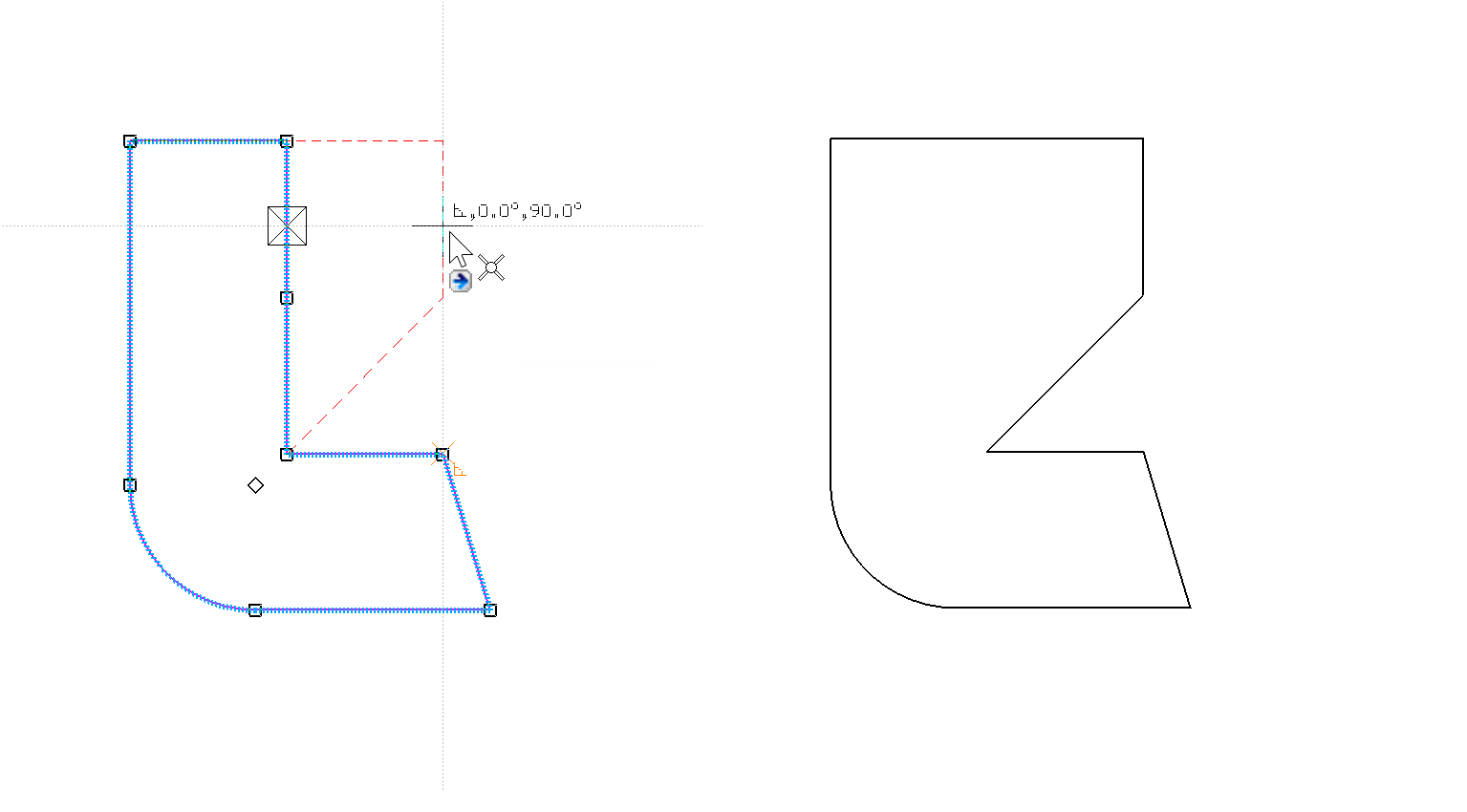

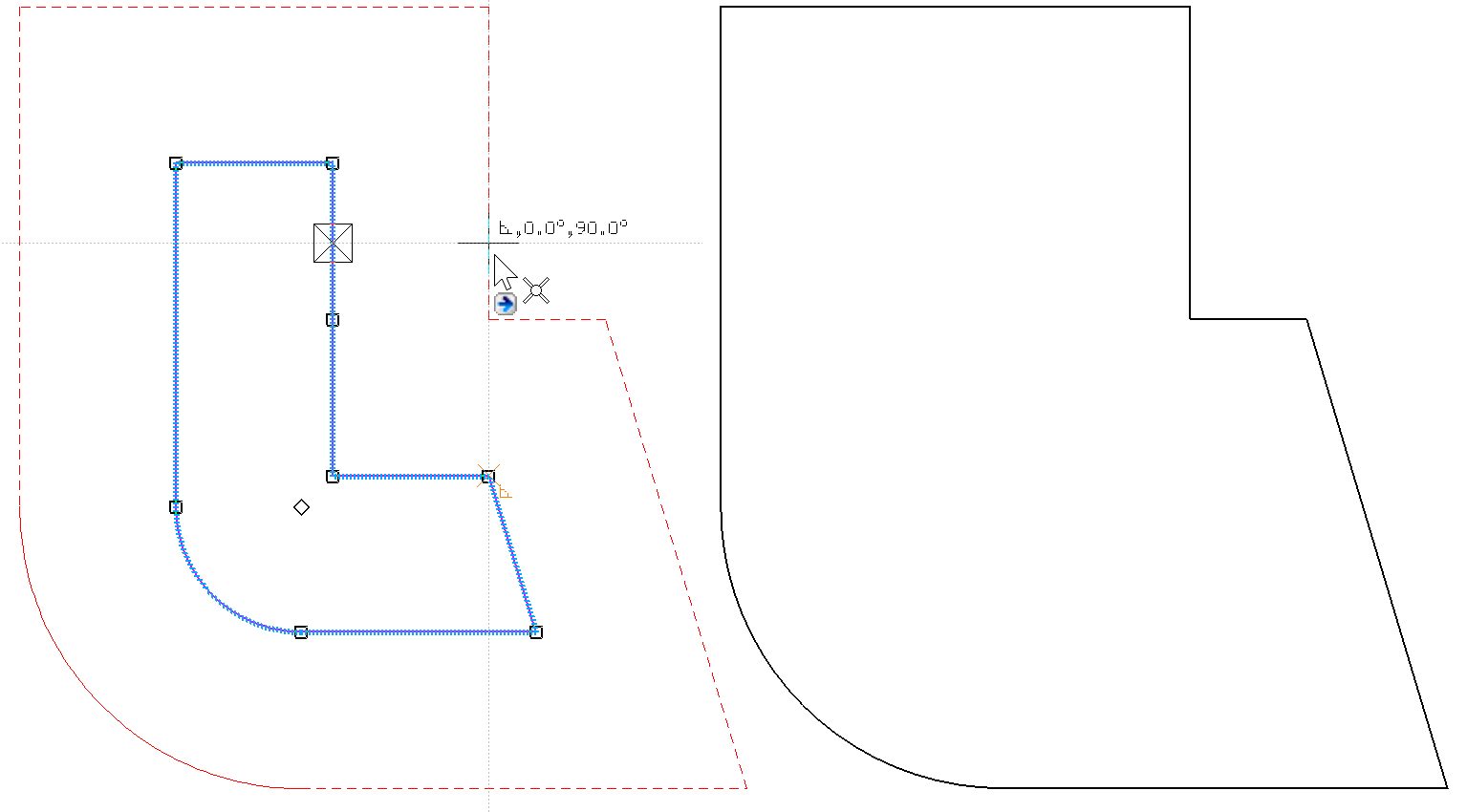

   This step will look different when the various functions are used. Below are some examples so you can see how these functions affect an existing polygon.
   Can you recreate these different shapes? Use the UNDO function to try each combination.

   Manipulation	Icon	Part selection activated	Part selection deactivated
   Move elements parallel
   Stretch elements
   Move all elements parallel

8. Open a new file and deactivate the selection element part mode.
