Show Info¶

Display bottom of pipe¶

Drainage property bar

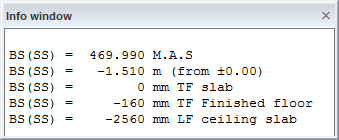

The function is used to output height information in the info window.

To label the pipings, you must first generate the piping network.
info-window

Explanation

If it is not possible to generate a piping network, e.g. because of a negative intended slope or because of incorrect height modifications etc., an error message in the form of a large X appears. The X shows the source of the error and can be requested with the MODEL INFORMATION function in the measurement manager. The message is output in the info window.
pat_info_

You must correct or redraw at these points.
Each X can be removed again through selection and deletion.
