Create wall

	Construction parts toolbar
	AR Objects menu > Wall

When you click the CREATE WALL function, the settings of the most recently drawn wall are active and the path of the wall can be drawn immediately. Depending on the selected setting for the ENTRY MODE option, the first wall query appears in the entry line, e.g. 1st axis point.

TIPP

Draw complex walls in multiple pieces, especially if the top edge of the wall will intersect the roof.

TIPP

Demolition wall
You can define demolition walls with a wall height of "0". These are not displayed in the 3D view. The height reference must be set to parapet so that the height of "0" can be specified.

Create wall

Workshop

Launch the CREATE WALL function.

Set the type of wall entry in the property bar to "Create wall by polygon".

Now draw the wall axis. Later you will define whether this will become the wall's middle, outside, or inside contour. To end wall entry, click again on the last point.

Now define the direction in which the wall should be drawn. Move the mouse to the centre of a wall segment, to one side or to the other. Once you have reached the correct position, confirm by left-clicking.
Keep in mind that the wall thickness is always modified from the axis outwards. You can move the axis later using the MOVE WALL AXIS function.

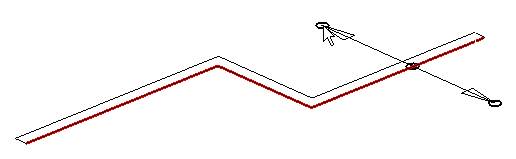

Contour exterior

Contour centred

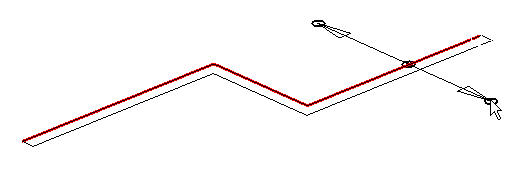

Contour inside

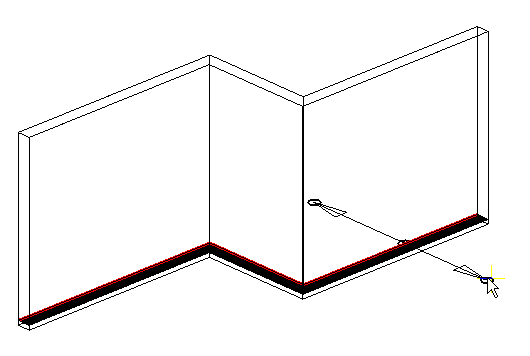

Confirm the position by left-clicking.

The function remains active. You can begin with the next wall right away.
