Functionality

A model must be available in order to calculate the quantities. Using the function CALCULATE QUANTITIES the masses of the model are written with respect to storey and structure to the database. Quantities of the complete model are always calculated, including the currently hidden objects.
The quantified masses are displayed in the Quantities Manager.

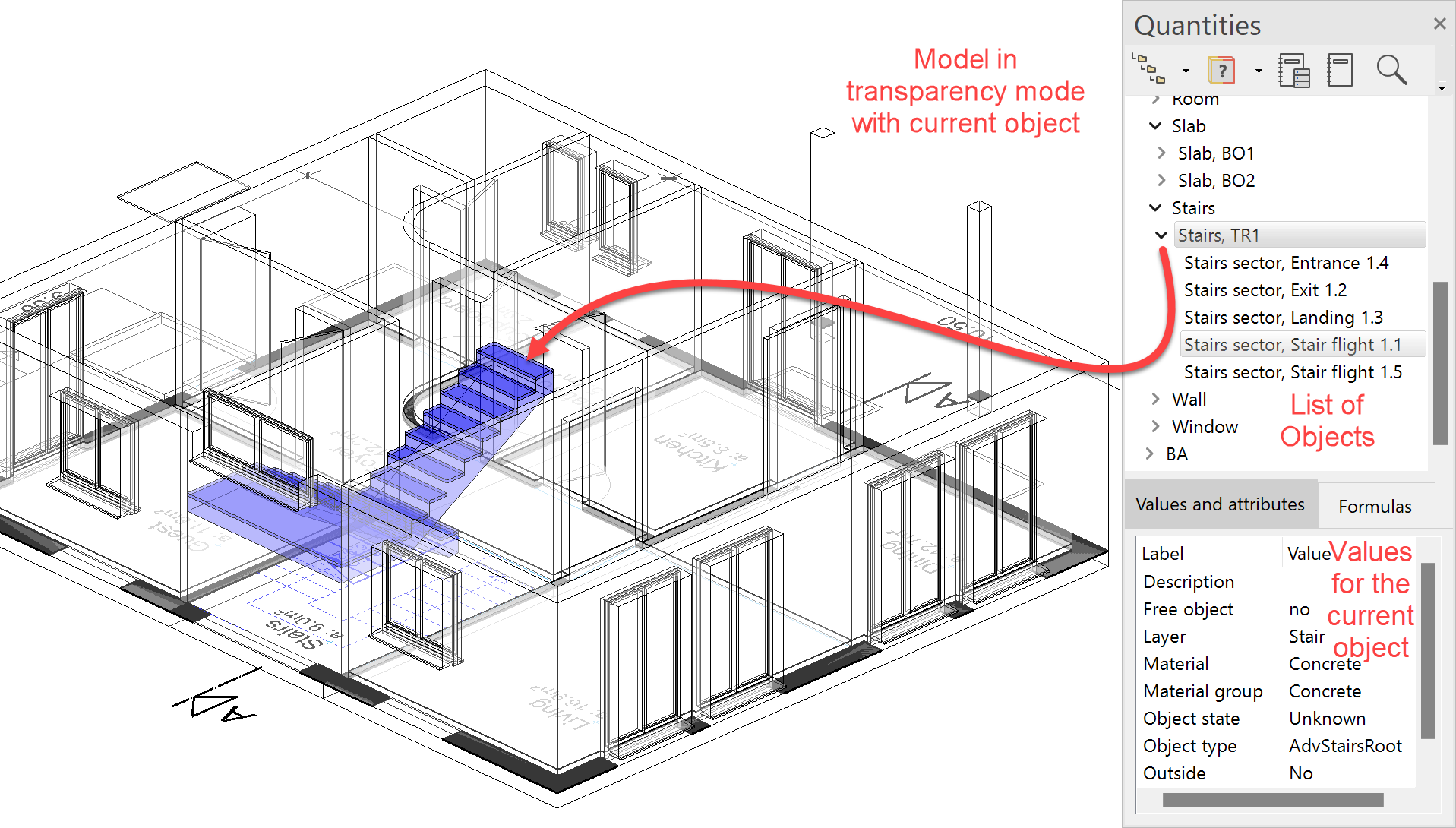

Objects can be selected in the graphics window or in the quantities manager. The values of the current object are displayed. In order to enhance the visibility of the objects inside the model, the model is switched to Transparency mode when the quantities manager is shown.
transparency-mode-sample

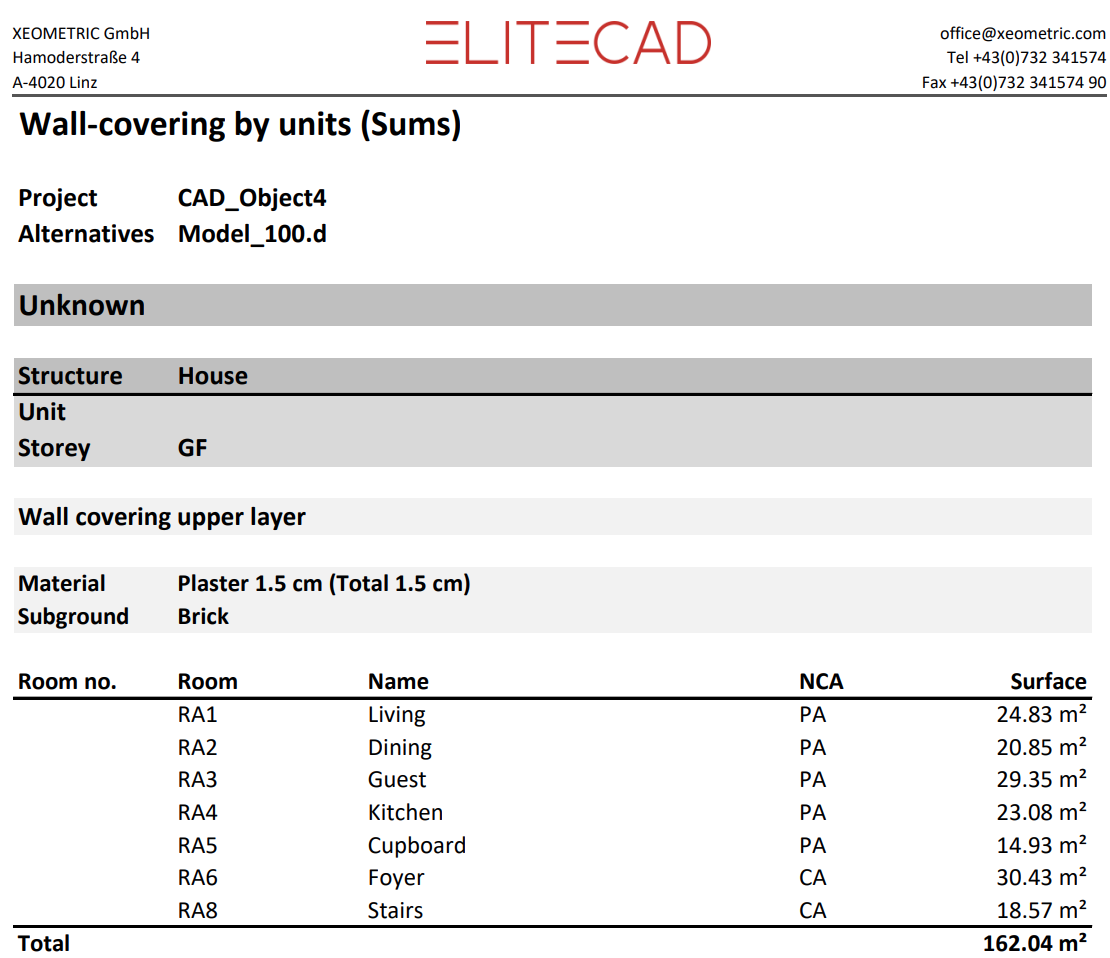

From the quantities manager, the settings can be accessed and various types of Excel reports can be displayed. The Quantities manager provides a dialog for project management and maintaining master data.
quantites-manager-report

Sample model and course unit for calculating quantities

Tip

In order to obtain a better understanding of the quantities and master data prior to making adjustments to the settings, it is recommended to load and calculate the quantities of the sample model from the project CAD_Object_Quantities.
The quantities calculation using this model is described in detail in the course unit Quantities.
