Course unit - Extended construction functions

Table of Contents

Modify floor contour
Create dormer
Applying textures
Copying / rotating
Column
Banister
External stairs
Intermediate landing (Free slab)
Porch (Gradient slab)
Porch roof
Retaining wall
Wall with inclined upper edge
Modify wall ending
Light shaft (Library part)
3D object for light shaft
Top views of components
Surrounding area (Horizontal over value)
Surrounding area (Inclined by 3 points)
Surrounding area (Definition points in 3D)
Surrounding area (Incline same as existing surface)
Assign layer
Modify layer
Surrounding areas
Save

Preperation

Workshop

In this course unit, we start with the project status that you created in course unit 3 or you use our example supplied (CAD_Object3). First, load the project.

1. First, load the project.

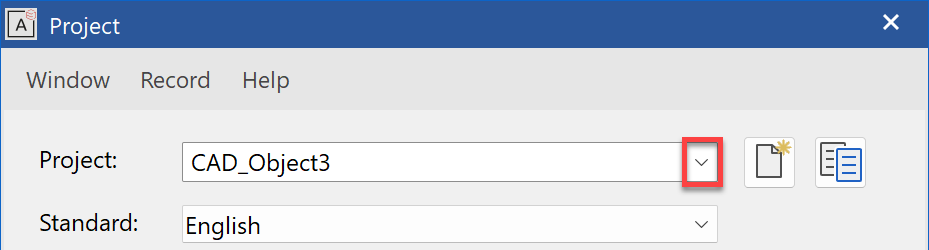

2. Open the project settings.

   Existing model from course unit 3:


   Without model from course unit 3:


   Select the relevant project and confirm with


3. Load the corresponding model file with the menu FILE > OPEN.

   Select the model and open it.

   The opened model should have this state.
